P2-408CS two colors closed cup pad printer

2 year ago

21 0 

10 year

Product details

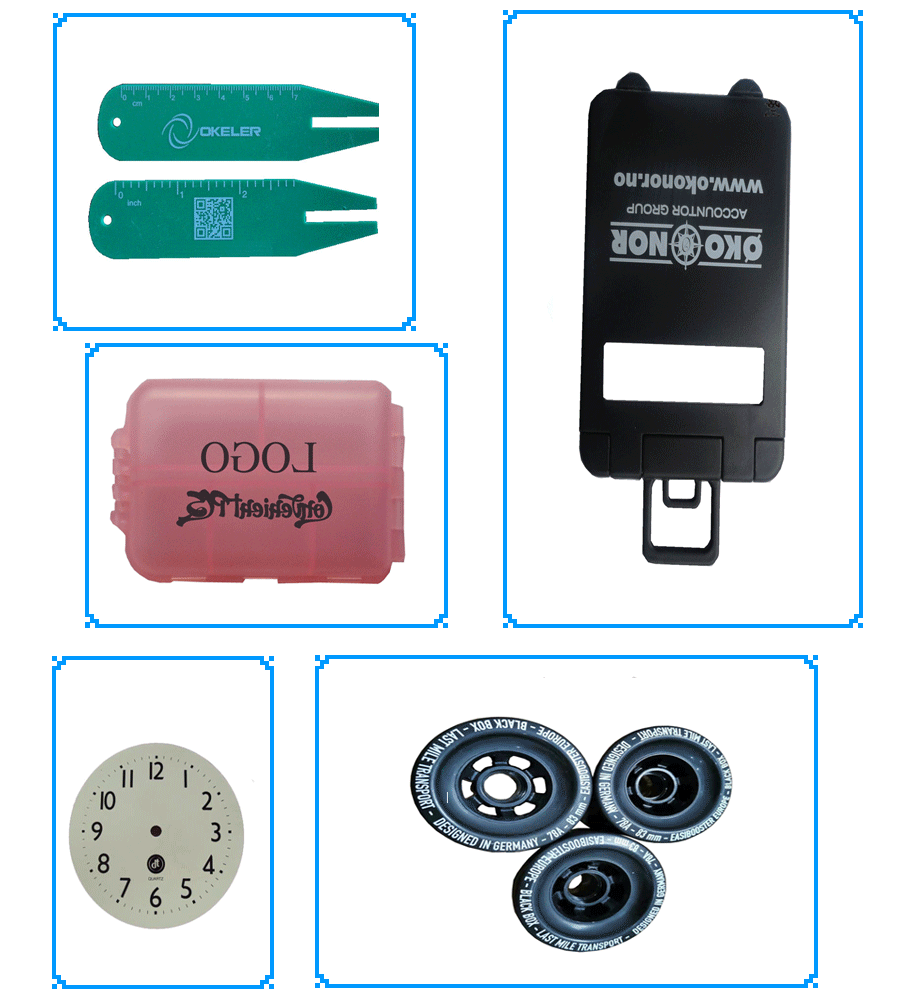

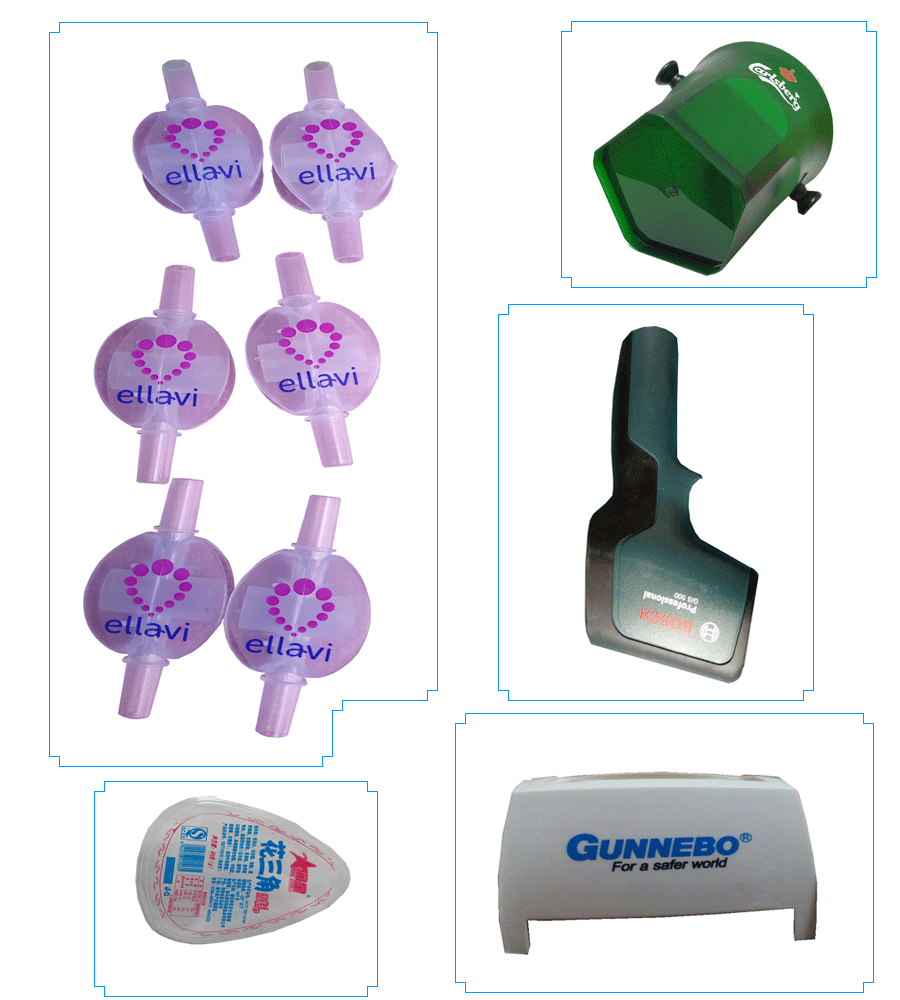

Samples

The two-color shuttle pad printer is a pad printer whose workbench can be continuously switched between two printing positions. It can print two different colors at two printing positions respectively and is the most cost-effective pad printer. The main features of this shuttle pad printing machine are:

1) It adopts a touch screen operation panel, which makes parameter setting more convenient;

2) The workbench adopts pneumatic control, and the positioning area is high;

3) It adopts an ink cup structure, which is environmentally friendly to the operator;

4) The two-color printing system can perform single-color and two-color pad printing on the product.

The two-color shuttle pad printer is widely used in the printing of hardware, electrical appliances, tools, electronics, toys, gifts, automotive supplies, cosmetics, crafts, office supplies, hotel supplies, daily necessities and other products.The structure of the two-color shuttle ink cup pad printer:

Two colors closed cup pad printer with shuttle//Parameter
P2-408CS	P2-410CS
Max. plate size: 100×200 mm; Max. worktable area: 125×200mm; Cup diameter: Φ90mm; Max. printing speed: 1000pcs/h; Printable color :2; Max printing area: 85×85mm. Shuttle stroke: 125mm	Max. plate size: 100×250mm; Max. worktable area: 125×200mm; Cup diameter: Φ90mm; Max. Printing speed: 900pcs/h; Printable colors:2; Max printing area: 85×130mm. Shuttle stroke: 125mm
Works supply	110V-220VPower supply; 5-7Bar Compress air;
H.S.Code	8443198000
Two colors pad printer with shuttle//Advantage
Microcomputer program controlling operating technique ; Streamline design ensure dexterous Appearance impressions; Coin aluminum structure frame coated Gross-Green color paint; Shuttle working table installed to get more precision overprint; Independency pressure adjustment of pad press-printing and picking up ink; Either testing or running mode to operate ; Closed cup to store and coating ink , save ink and protect environment Automatism digital count function; Double colors pad printing with drying through blowing hot air: Ten grade printing speed setting, auto, semi-auto, testing operation mode setting; Sealed cup driven by independent cylinder , ink remove clean

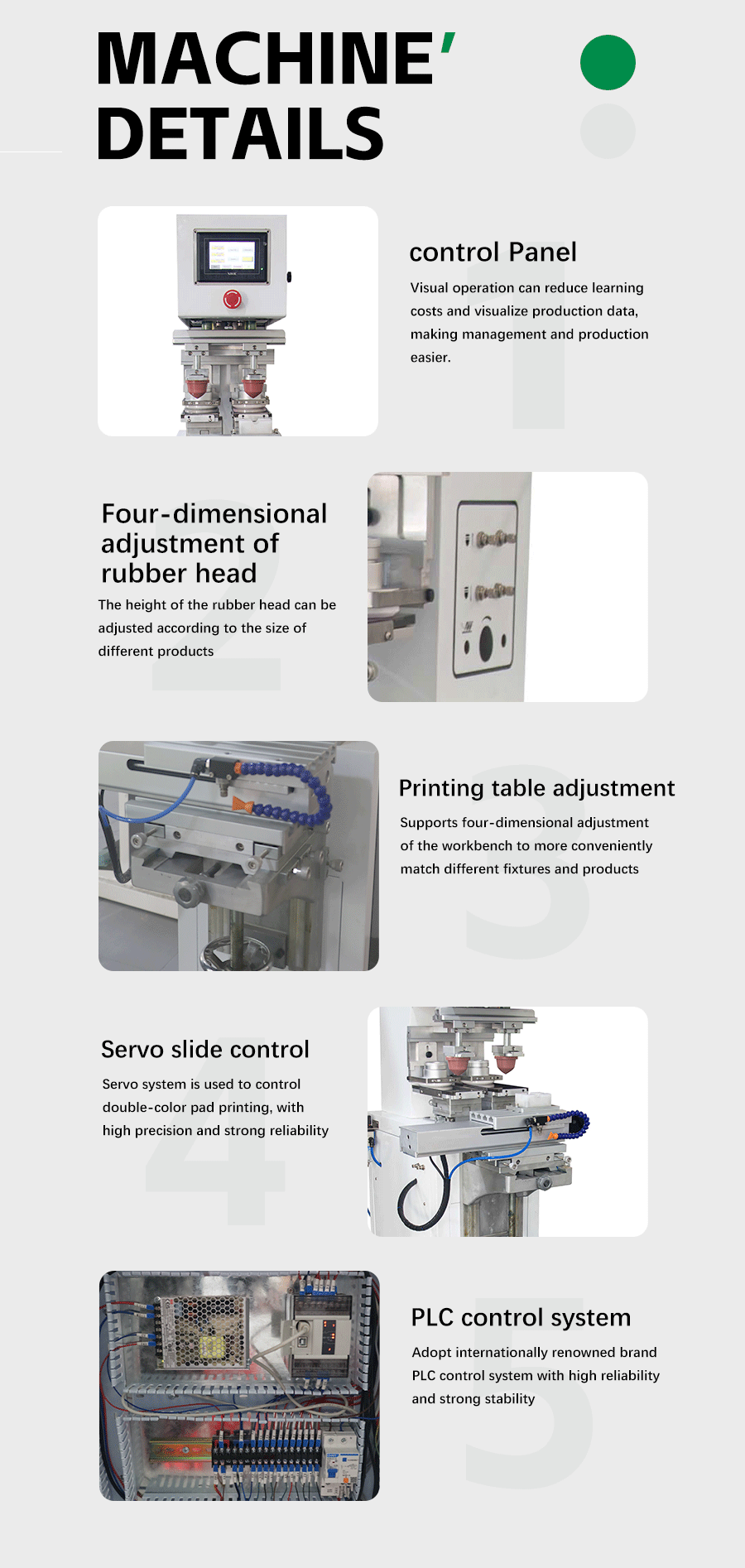

Details

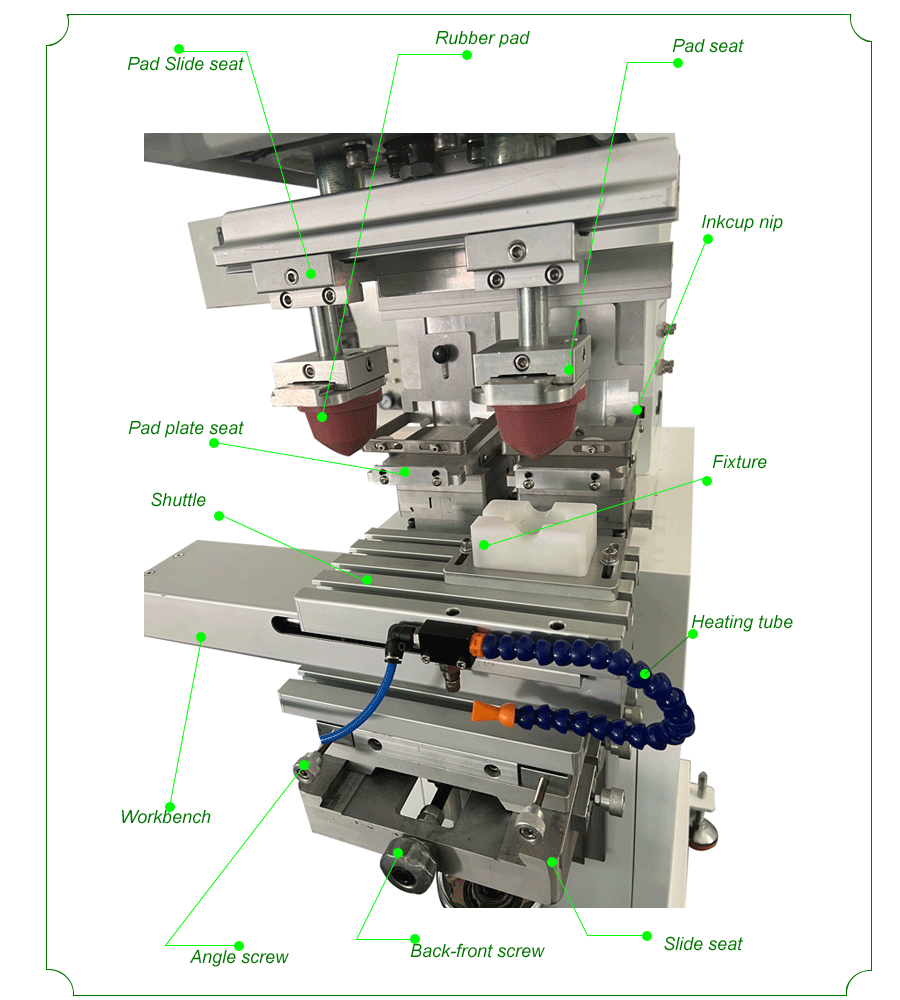

Pad printer //structure

1) Shuttle workbench: The shuttle workbench has two workstations, and the fixture and product can change positions between the two workstations to achieve two-color printing;

2) Operation panel: It adopts a touch screen human-machine interface, which is easy to set parameters and convenient to operate

3) Oil cup structure: The ink is sealed in the oil cup, reducing VOC emissions, environmentally friendly and reliable;

4) Pad movement: The front and back up and down of the pad head are pneumatically controlled, and the operation is stable and accurate;

The two-color shuttle ink cup pad printer is the most popular pad printer, which can realize single-color pad printing and two-color pad printing of products. It has a wide range of applications and powerful functions. It is widely used in hardware, electronics, toys, gifts, crafts, office supplies, automotive supplies, household appliances and other industries.
