PS-4060PVS servo plain screen printing machine
4 year ago
Servo Flat Precision screen printer with vacuum table usage

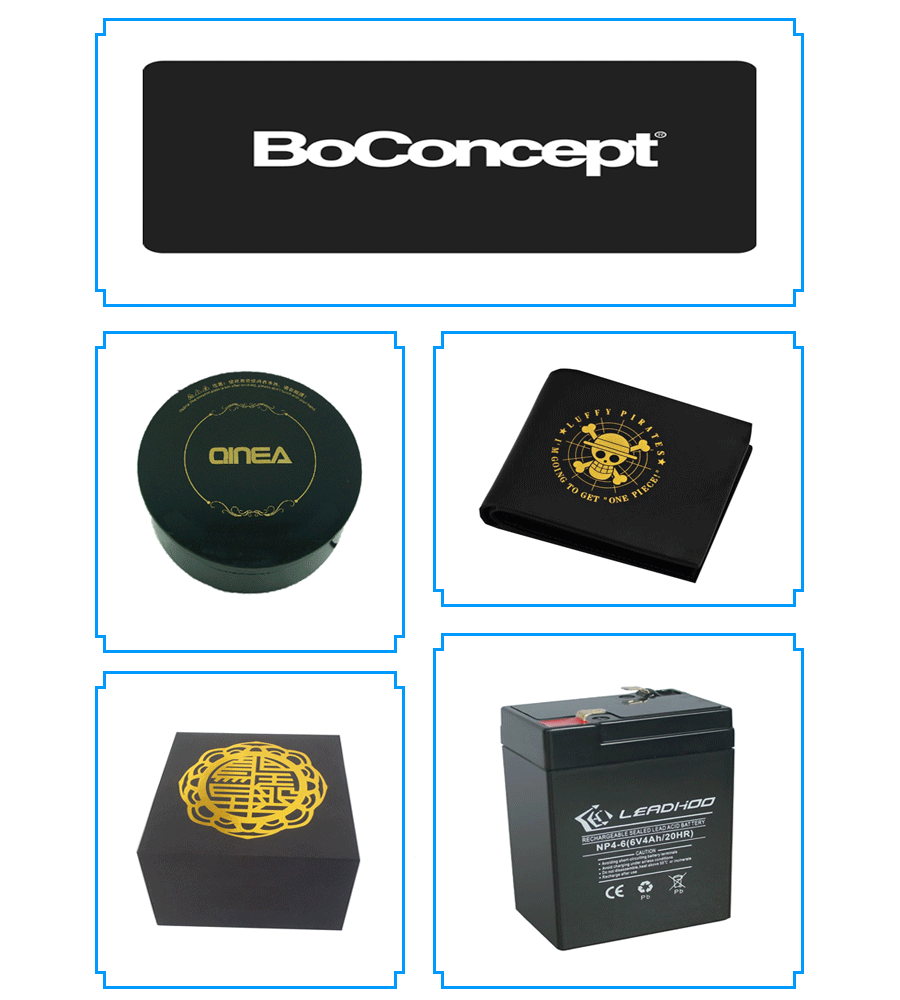

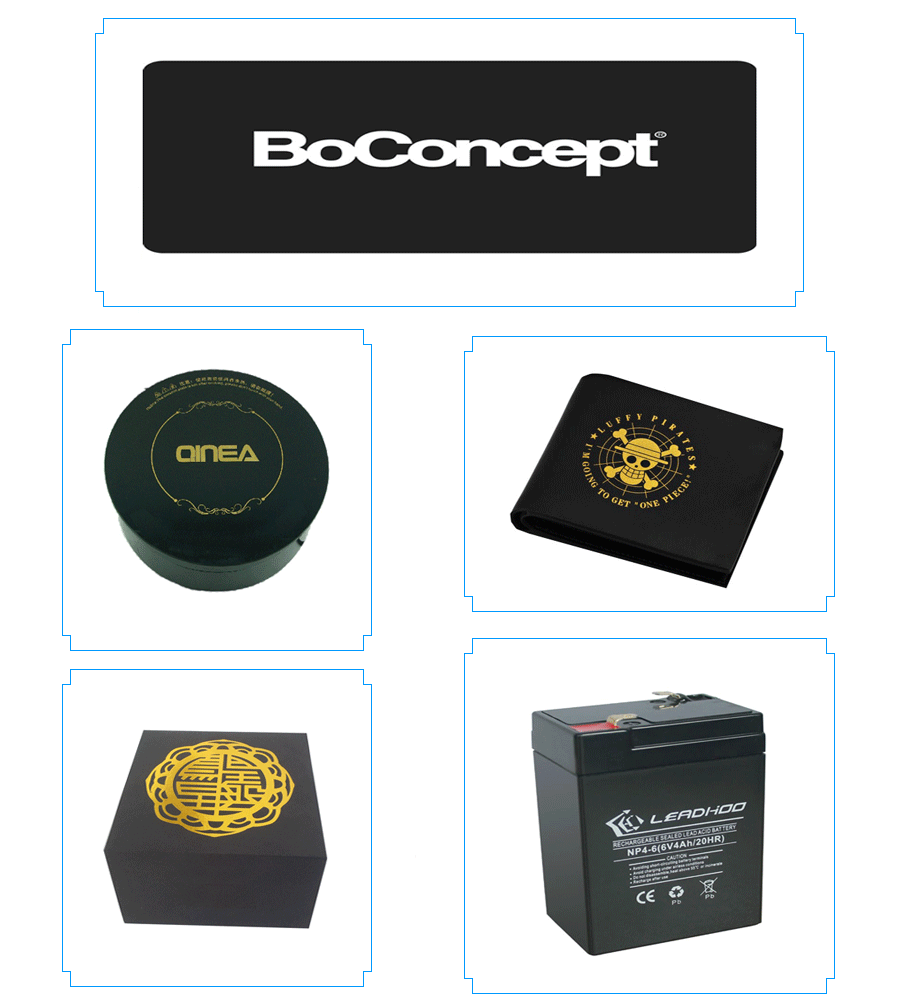

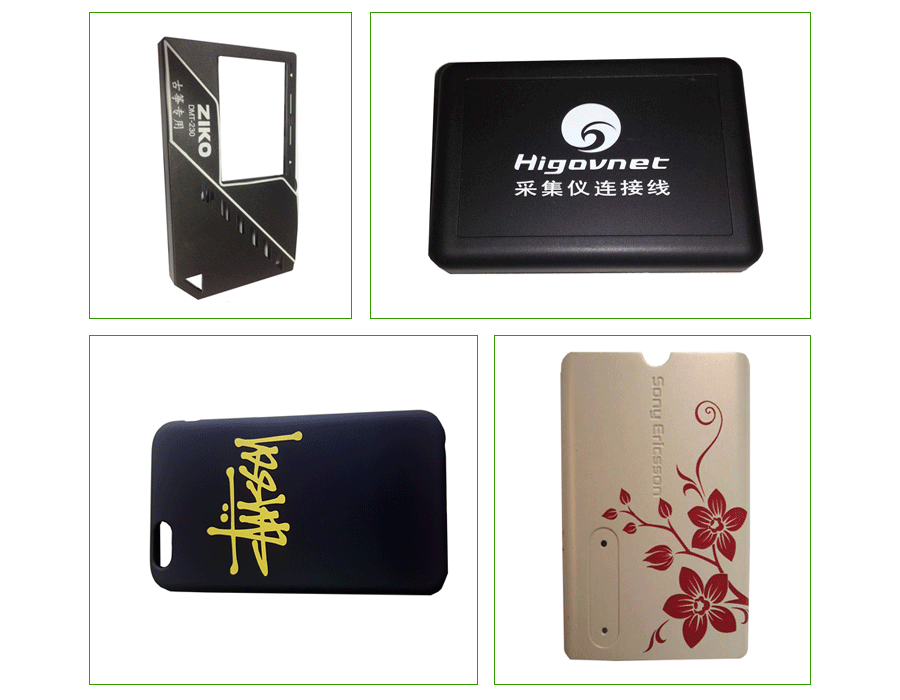

Compared with pneumatic screen printers, servo flat screen printers have higher precision, lower noise, faster speed, easier adjustment when changing different products, and easier data management. Servo screen printers can be used in any occasion where pneumatic screen printers can be used. Such as: mobile phone shells, mobile phone lenses, shells, keyboards, and display screens of desktop computers and laptops; plastic stationery, gift boxes, metal signs, circuit boards, membrane switches; home appliance panels, office supplies, hotel supplies; decorative glass paintings, advertising paintings, posters, publicity paintings, UV packaging products; auto parts, car dashboards, interior trims, and body logos.
Servo Flat Precision stencil printing machine with vacuum table//Usage
-
- Fit printing soft and thin products such as paper, plastics film etc;
- With vacuum working table ensure adsorbing object when printing;
- Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
- Also widely used in Glass plate, Machine panel screen printing;
With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ; - Suitable for printing sheet-fed adhesiveness sticker;
- Suitable for printing water transfer label and heat transfer label through different process;
- Max Printing area: 300*400 mm;
- High Precision liner guide-way installed to control the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.
Servo Flat Precision screen printer with vacuum table//Parameters
| Max printing thickness: 150 mm; | 150 mm |
| air consumption | 60 liter/min |
| dimension of worktable | 400*500 mm |
| max. printing area | 300*400 mm |
| max. printing speed | 1000 pcs/h |
| max. frame dimension | 500*620 mm |
| compress air | 5-7 bar |
| stoke of cylinder up and down | 160 mm |
| stoke of squeegee | 400 mm |
| table precision | 0.05 mm |
| rang adjustment of table | 10 mm |
| package dimentsion | 950*880*1620 mm |
| gross weight | 183 KG |
Servo Flat Precision screen printer with vacuum table //Advantage
- High-precision linear guide-way control lifting and dropping of screen plate and rubber squeegee;
- Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
- Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
- Screen form Clamping device free to adjust to fit different sizes of screen;
- Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
- Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
- Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
- Microcomputer program control operations;
Catalog of servo flat screen printing machine
The Servo Flat Precision Screen Printer with Vacuum Table is a high-performance printing solution designed for precision, efficiency, and versatility in industrial and commercial applications. Unlike traditional pneumatic screen printers, this advanced model offers superior accuracy, reduced noise levels, increased speed, and simplified adjustments when transitioning between different product types. Its adaptability makes it suitable for a wide range of industries, from electronics to packaging, ensuring consistent and high-quality output across various materials and formats.
One of the standout features of this printer is its vacuum table, which securely holds delicate or thin items such as paper, plastic films, and UV-coated surfaces during the printing process. This ensures stability and prevents shifting, resulting in clean and accurate prints. The combination of a servo motor system and a linear guide-way mechanism allows for precise control over the movement of the squeegee and screen frame, enhancing the overall print quality and reducing errors.
High Precision Printing
The Servo Plain Screen Printer is designed to offer unparalleled precision for electric board applications. With its advanced servo motor technology, it ensures that inks are applied with pinpoint accuracy, minimizing waste and enhancing the quality of printed circuits.
Fast Production Speed
This screen printer significantly boosts production efficiency, allowing manufacturers to print on electric boards at high speeds without compromising quality. Its quick setup and adjustment features reduce downtime, making it an ideal choice for high-volume production runs.
User-Friendly Interface
Featuring an intuitive touch-screen interface, the Servo Plain Screen Printer is easy to operate, even for those with minimal technical skills. Operators can easily navigate through settings, adjust parameters, and monitor the printing process, ensuring a smooth workflow.
Versatile Printing Capabilities
Designed to accommodate a wide range of electric board sizes and types, this printer offers versatile printing solutions. It supports various inks and substrates, making it suitable for diverse applications in the electronic manufacturing industry.
Durable & Reliable Design
Constructed with high-quality materials, the Servo Plain Screen Printer is built to last. Its robust design ensures reliable operation over time, even in demanding production environments, providing manufacturers with a long-term, cost-effective solution.
