PS-3050PVSH slide table screen printing machine
4 year ago

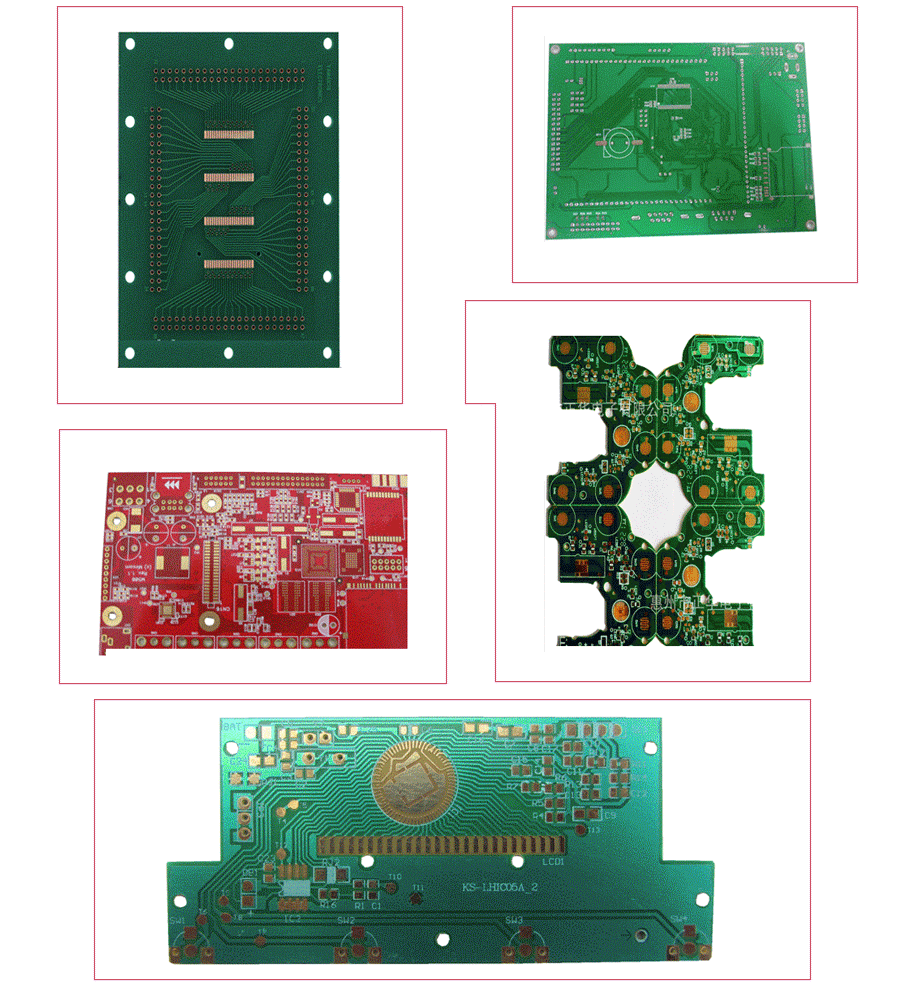

Samples
This high-precision flatbed screen printing machine features servo motor control for the main actions of the worktable's entry and exit, screen lifting and lowering, and squeegee movement. Guided by linear guides, it boasts a repeatability error of less than 0.05mm. The worktable is equipped with a fine-tuning device, allowing for precise adjustments in forward/backward, left/right, and angular directions. It is the preferred equipment for industries such as circuit boards, multi-color screen printing, and membrane switches.
Data
Precision servo screen printing machine with slide-table//Function
- Install movement table ensure operation more safety;
- Fit printing soft and thin products such as paper, plastics film etc;
- With vacuum working table ensure adsorbing object when printing;
- Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
- Also widely used in Glass plate, Machine panel screen printing;
With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ; - Suitable for printing sheet-fed adhesiveness sticker;
- Suitable for printing water transfer label and heat transfer label through different process;
- Max Printing area: 300*500 mm;
- High Precision liner guide-way installed to control the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.
Precision servo screen printing machine with slide-table//Application
- Widely used in Glass printing field;
- With UV curing machine, Can finish many UV special printing process for UV package industry.
- Suitable for printing Mobile windows ;
- Suitable for printing water transfer label and heat transfer label through different process;
- The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit
Precision servo screen printing machine with slide-table//Parameters |
|
| Max. Printing thickness | 150 mm |
| Air consumption | 80 Liter/min |
| Dimension of working table | 500×700 mm |
| Max printing areas | 480×680 mm |
| Max printing speed | 1000 pcs/h |
| Max frame dimension | 700×1050 mm |
| Stroke of cylinder up and down | 160 mm |
| Stroke of Squeegee | 700 mm |
| Table Precision | 0.05 mm |
| Rang adjustment of table | 10 mm |
| Package size | 1640×1400×1930 mm |
| Gross weight | 336 KG |
- Working table can be in-out automatically, operation more safe;
- High-precision linear guide-way control lifting and dropping of screen plate and rubber squeegee;
- Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
- Screen Form up and down movement of contact with the table, suitable for hand-placed and remove the product;
- Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
- Screen form Clamping device free to adjust to fit different sizes of screen;
- Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
- Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
- Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
- Microcomputer program control operations;
- 4-Digit auto counter; to facilitate the measurement of production efficiency.
