M-50250UVC UV drying machine

4 year ago

31 0 

10 year

Product details

How to use UV tunnel?

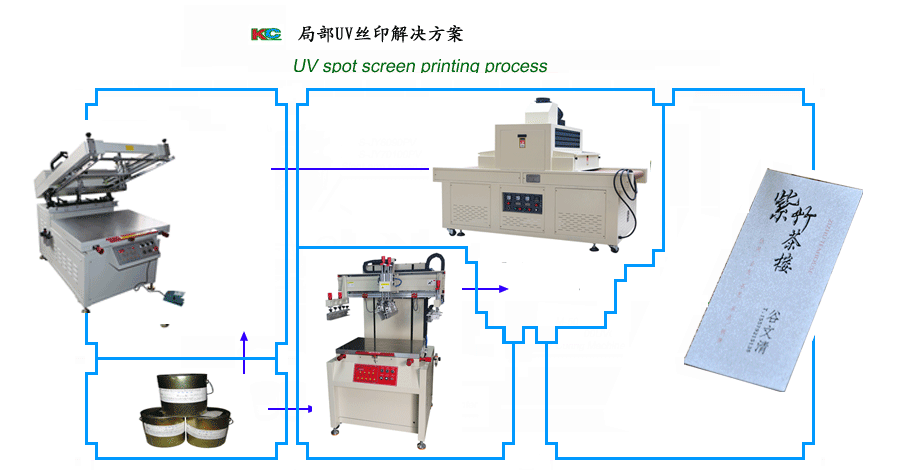

UV curing machine is usually used in conjunction with screen printing machine or offset printing machine. In order to make production continuous, a rotating conveyor belt will be installed at the feed end of the UV curing machine. The height of the conveyor belt will be adjusted to keep it level with the workbench of the screen printing machine or offset printing machine, so that the printed products can be transferred to the UV curing machine horizontally, reducing the trouble of manual intervention. Its effect is similar to that of a robot, but its fluency is faster than that of a robot.

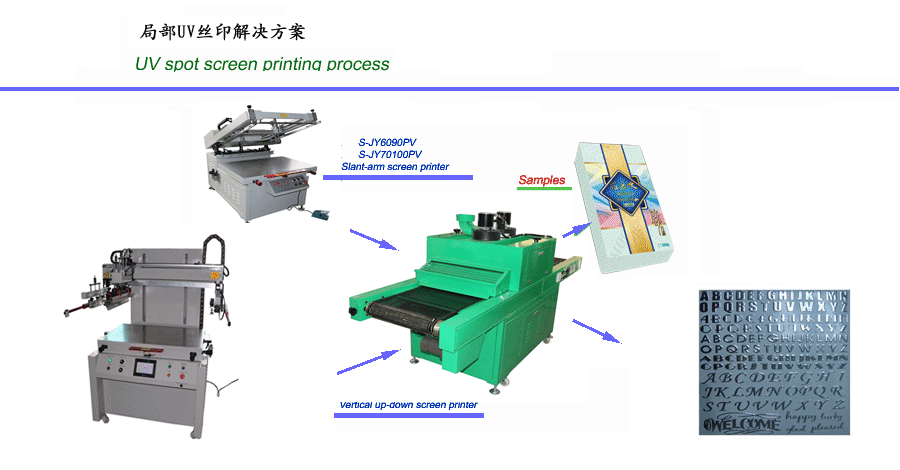

This curing machine can be used with screen printing machines and offset printing machines manufactured by different manufacturers. Whether it is an oblique arm screen printing machine, a vertical lifting screen printing machine, or various types of offset printing machines, it is the first choice. 366

Description of UV dryer with rotary arm

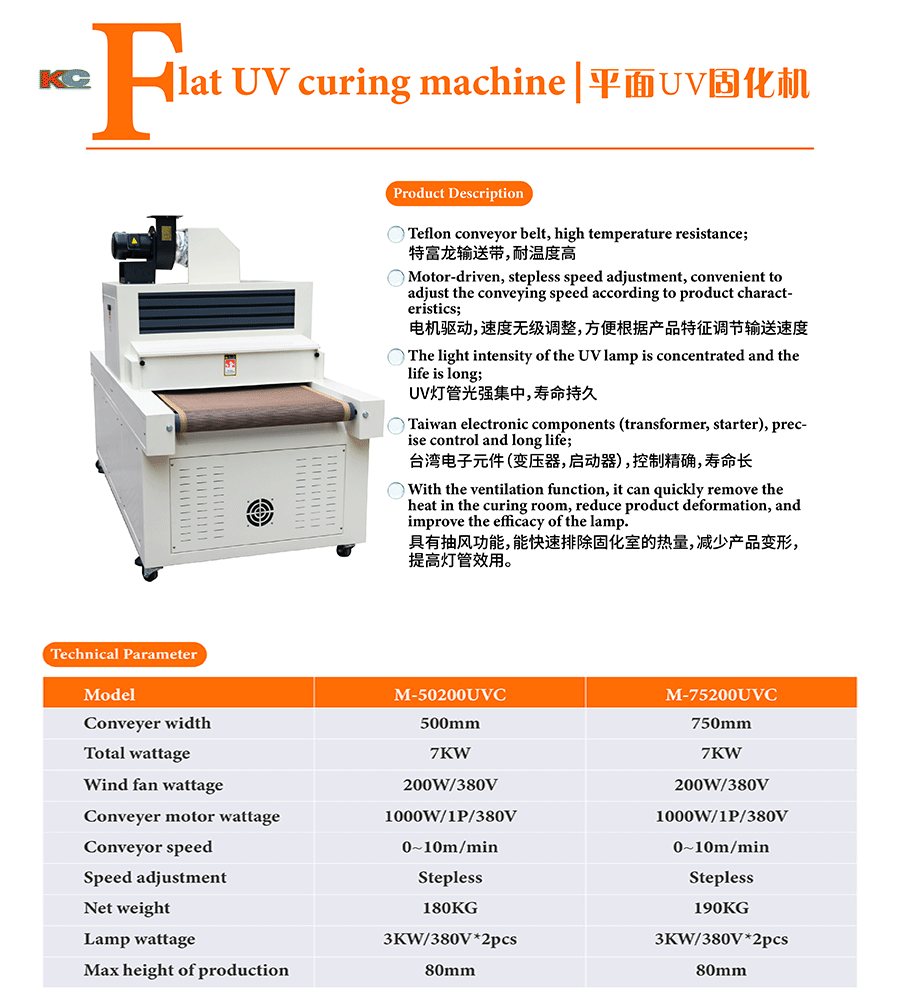

Flat UV Drying Machine//Parameter
Technical parameters	M-50200UVCR Conveyer width:500mm; Total wattage:7KW; Wind fan wattage:200W/380V; Conveyer motor wattage:1000W/1P/380V; Conveyor speed:0~10m/min; Speed adjustment:Stepless; Outer dimension:2000×660×680mm(l×w×h); Net weight:180KG; Lamp wattage:3KW/380V×2pcs; Max height of production: 80mm.	M-75200UVCR Conveyor width: 750mm Max curing Objects:750×60mm(W×H); Total Wattage:7KW; Fan Motor Wattage:1000W/380V; Transport Motor wattage:1000W/1P/380V; Conveyer speed:0~10m/min; Speed adjustment mode:stepless; Lamp wattage:3KW/380V×2pcs; Max objects height: 80mm Net weight: 190kg
Works supply	Power: 3 phase 380V.
Package list	Package Dimension: 2.170×1.150×1.420m; Gross weight: 326KG; CBM:3.54361
H.S.Code	8443198000
Certificate	CE

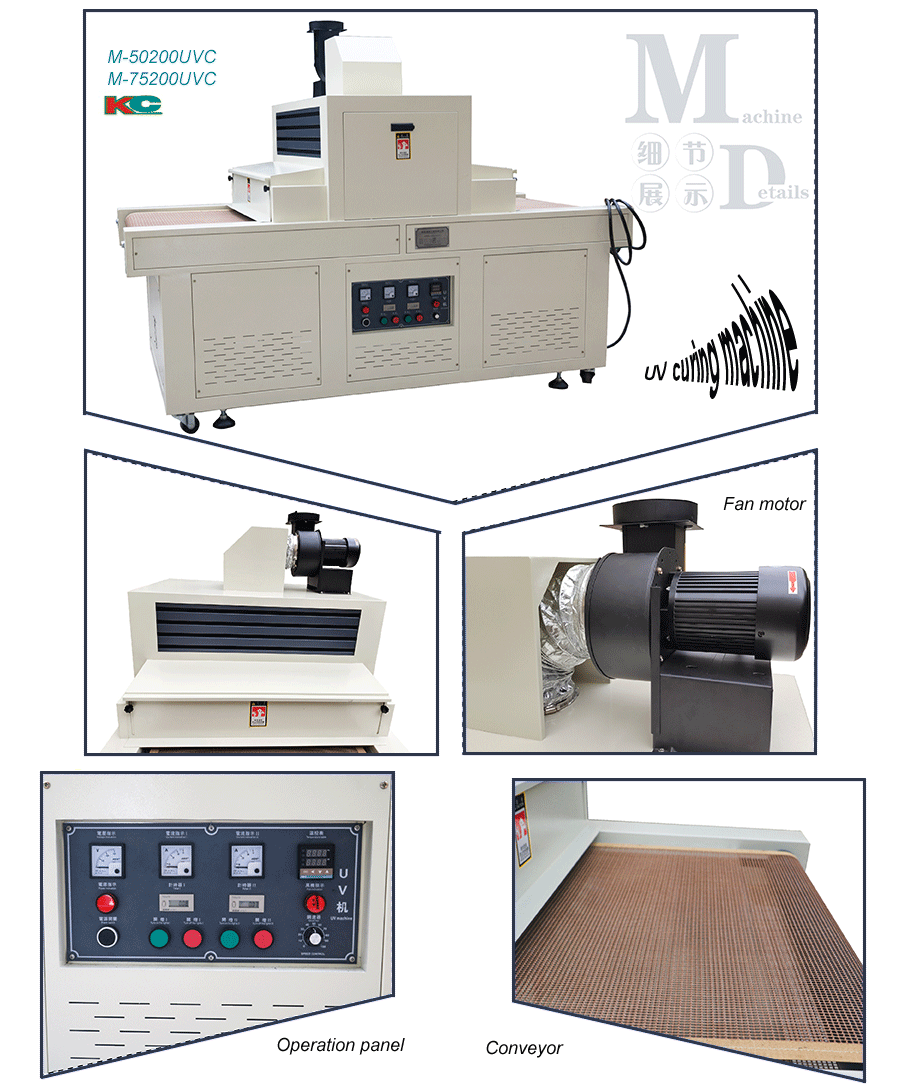

Details of UV oven with rotary arm

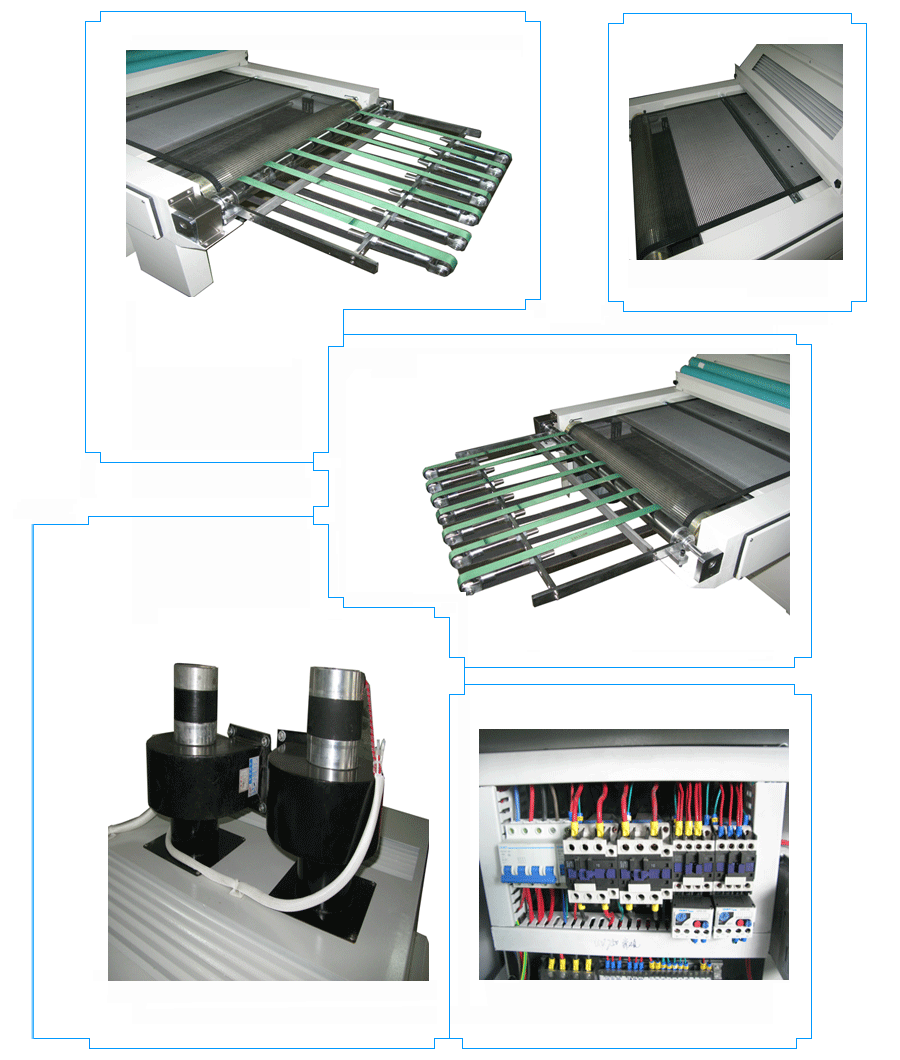

372

The conveyer speed can adjustment according to the products drying condition;
Conveyer belt mabe by macromolecule materials;
Famous brand UV lamp installed ;
Cooling fan installed on the side to remove the heat in curing chamber;
Worked on Table, save the space;
conveyer belt and resist high temperature. function.
Electrical components and control systems using Famous brand to ensure stable Curing quality.
