PS-6090PE motor circuit screen printing machine
3 year ago
Electric circuit silk screen printing machine
The semi-automatic flat screen printing machine usually has three actions, the upper and lower of the screen, the left and right of the scraper and the ink return knife, and the up and down of the scraper and the ink return knife. The actions of the scraper and the ink return knife are just opposite, and it is simpler and more reliable to use pneumatic control. The up and down motion of the screen and the left and right motion of the scraper ink return knife can be controlled either pneumatically or by motor. We call the screen printing machine that uses pneumatic control for these two actions as a pneumatic screen printing machine, and the way that these two actions are controlled by a motor is called an electric screen printing machine. The precision of the electric screen printing machine is higher than that of the pneumatic screen printing machine.
In addition to the difference in control power, in order to further improve the accuracy of the screen printing machine, linear guides are also used for the guide shafts on the upper and lower sides of the screen and the left and right of the scraper, which further reduces the running error. The other is the use of a touch screen operation panel, which is the dataization of the operation and adjustment of each action, which is convenient to reasonably adjust the parameters used in the silk screen printing of different products.
Data
This screen Printer is big enough for circuit board.
Strong automatic vortex - type vacuum pump, close adsorption, to ensure multi - color chromatography precision.
Unique design of the off-grid device to ensure that the printing pressure balance and stability, to prevent large-scale products printing sticky version and race network.
This series plain screen printer uses motor-driven system. Vacuum worktable could fix some thin plain products.
Usage
|
Technical Parameters
| Item | PS-6090PE | PS-70100PE | PS-80120PE | PS-90140PE |
| Printing height(mm) | 50 | 50 | 50 | 50 |
| Air(liter/min) | 55 | 55 | 55 | 55 |
| Worktable dimension(mm) | 700×900 | 800×1100 | 900×1300 | 1000×1500 |
| Max. frame size(mm) | 850×1050 | 950×1250 | 1050×1450 | 1150×1650 |
| Max. printing area(mm) | 600×800 | 700×1000 | 800×1200 | 900×1400 |
| Max. printing speed(pcs/h) | 800 | 700 | 700 | 600 |
| Max Stroke of up-and-down frame(mm) | 200 | 200 | 200 | 200 |
| Max stroke of Squeegee(mm) | 800 | 1000 | 1200 | 1400 |
| Squeegee motor wattage(w) | 200 | 200 | 200 | 200 |
| Table Precision(mm) | +-0.03 | +-0.03 | +-0.03 | +-0.03 |
| Package dimension(m) | 1.51×1.26×1.83 | 1.51×1.36×1.83 | 1.46×1.69×1.82 | 2.07×1.79×1.82 |
| G.W.(kg) | 541 | 570 | 600 | 630 |
| Works supply |
110 V-220 V Power supply; 5-7 Bar compress air |
|||
Advantage
- High-precision linear guide-way control lifting and dropping of screen plate and rubber squeegee;
- Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
- Screen form up and down movement of contact with the table, suitable for hand-placed and remove the product;
- Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
- Screen form Clamping device free to adjust to fit different sizes of screen;
- Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
- Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
- Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
- Microcomputer program control operations;
- 4-Digit auto counter; to facilitate the measurement of production efficiency.

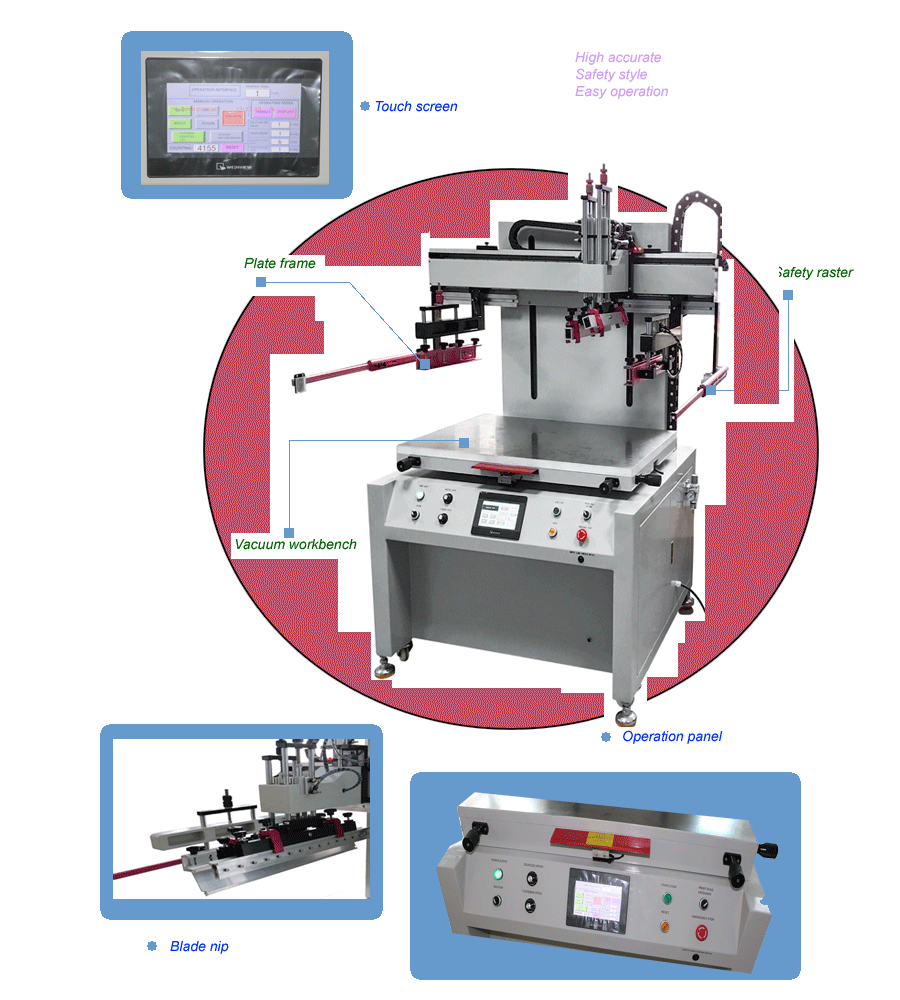

Structure
