Pad printer for cups
12 month ago
One color pad printer//Usage and characters
- With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
- With coin aluminum structure ensure more stabilization and long life.
- Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
- Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
- Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
- Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;

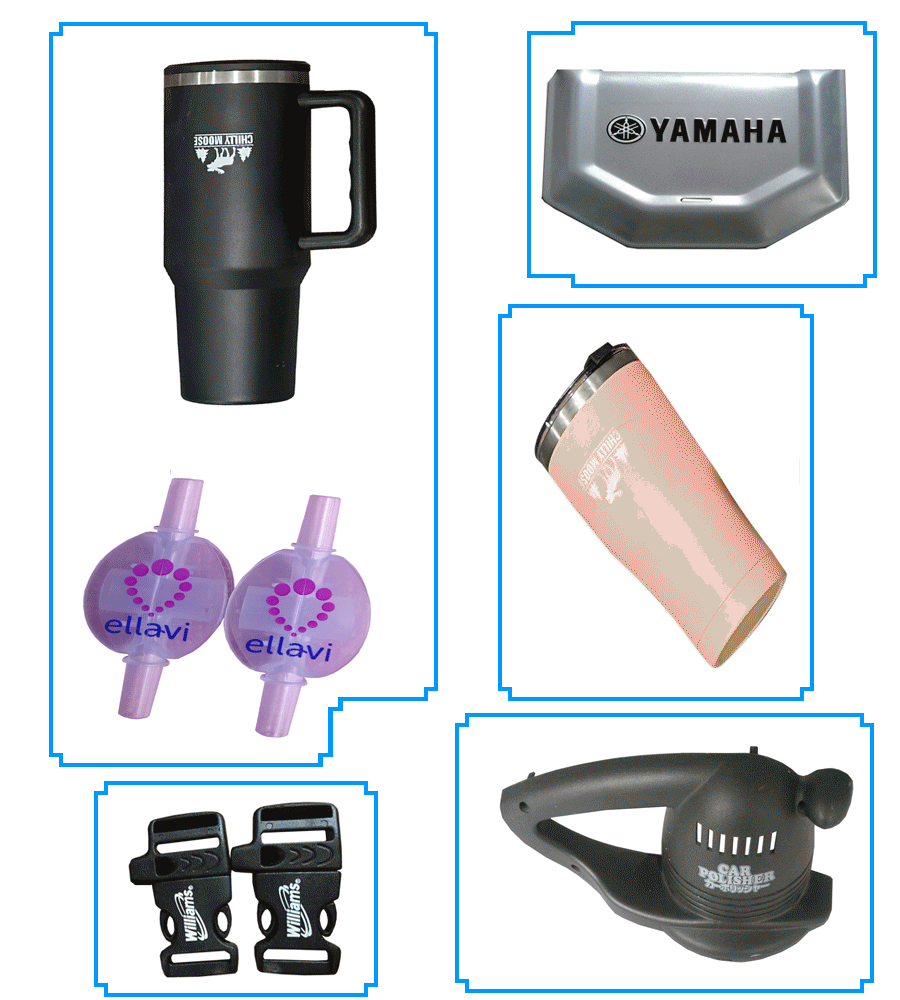

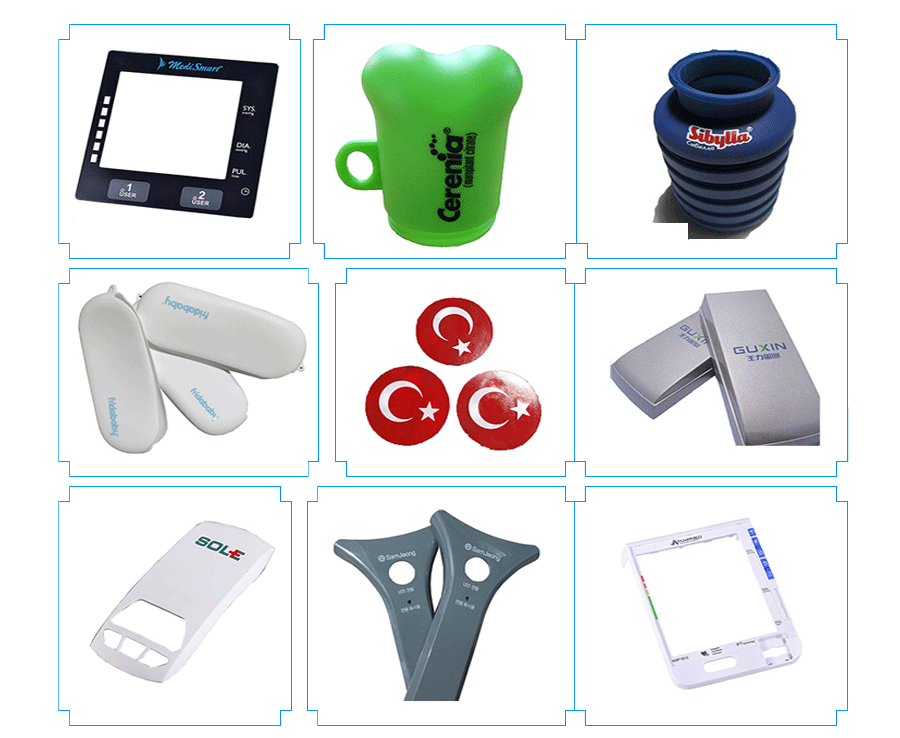

Application fields
Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork,office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial

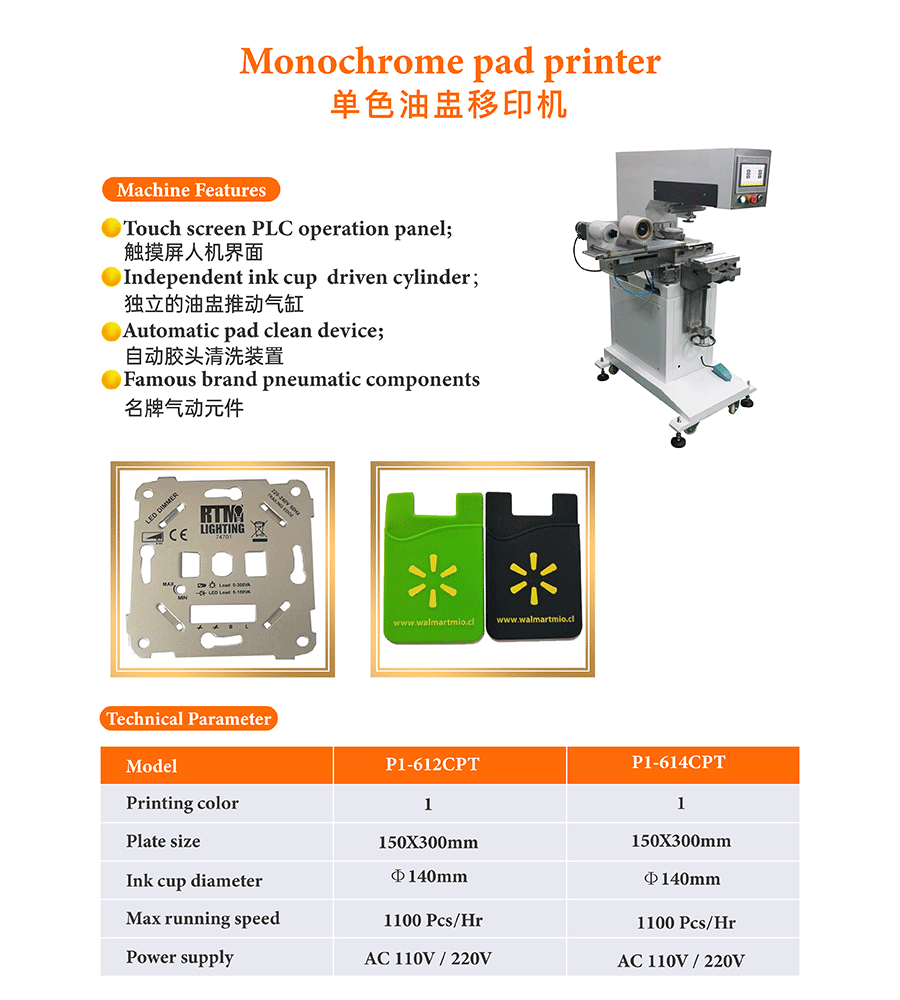

One color pad printers //Parameter
|
P1-612CPT
|
P1-614CPT
|
Catalogue

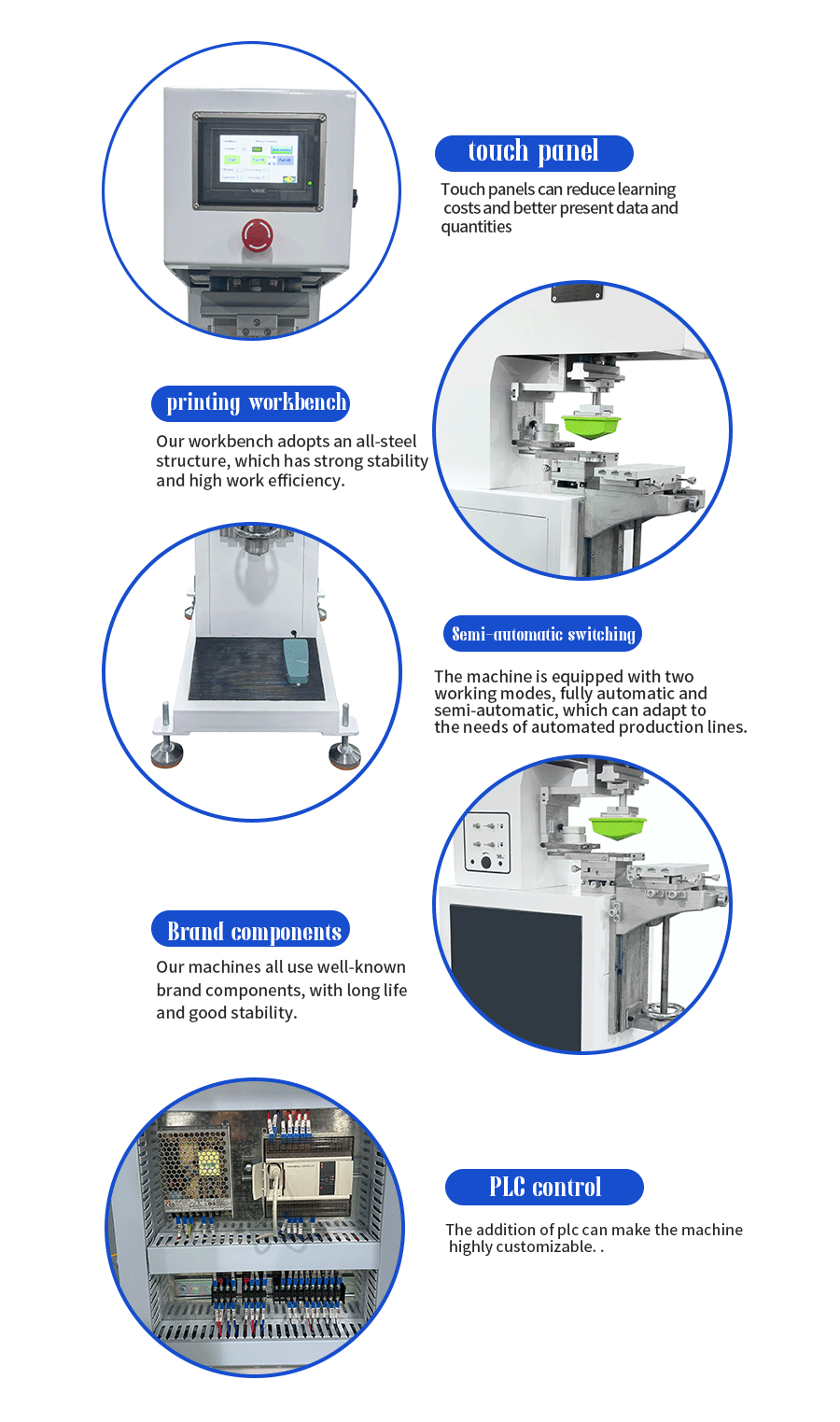

Details-advantage
- Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
- T-slot structure, easy installation of fixtures and products;
- PLC and touch screen program control, the movement is more accurate and reliable;
- Structure using die-casting aluminum, lightweight and solid.
- Independent Rubber pad up and down stroke and speed adjustment function;
- Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
- Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
- Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
- World famous pneumatic components to ensure the long service life of machine;
- Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.
- Automatic pad clean device installed

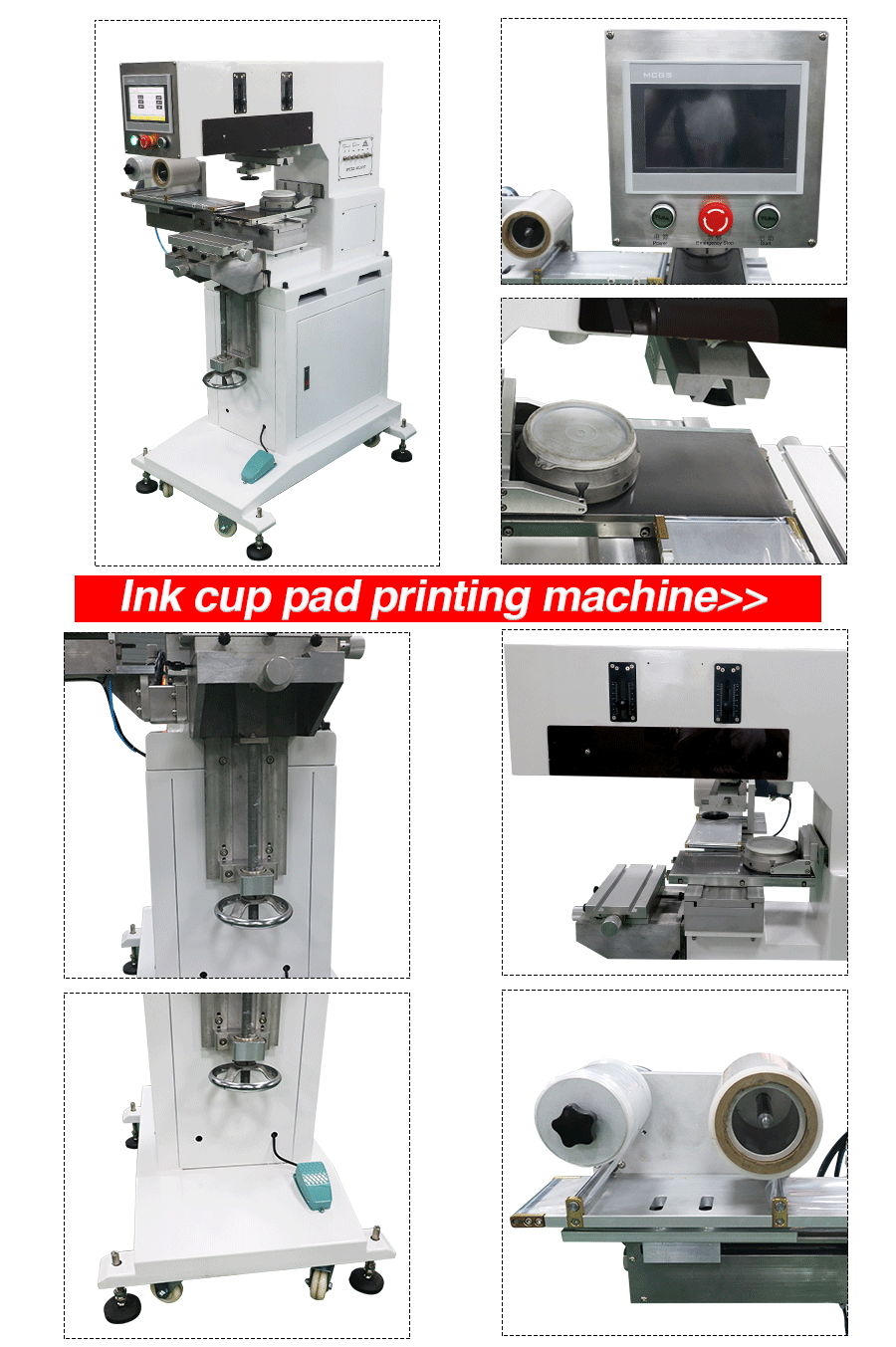

Structure
The closed cup pad printing machine with automatic pad cleaning device is an advanced equipment used in pad printing process. The ink cup pad printer transfers the ink from the steel plate to the pad made of silicone rubber, and then the pad transfers the ink to the surface of the object to be printed. The automatic pad cleaning device moves the pad to the cleaning area through automated program control after the pad has completed one or more printings. The pad is cleaned with adhesive tape to remove the ink, dust and other impurities remaining on the pad to ensure that the pad can be printed in a clean and dry state for the next time.
