Product details

Throughout the atomization process, from the beginning to the end of the spray, the size of the droplets produced by the atomizer remains highly uniform. No matter how the ambient temperature and humidity change, or what the battery power level is, it can accurately maintain the stability of the droplet size.

The nasal spray nebulizer chip utilizes piezoelectric ceramic technology to atomize liquid medication into 3–10 micron mist particles, optimized for nasal mucosa adhesion to ensure drug deposition in sinuses and upper airways, featuring low irritation and silent operation.

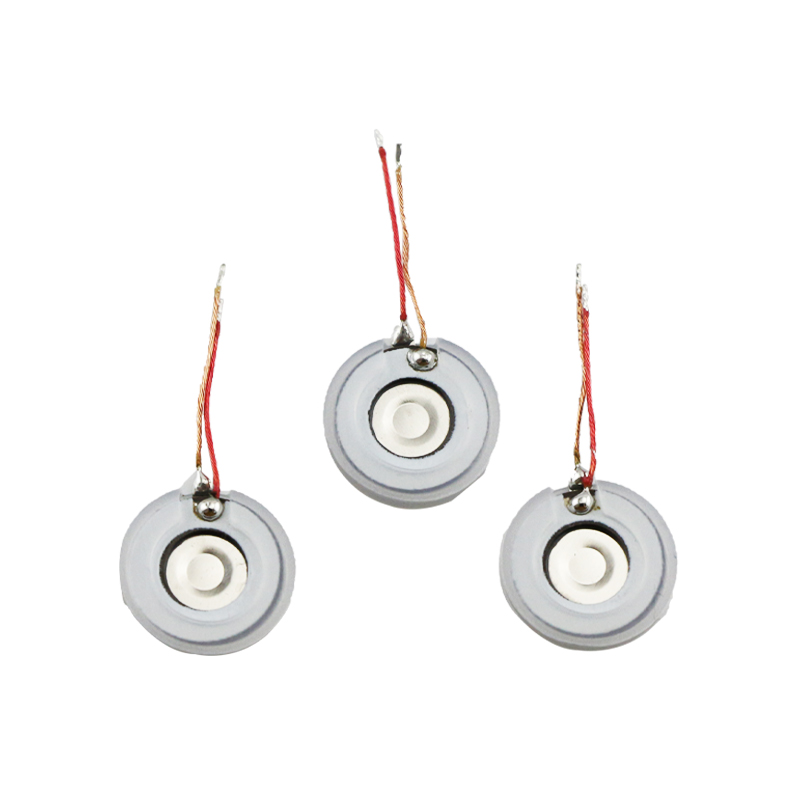

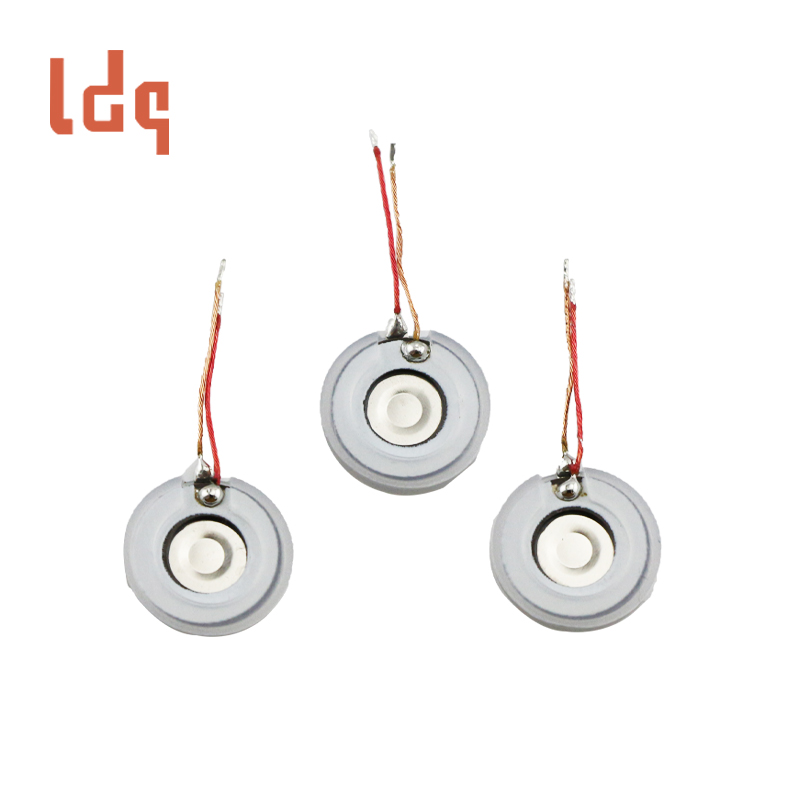

Nasal spray atomizer atomizer plate Product Specifications

The atomizer product model is 13.8 - ldq2d15, the product size is 13.8 mm in diameter and 0.65 mm in thickness, the rubber ring size is 15 mm in diameter and 2.5 mm in thickness, and the resonant frequency is 150±10Khz. Its atomization volume is 80ML/H, the recommended power is 1.2W, the product aperture is 14-16UM, and the number of holes is 540.

Ceramic Atomizer Plate Features

The atomization is uniform, the particles are small and concentrated, and can reach deep into the nasal cavity, improving the utilization rate of drugs.
With the electronic control system, the dosage can be precisely controlled, which is suitable for scenarios where quantitative administration is required, such as hormones and vaccines.
Low noise and low heat generation during operation prevent drugs from denaturing due to high temperature.

Atomizer Plate Industry Applications

Nasal administration: for allergic rhinitis, vaccines, antibiotics.
Respiratory diseases: aerosolized drugs are inhaled through the nose to treat asthma or COPD.
Saline spray, vitamin B12 spray or herbal extracts.
Animal nasal vaccine or drug spray.
