Atomizer Plate For Reflux Hole Incense Fumigating Machine

5 month ago

16 0 

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

5 month

Product details

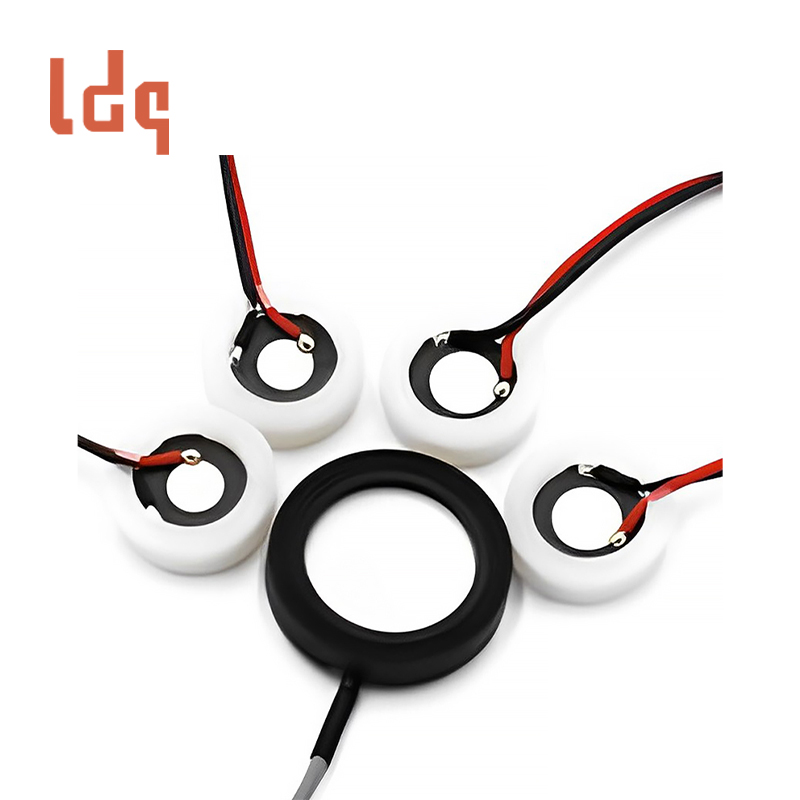

Piezoelectric Disc For Humidifier is a high-performance piezoelectric ceramic atomizer designed for humidifiers. It is manufactured using precision ceramic technology and has the characteristics of efficient atomization and stable operation. The product has a diameter of 16mm, a pore size of 4μm, a perforated area of 3.5mm, and is equipped with 1100 micropores. It can quickly atomize liquid into fine water mist and is suitable for various humidification equipment.

Function

The humidifier nebulizer chip employs piezoelectric high-frequency vibration to break water into 5–7micron cool mist particles, dispersing to increase ambient humidity. It features auto-humidistat control, low power consumption (<35W), ultra-quiet operation (<40dB), and optional antimicrobial coatings.

Atomizer Plate Product Specifications

Metal sheet: Φ16±0.1mm
Piezoelectric sheet: Φ16±0.2mm
Hole area: Φ3.5±0.2mm
Hole diameter: 4±1um
Number of holes: 1100
1571#28 double red wire: L=60±5mm
Plastic ring: 20±0.5mm
Bare chip thickness: 0.65±0.1mm
Plastic ring thickness: 3±0.3mm

Atomization Disc Features

1100 micropores design, high atomization efficiency, fine and uniform water mist.
Resonant frequency 108±5kHz, fast atomization speed, low energy consumption.
Piezoelectric ceramic sheet combined with SUS304 steel sheet, corrosion resistance, long life (≥3000 hours).
Rubber ring sealing design (20±0.5mm), stable installation, leak-proof.
Resonant impedance ≤300Ω, capacitance 3000±20%pF, suitable for a variety of circuit designs.
Working voltage 90Vp-p (maximum), safe and reliable.

Piezoelectric Disc For Humidifier Industry Applications

Home/commercial humidifiers: quickly increase ambient humidity and improve air quality.
Medical atomization equipment: suitable for medical atomizers to assist in drug delivery.
Industrial humidification system: used in places such as textile and electronic workshops that require humidity control.
Aromatherapy machines and beauty devices: efficiently atomize essential oils or skin care liquids to improve user experience.

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply

Usage Instructions

Use distilled or demineralized water only (tap water prohibited to prevent scaling). Ensure water covers the chip; refill daily. Descale weekly by soaking in white vinegar/citric acid for 10 mins. When not in use, empty the tank and store dry to avoid dry-burn damage.
