Atomizer plate for Atomizing spray water window cleaning machine

5 month ago

13 0 

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

5 month

Product details

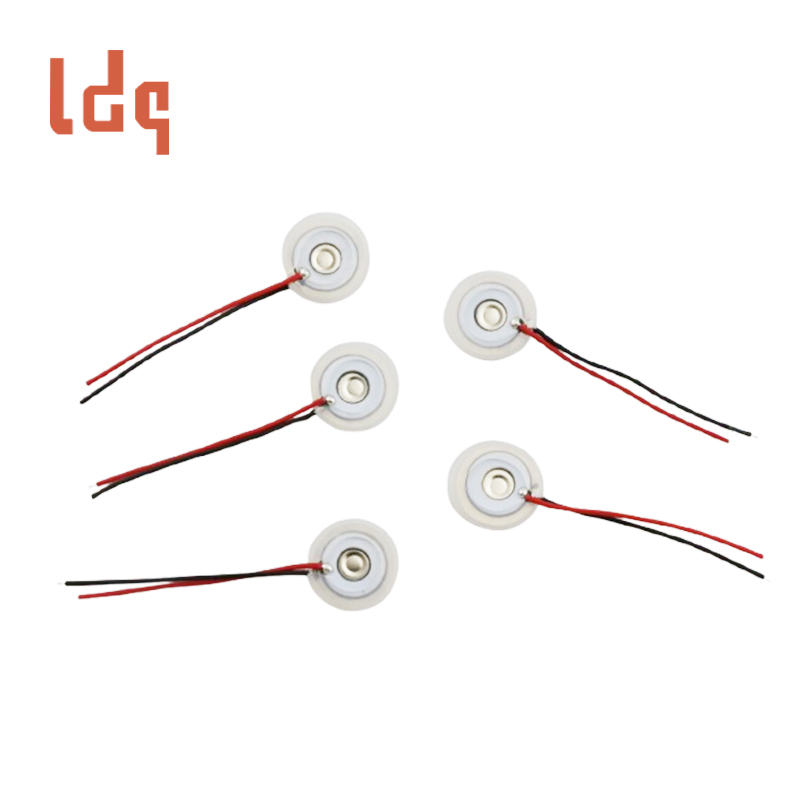

Ultrasonic Atomizer Plate For Window Cleaning Machine is a high-performance ultrasonic atomizer plate designed for glass cleaning equipment. Made of precision ceramics and 316L steel, it has 600 micropores (aperture 7±1μm), can efficiently produce fine water mist, and is suitable for all kinds of glass cleaning scenarios.

Function

The window-cleaning nebulizer chip uses piezoelectric high-frequency vibration to atomize cleaning solution or water into 5–7 micron mist, forming an even wet film to soften stains. It aids wipers in removing grease and dust from glass surfaces, featuring auto on/off and dry-run protection for vertical/high-altitude operations.

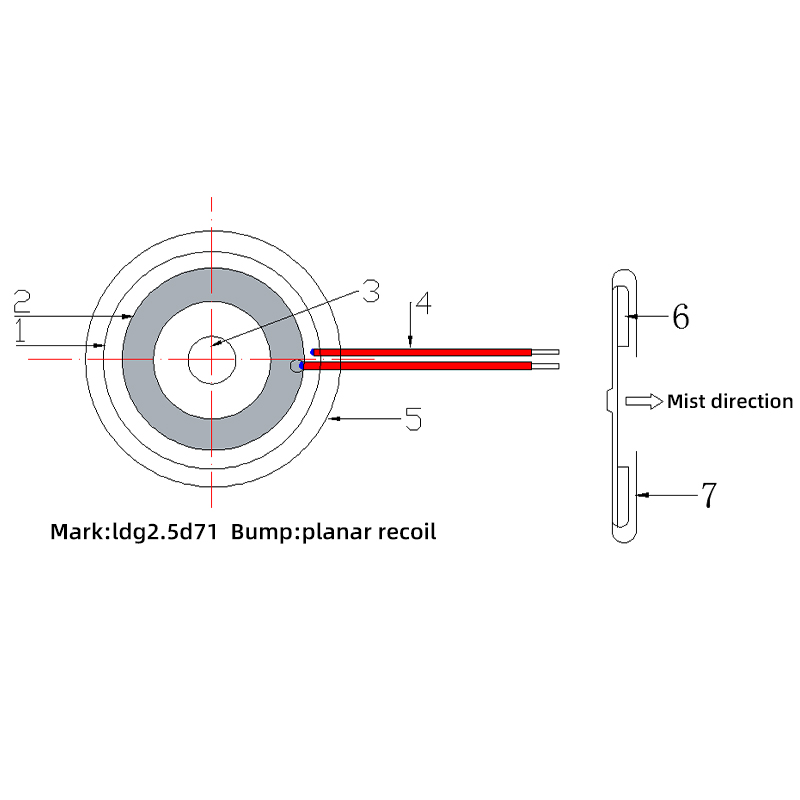

Atomizer Plate Product Specifications

Metal sheet: Φ13.8±0.1mm
Piezoelectric sheet: Φ11.3±0.2mm
Hole area: Φ2.5±0.2mm
Hole diameter: 7±1μm
Number of holes: 600 holes
1571#28 double red: L=60±5
Plastic ring: 15±0.5mm
Bare chip thickness: 0.65±0.1mm
Plastic ring thickness: 2.5±0.3mm
Material: 316L stainless steel

Atomizing spray water window cleaning machine Atomizer plate

Ultrasonic atomization window cleaning machine Atomizer plate

Atomizer Plate For Window Cleaner Features

The 316L steel sheet is corrosion-resistant, and the piezoelectric ceramic ring has stable performance and a service life of more than 3,000 hours.
The diameter of the steel sheet is 13.8±0.1mm, the diameter of the piezoelectric sheet is 11.3±0.2mm, and the hole area is 2.5±0.2mm, ensuring a perfect match with the equipment.
Using Ultrasonic Atomization Plate For Glass Cleaning technology, the 600 micropores design ensure that the water mist is fine and uniform, improving cleaning efficiency.

Atomizer Plate For Glass Cleaning Industry Applications

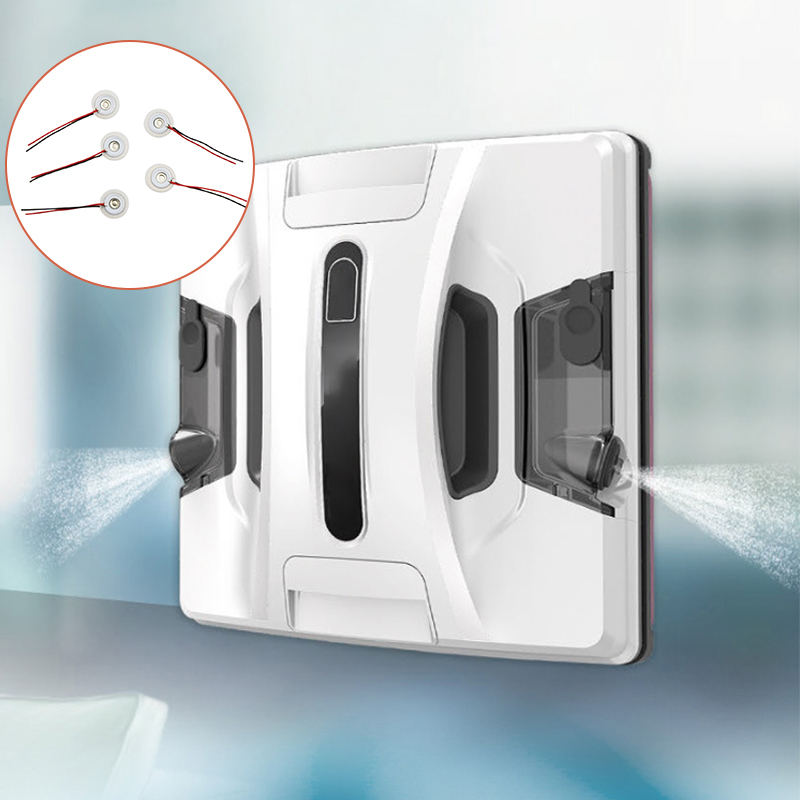

Automatic window cleaning robot: As the core atomization component, it is integrated into the Window Cleaning Machine to achieve efficient and uniform water mist spraying and improve the glass cleaning effect.
Intelligent mirror cleaning system: Suitable for scenes such as bathroom mirrors and shopping mall windows, with Glass Cleaning Ultrasonic Atomization Plate technology, to achieve traceless cleaning.
High-rise building curtain wall cleaning equipment: used for aerial work platforms or drone cleaning systems, through Ultrasonic Atomizer Plate For Glass Cleaning to produce fine water mist and reduce water stains.
Solar panel cleaning machine: Efficient atomization to clean the dust on the surface of photovoltaic panels and improve the efficiency of light energy conversion.

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply
