Product details

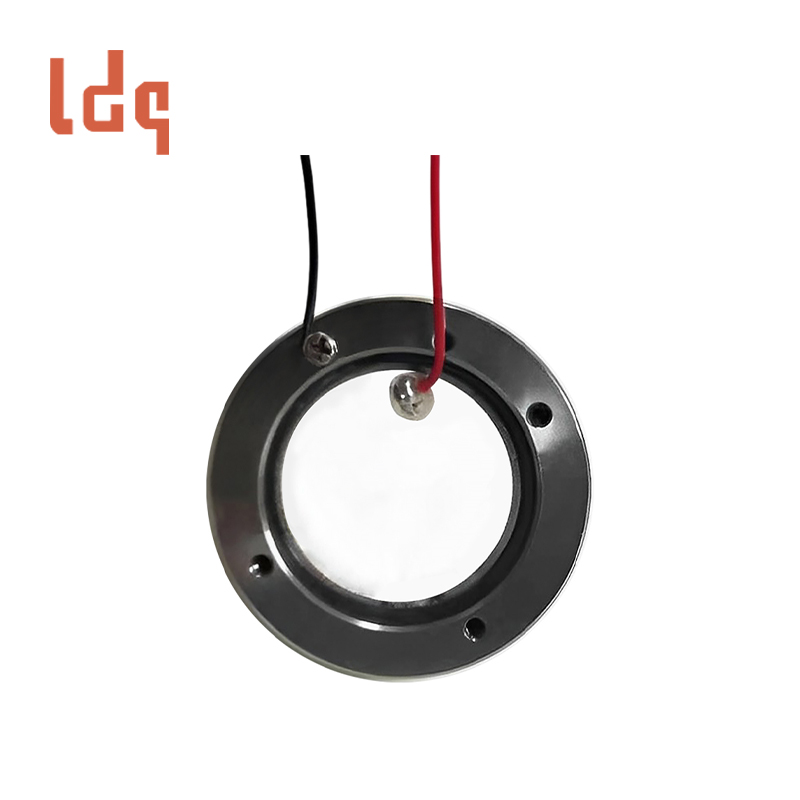

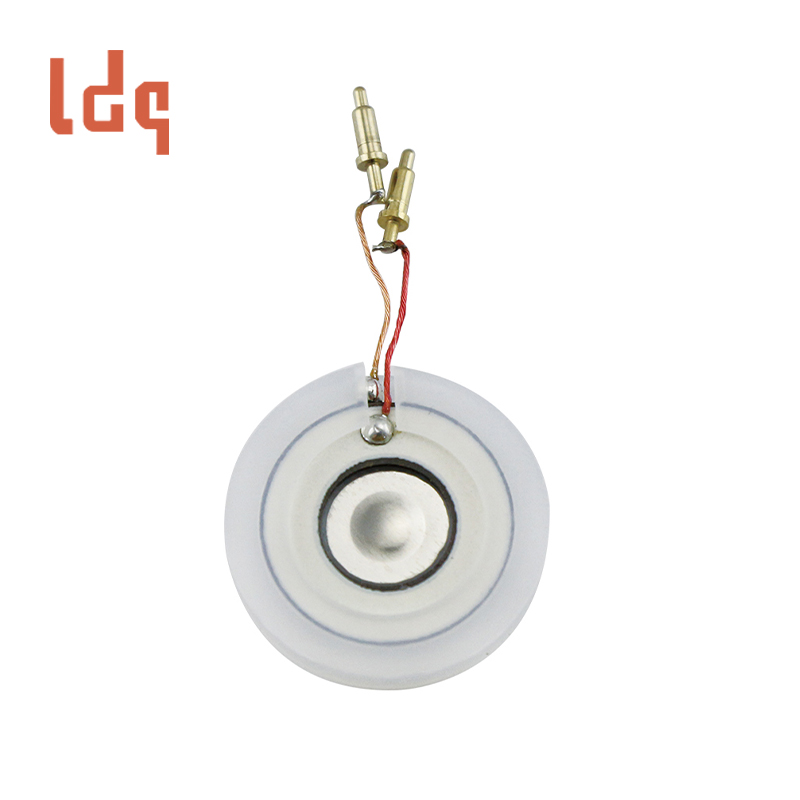

Medical Thimble Spray Atomized Plate is a precision atomization component made of medical grade 316L stainless steel, designed for medical spray equipment. This product has 1200 3.5μm precision micropores, which can produce ultra-fine atomization effect and is an ideal core component for various medical atomization equipment.

Frequently Asked Questions (FAQ)

Q1: Is it compatible with my nebulizer model?

A: We provide a compatibility checker tool covering 200+ mainstream nebulizer models. Adapter solutions are also available.

Q2: How to clean and disinfect?

A: Wiping with 75% alcohol or UV disinfection is recommended. Do not immerse. Detailed maintenance guidelines are included with the shipment.

Q3: What is the Minimum Order Quantity (MOQ) and lead time?

A: Samples are available from 10 pieces. Bulk order (>1000 pcs) lead time is approximately 15 days. Air/sea shipping supported.

Q4: Do you provide technical verification documents?

A: Yes, we can provide 3rd party test reports, biocompatibility proof (ISO 18562 compliant), and technical drawings.

Atomizer Plate Product Specifications

Metal sheet: Φ16±0.1mm
Piezoelectric sheet: Φ16±0.2mm
Hole area: Φ3±0.2mm
Hole diameter: 3.5±1μm
Number of holes: 1200 holes
Enameled wire: L=15±3mm, wire diameter 0.3mm
Plastic ring: 20±0.5mm
Bare chip: 0.65±0.1mm
Plastic ring: 3.0±0.3mm
Material: 316L stainless steel

Ceramic Atomizer Plate Features

Atomized Plate for Medical Use uses 1200 precision micropore arrays
Atomized particle size 3.5±1μm, suitable for respiratory administration
Atomization uniformity ＞98%
Medical grade 316L stainless steel body
Corrosion-resistant and anti-oxidation treatment
Passed biocompatibility test

Medical Atomized Plate Industry Applications

Asthma nebulizer inhaler
COPD treatment equipment
Pediatric nebulizer therapy device
Emergency ventilator nebulizer module
Insulin nebulizer inhalation device
Antibiotic nebulizer therapy device
Pre-anesthesia drug delivery system
Vaccine nebulizer inoculation equipment

Similar Video Recommendation

< >

Atomizer Plate For Reflux Hole Incense Fumigating Machine

Atomizer Plate For Eye Atomization Instrument

16mm Atomizing fan atomizer plate

Atomizer Plate For Atomizing Fan

Atomizer Plate For Essential Oil Diffuser

Eye Atomization Instrument Atomizer Plate

Atomizer Plate For Handheld Water Replenishment Instrument

Atomizer Plate For Air Humidifier
