Eye Atomization Instrument Atomizer Plate

2 month ago

7 0 

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

3 month

Product details

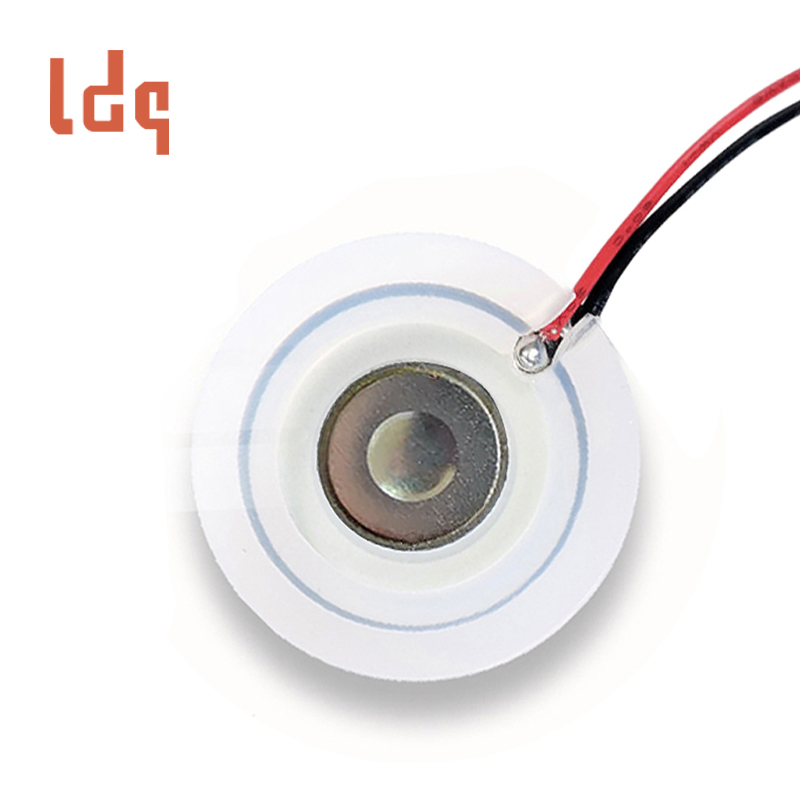

Piezoelectric Disc For Transducers uses laser precision drilling technology, 600 evenly distributed 7-micron micropores (±1μm tolerance), forming a 2.5mm effective atomization area, 316L medical grade stainless steel sheet (corrosion resistance meets ASTM A240 standard) and PZT-5H piezoelectric ceramics are a golden combination

Atomization Disc Product Specifications

Metal sheet: Φ13.8±0.1mm
Piezoelectric sheet: Φ11.3±0.2mm
Hole area: Φ2.5±0.2mm
Hole diameter: 7±1um
Number of holes: 600 holes precisely arranged
1571#28 double red line: L=60±5mm
Diameter of rubber ring: 15±0.5mm
Bare chip thickness: 0.65±0.1mm
Thickness of rubber ring: 2.5±0.3mm

Atomizer Plate Features

High-precision micropore design: 600 precision micropores, pore size 7±1μm, punching area 2.5mm
High-quality materials: 316L stainless steel sheet (diameter 13.8mm) and piezoelectric ceramic sheet (diameter 11.3mm) composite structure
Precise size control: bare chip thickness 0.65±0.1mm, overall tolerance controlled within ±0.1mm
Efficient atomization: resonant frequency 150±10KHz, resonant impedance ≤500Ω
Stable operation: working voltage 90Vp-p (maximum), capacitance 1500±20%PF
Extremely long life: designed service life of more than 3000 hours

Piezoelectric Disc For Transducers Industry Applications

Aromatherapy machine: realizes efficient atomization of essential oils and creates a comfortable home environment

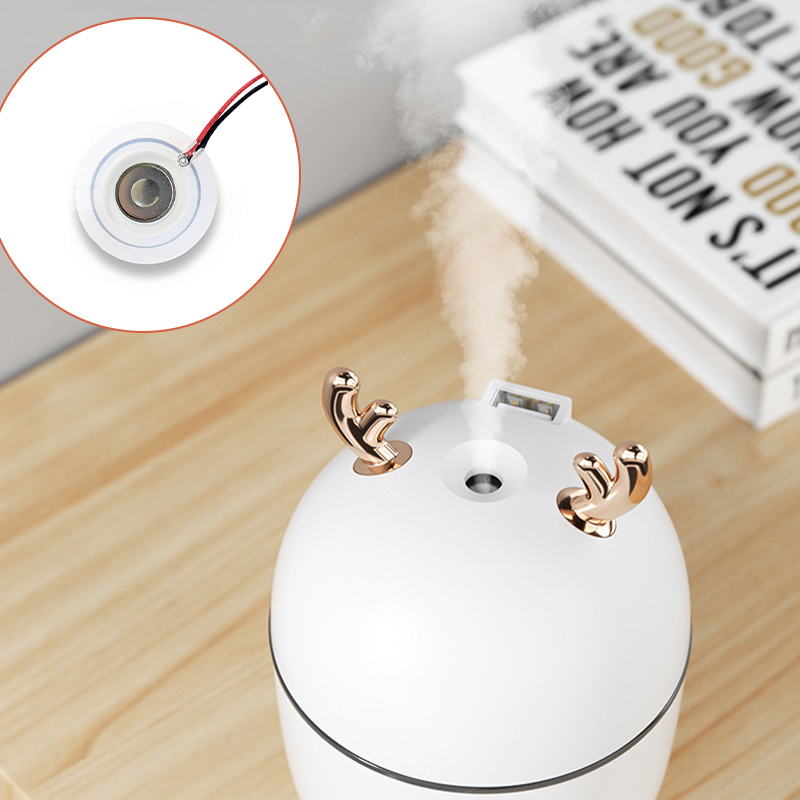

Humidifier: provides fine water mist to effectively increase air humidity
Smart beauty instrument: used in nano-microneedle introduction system to increase the penetration rate of active ingredients by 3 times
Traditional Chinese medicine fumigation equipment: realizes low-temperature active atomization of effective ingredients of traditional Chinese medicine
Smart cockpit of new energy vehicles: supports independent fragrance control in multiple zones

Conventional microporous atomizer parameters
