Ultrasonic atomization window cleaning machine Atomizer plate

5 month ago

2 0 

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

5 month

Product details

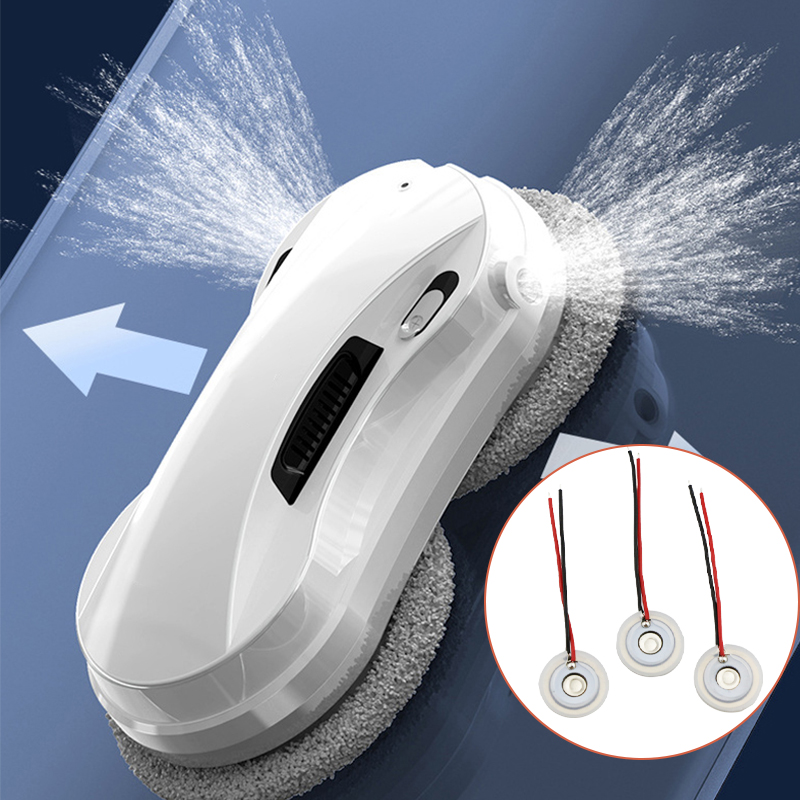

Atomizer Plate For Atomizing Spray Water Window Cleaning Machine is a high-performance microporous atomization core component designed for modern intelligent cleaning equipment. With 600 precise micropores, it can produce fine and uniform water mist, making it an ideal choice for all types of window cleaning equipment.

The window-cleaning nebulizer chip uses piezoelectric high-frequency vibration to atomize cleaning solution or water into 5–7 micron mist, forming an even wet film to soften stains. It aids wipers in removing grease and dust from glass surfaces, featuring auto on/off and dry-run protection for vertical/high-altitude operations.

Designed for smart window-cleaning robots, high-rise facade cleaners, and household glass cleaners. Targets stubborn stains on smooth surfaces (e.g., windows, tiles, mirrors), especially effective for skyscraper exteriors and solar panel dust removal.

Atomizer Plate Product Specifications

Metal sheet: Φ13.8±0.1mm
Piezoelectric sheet: Φ11.3±0.2mm
Hole area: Φ2.5±0.2mm
Hole diameter: 7±1μm
Number of holes: 600 holes
1571#28 double red: L=60±5
Plastic ring: 15±0.5mm
Bare chip thickness: 0.65±0.1mm
Plastic ring thickness: 2.5±0.3mm
Material: 316L stainless steel

Atomizing spray water window cleaning machine Atomizer plate

Atomizer Plate For Window Cleaner Features

Ultra-fine pore size: 7±1μm precision micropore design, 600 holes evenly distributed, ensuring fine and uniform water mist
Optimized pore area: Φ2.5±0.2mm perforated area, high atomization efficiency
High-efficiency resonant frequency: 150±10KHz, ensuring stable atomization effect
Low impedance design: resonant impedance ≤500Ω, lower energy consumption
Large-capacity capacitor: 1500±20PF, fast response speed

Ceramic Atomizer Plate Industry Applications

Sun room/greenhouse: avoid water accumulation and damage to plants, and micro-mist cleaning takes into account both light transmittance and humidity control.
Special-shaped glass structure: such as spherical viewing platform and glass plank road, atomization spraying can accurately cover the concave and convex surface.
On-board window cleaning equipment: integrated in unmanned vehicles or smart buses to achieve automatic glass cleaning.
Tunnel inner wall cleaning robot: with high-pressure atomization to wash stubborn dirt, suitable for confined space operations.

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply
