Atomizing Plate For Oral Atomizer

5 month ago

12 0 

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

5 month

Product details

This Atomizing Plate For Electronic Oral Sprayer adopts advanced microporous atomization technology, which can efficiently convert liquid media into fine droplets, providing users with an excellent usage experience.

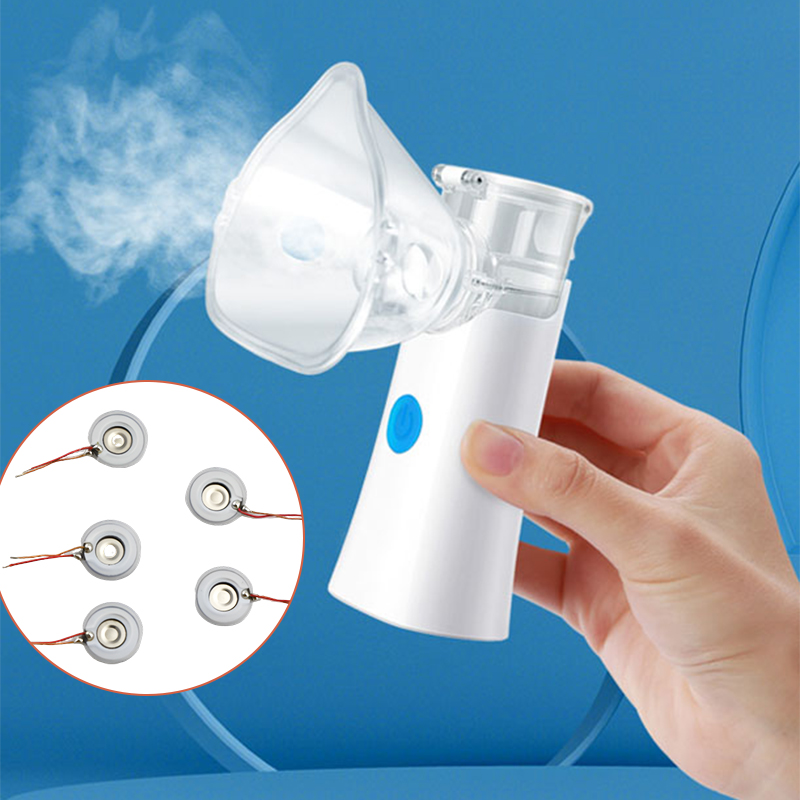

This Atomizer plate for oral spray employs piezoelectric ceramic technology to convert liquid medication into 1–5 micron ultra-fine mist via high-frequency vibration, enabling targeted delivery to oral mucosa for enhanced localized drug absorption, with features of low noise, portability, and rapid atomization.

Usage Instructions

Fill the medicine cup with specified liquid (covering the chip), place the nozzle in the mouth targeting affected areas, and operate for 5–10 minutes. Rinse the cup and chip with water immediately after use, disinfect weekly with 75% alcohol, and avoid oily medications or dry operation.

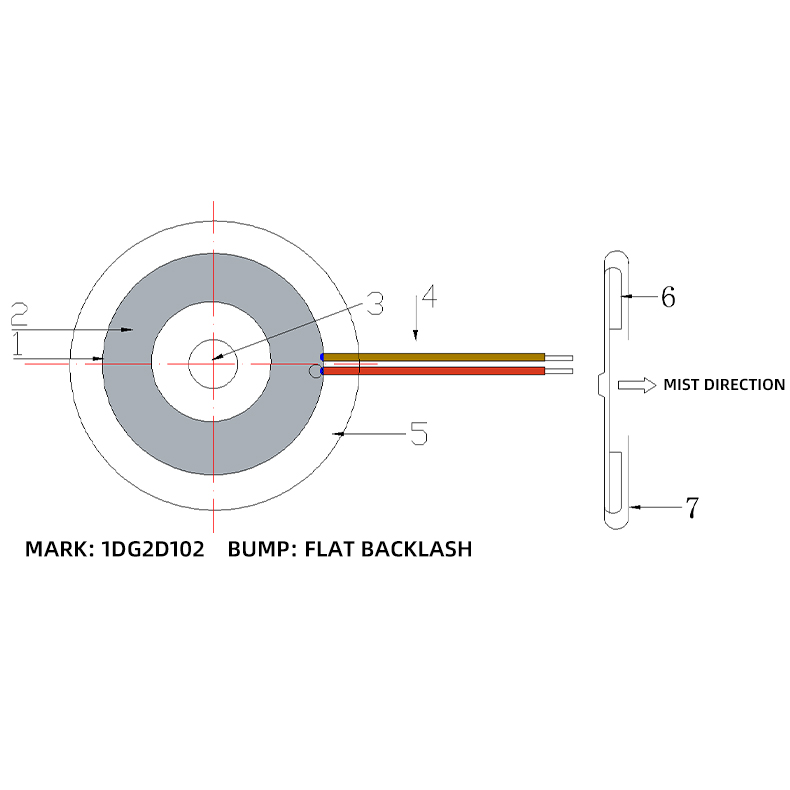

Atomizing Plate Product Specifications

Metal sheet: Φ10±0.1
Piezoelectric sheet: Φ10±0.2
Hole area: Φ2±0.2
Hole diameter: 10±1um
Number of holes: 540 holes
Enameled wire gold-red: L=15±3 Wire diameter 0.3
Plastic ring: 11.2±0.5
Bare chip thickness: 0.65±0.1
Plastic ring thickness: 2.0±0.3

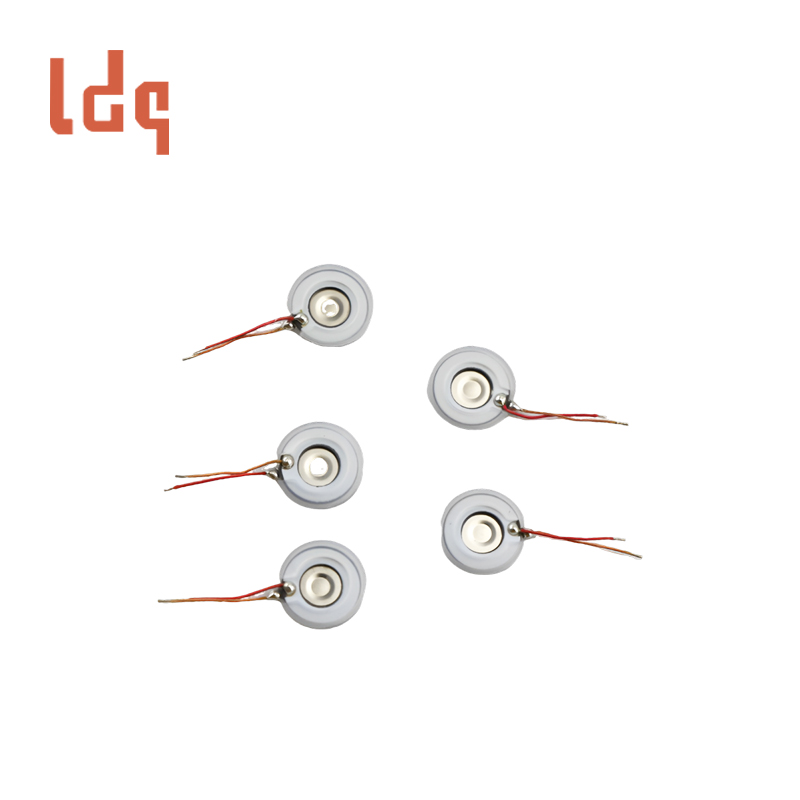

Ultrasonic Atomizing Plate For Oral Atomizer

Oral Atomizer Atomizing Plate Features

Working frequency 155±10KHz, achieving efficient energy conversion and stable atomization effect
Professional welding process: gold wire welding steel sheet, red wire welding ceramic sheet, to ensure reliable electrical connection
Equipped with special rubber ring, easy to install and fix, improve product durability
Resonant impedance ≤500Ω, capacitance 1300±20%PF, stable electrical performance
Maximum working voltage 90Vp-p, adapt to a variety of circuit design requirements
Service life up to more than 1000 hours, economical and durable

Ultrasonic Atomizing Plate For Oral Atomizer Industry Applications

Breath management: Nebulized probiotic preparations balance oral flora and reduce odor.
Sterilization and disinfection: Nebulized hypochlorous acid solution is used for oral cleaning and auxiliary treatment of gingivitis.
Seasonal protection: Nebulized saline moisturizes the airway to prevent cough caused by dryness in autumn and winter.
Asthma/COPD patients use portable nebulizers for daily maintenance treatment to reduce the need for emergency treatment.

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply
