Oral Spray Device Atomizing Plate

2 month ago

7 0 

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

3 month

Product details

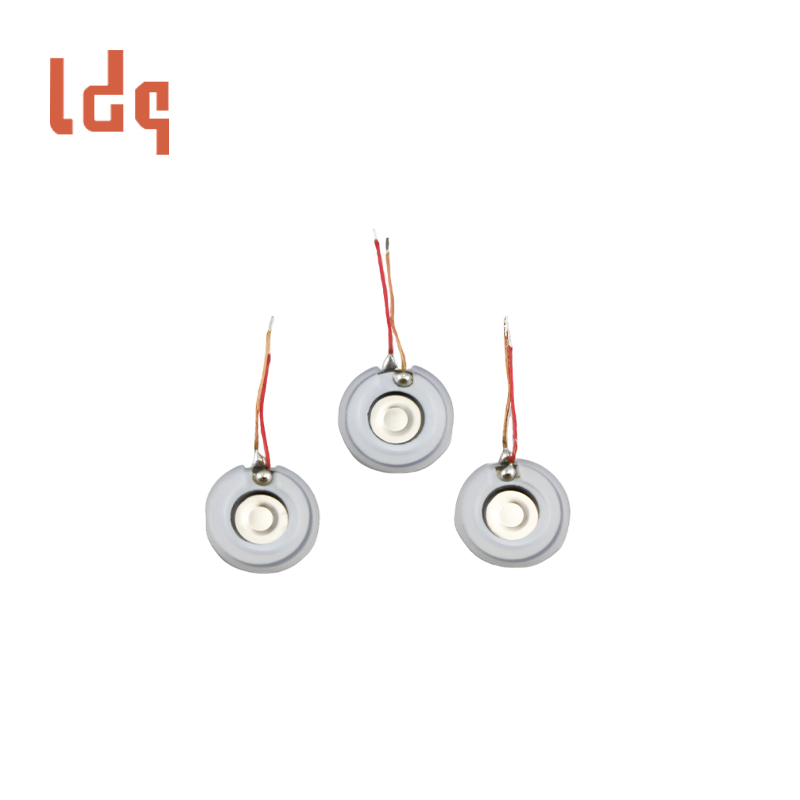

Atomizing Plate For Oral Atomizer is a high-performance core component designed for oral atomizer devices. It uses a composite process of precision ceramics and 316L steel sheets to achieve efficient atomization through 880 5μm micropores. It is widely used in medical, health care and other fields.

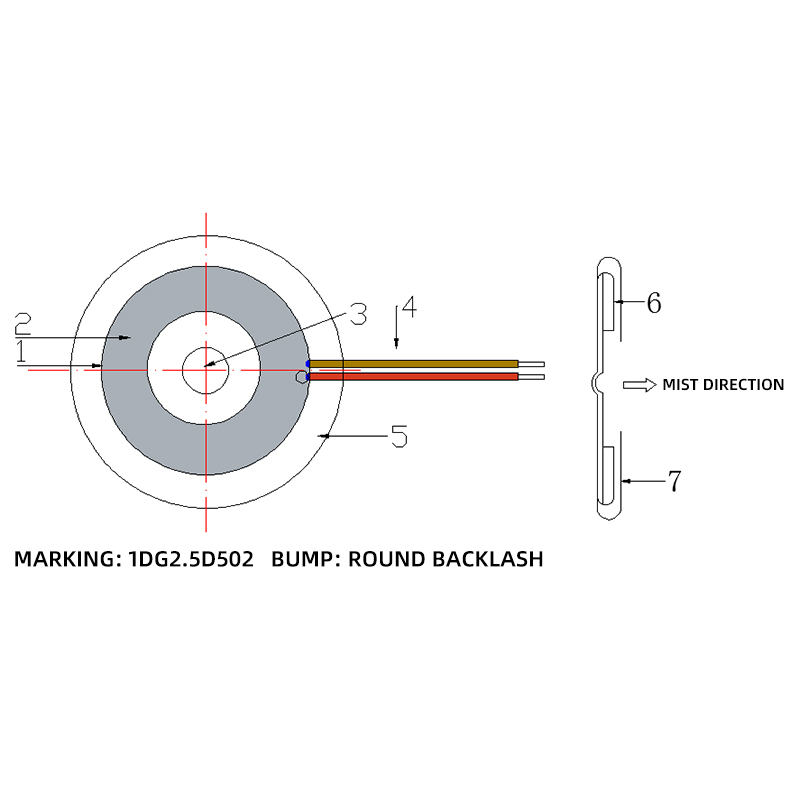

Atomizing Plate Product Specifications

Metal sheet: Φ8±0.1
Piezoelectric sheet: Φ8±0.2
Hole area: Φ2.5±0.2
Hole diameter: 5±1
Number of holes: 880 holes
Enameled wire: L=15±3 Wire diameter 0.3
Plastic ring: 9±0.5
Bare chip thickness: 0.65±0.1
Plastic ring thickness: 2.0±0.3

Oral Atomizer Atomizing Plate Features

Φ8±0.1mm metal sheet + Φ8±0.2mm piezoelectric sheet: strict tolerance control, compatible with standard tooling molds
Line/red line double welding: ceramic sheet and steel sheet are firmly connected to ensure signal transmission stability
1000 hours long life: 316L medical grade steel sheet material, strong corrosion resistance
Wide voltage support: working voltage 90Vp-p (max), adaptable to a variety of drive solutions

Atomizer Plate Industry Applications

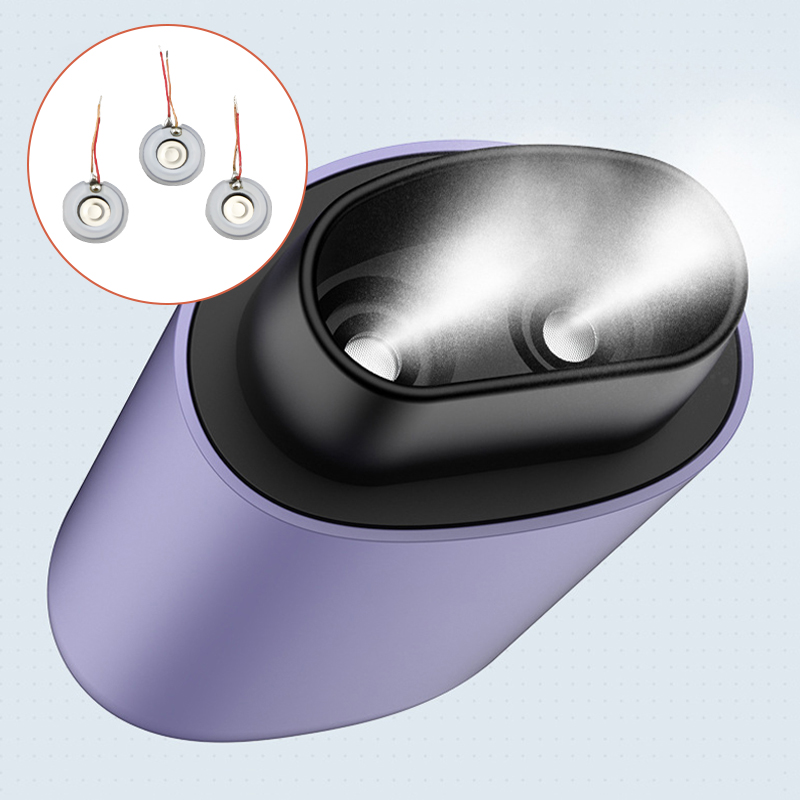

Medical oral spray equipment - used for atomization of drugs for throat anti-inflammatory, oral ulcer treatment, etc., to ensure that the drug solution evenly covers the affected area.
Portable atomization therapy device - suitable for drug inhalation treatment of patients with respiratory diseases such as asthma and chronic bronchitis.
Nasal care spray - used with a nasal spray device for atomization of saline or drugs for allergic rhinitis and sinusitis.
Dental atomization cleaning equipment - assists in disinfection, anesthesia or flushing in oral diagnosis and treatment, and improves the accuracy of treatment.

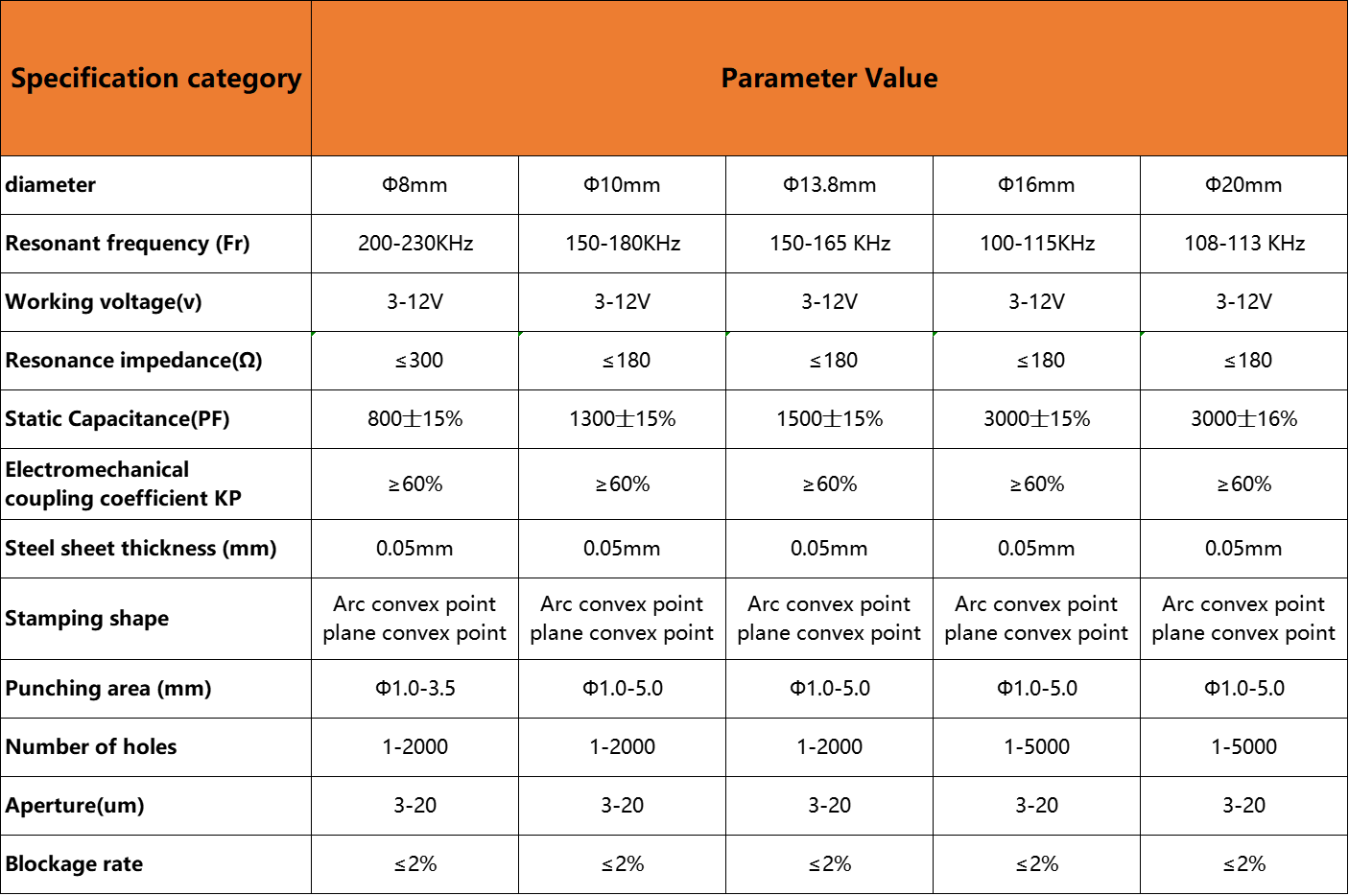

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply
