Product details

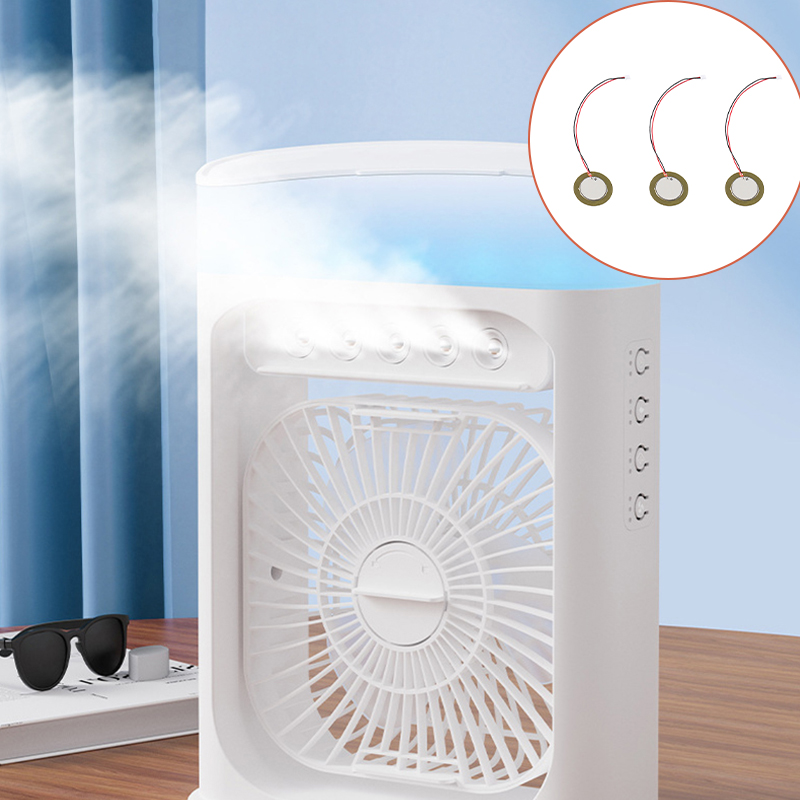

13.8mm Air Cooler Atomizer Plate is a high-performance microporous atomizer plate designed for air cooling equipment (such as aromatherapy machines, small fans, air coolers, etc.). The atomizer plate adopts a composite process of precision ceramics and 316L steel sheets, with 600 evenly distributed micropores (aperture 7±1μm), which can efficiently convert liquid media into fine mist, quickly reduce ambient temperature and increase humidity. Its core parameters include a resonant frequency of 150±10kHz, an operating voltage of 90Vp-p (max), and a lifespan of more than 3000 hours, ensuring a stable and long-lasting atomization effect.

Atomizer Plate Product Specifications

Metal sheet: Φ13.8±0.1mm
Piezoelectric sheet: Φ11.3±0.2mm
Hole area: Φ2.5±0.2mm
Hole diameter: 7±1um
Number of holes: 600 holes precisely arranged
1571#28 double red line: L=60±5mm
Diameter of rubber ring: 15±0.5mm
Bare chip thickness: 0.65±0.1mm
Thickness of rubber ring: 2.5±0.3mm

Air Cooler Atomizer Plate Features

Punching area Φ2.5mm, 600 holes design, fine and uniform atomized particles, improve cooling efficiency.
Low resonant impedance (≤500Ω), low energy consumption, suitable for long-term operation.
Piezoelectric ceramic sheet (Φ11.3mm) and 316L steel sheet composite, corrosion-resistant and long life.
Capacitor 1500±20%PF, suitable for most drive circuits; working voltage ≤90Vp-p, safe and reliable.
Standard size Φ13.8mm, compatible with mainstream air cooler mold design.

Air Cooler Atomizer Plate 13 8mm Industry Applications

Home/car air coolers: Rapid cooling and humidification to relieve dry and hot environments.
Industrial humidification equipment: Suitable for places such as greenhouses and warehouses that require humidity control.
Pet cooling pads: Combined with water mist to provide a cool resting environment for pets.
Laboratory constant humidity environment: Maintains stable humidity conditions required for precision instruments.
Data center local cooling: Used for auxiliary heat dissipation of server cabinets to prevent overheating.

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply
