For applications involving humidifier atomizers (where mist contacts the air, indirectly affecting human breathing) and aromatherapy diffuser sensors (where aromatherapy particles are directly inhaled), international customers require that the atomizer material meet "medical-grade biocompatibility standards." This requires passing ISO 10993-1 biological evaluation testing, including cytotoxicity testing (cell viability ≥ 90%) and sensitization testing (no allergic reaction). The material must also be free of harmful substances such as bisphenol A (BPA) and phthalates (content ≤ 0.1ppm). This ensures that no harmful substances are released during atomization (e.g., heavy metals such as lead, cadmium, and mercury ≤ 0.01ppm), and avoids respiratory irritation (irritation rate ≤ 0.05%) or skin allergies (sensitization rate ≤ 0.01%).

Piezoelectric ceramic transducers are key components for converting electrical energy to mechanical energy and vice versa. Based on over 15 years of experience in piezoelectric materials and structural design, Shenzhen Liandaqi Precision Ceramics Co., Ltd. specializes in the R&D and manufacturing of various piezoelectric ceramic transducers. With superior energy conversion efficiency, exceptional frequency stability, excellent environmental adaptability, and flexible customization capabilities, our products have become indispensable core components in numerous high-end equipment and systems.For example:Atomizer Plate For Medical Atomizer.

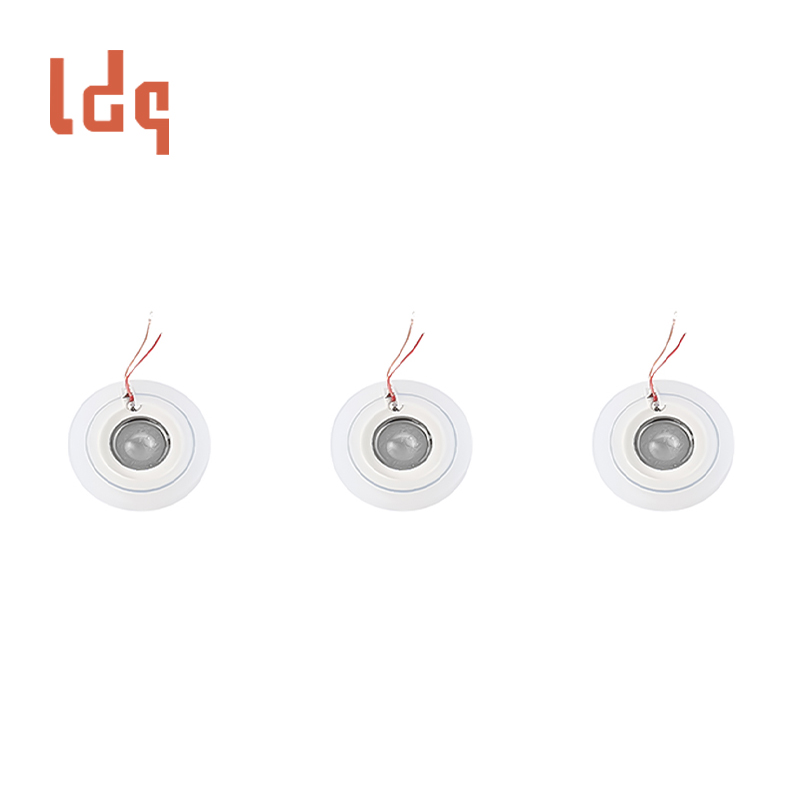

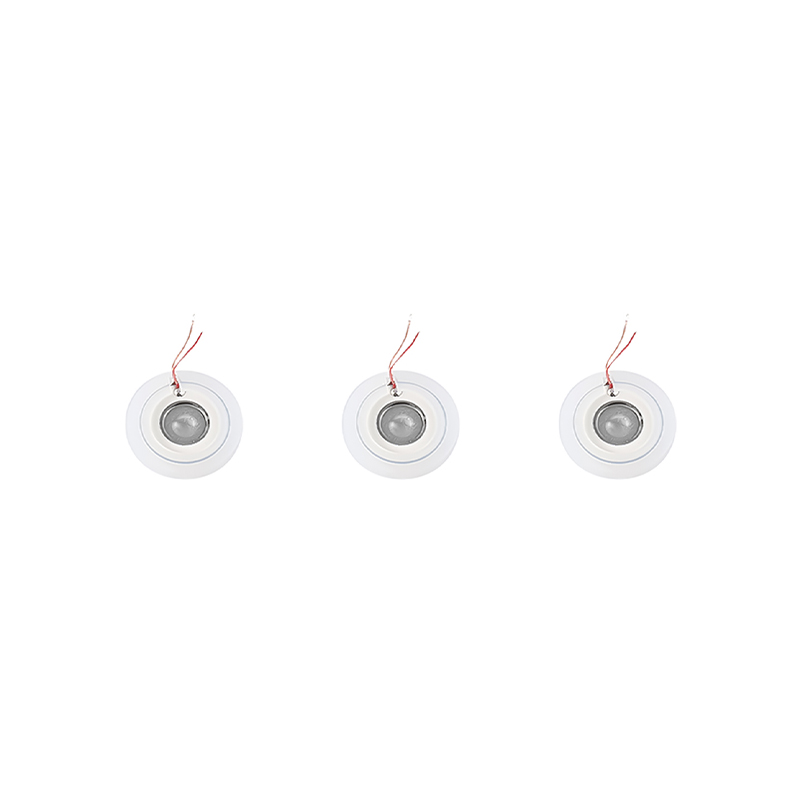

Medical piezoelectric ceramic atomizer plate

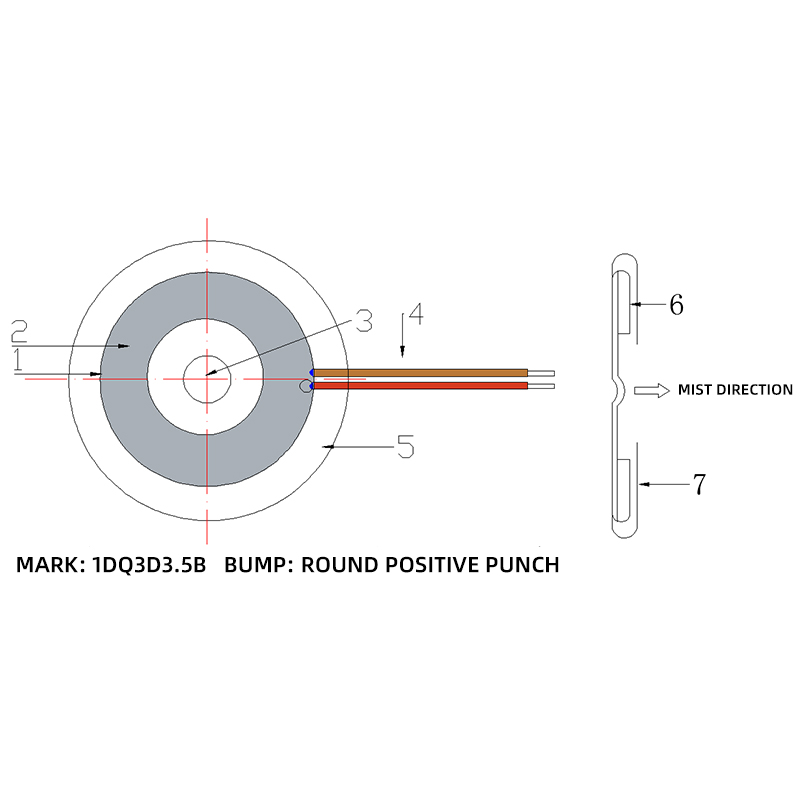

Atomizer Plate Product Specifications

Metal sheet: Φ13.8±0.1mm
Piezoelectric sheet: Φ11.3±0.2mm
Hole area: Φ2.5±0.2mm
Hole diameter: 7±1um
Number of holes: 600 holes precisely arranged
1571#28 double red line: L=60±5mm
Diameter of rubber ring: 15±0.5mm
Bare chip thickness: 0.65±0.1mm
Thickness of rubber ring: 2.5±0.3mm

Ceramic Atomizer Plate Features

Resonance frequency: 155±10KHz (customizable)
Working voltage: ≤90Vp-p
Atomized particles: 3-5μm
Service life: ≥3000 hours

Ceramic Atomizer Plate Industry Applications

Home nebulizer therapy device: stable nebulization, more convenient home care
Hospital nebulizer: high nebulization efficiency, improve treatment speed
Auxiliary treatment of respiratory diseases: nebulized drugs directly reach the lesion
Postoperative nebulization drug administration: reduce the side effects of oral drugs
Emergency nebulizer equipment: fast response, emergency drug administration

Usage Instructions

Fill the container with liquid to cover the chip surface, then activate power for atomization. Use purified water or specified solutions to avoid clogging micropores. Clean limescale regularly (vinegar soak) and prevent dry operation. Medical applications require strict disinfection of components.
