Medical Thimble Spray Atomized Plate

2 month ago

6 0 

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

3 month

Product details

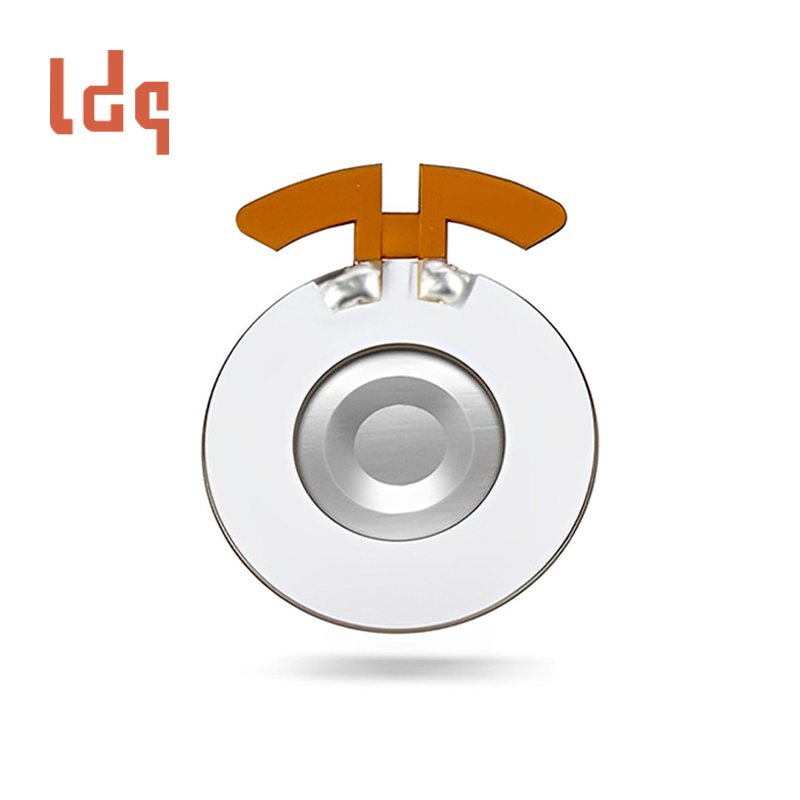

Medical Fpc Atomizing Plate is a high-precision atomization core component designed for medical equipment. It adopts flexible printed circuit (FPC) technology and has the characteristics of ultra-thinness and high stability. This product is widely used in medical fields such as medical nebulizers and respiratory therapy equipment to ensure uniform and delicate drug atomization and improve treatment effects.

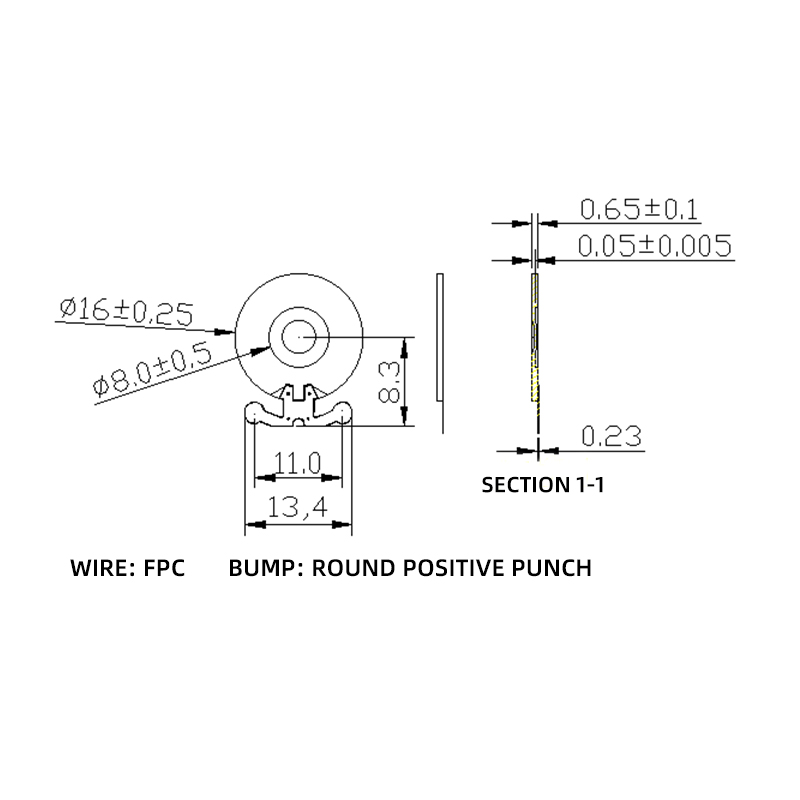

Medical Atomized Plate Product Specifications

Metal sheet: Φ16±0.1mm
Piezoelectric sheet: Φ16±0.2mm
Hole area: Φ3±0.2mm
Hole diameter: 3.5±1μm
Number of holes: 1200 holes
FPC: 13.4*4.1*0.2mm
Bare chip thickness: 0.65±0.1mm

Features

Medical Microporous Atomized Plate uses 1,200 3.5μm precision micropores
The uniformity of atomized particles is over 98%
It meets the optimal particle size range for respiratory drug delivery
Medical-grade 316L stainless steel material, with 40% higher corrosion resistance

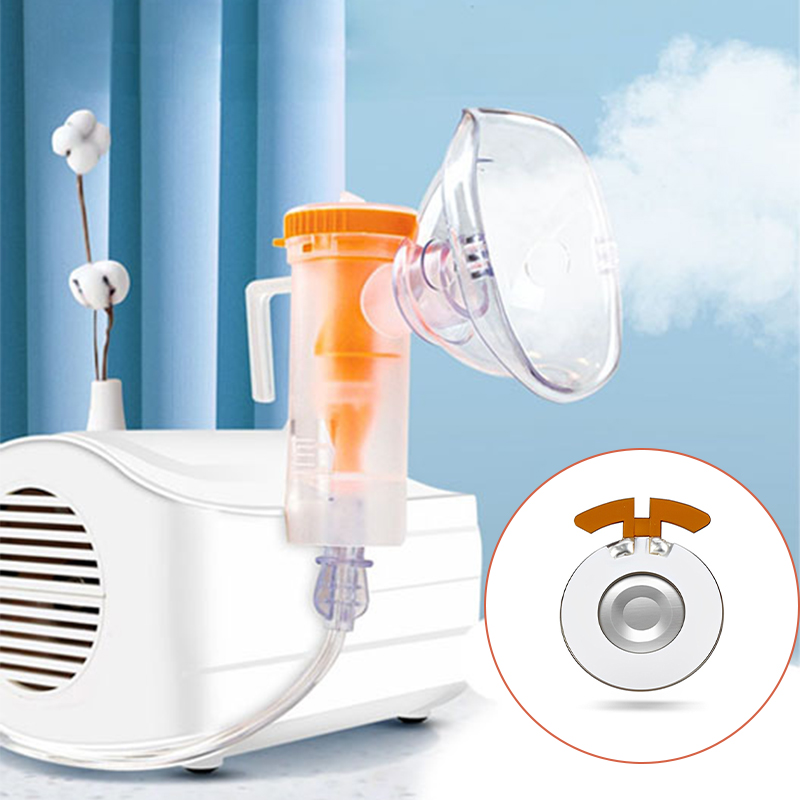

Medical Fpc Atomization Tablet Industry Applications

Asthma metered dose inhaler
Bronchodilator delivery device
Nebulizer terminal for pulmonary fibrosis treatment
Nebulizer delivery system for neonates
Portable nebulizer for pediatric asthma
Respiratory syncytial virus treatment device for children

Important Product Description

Frequency characteristics: The component frequency parameters are only used as reference values for electrical circuit design and are not recommended as IOC standards

Storage conditions: Dust-free environment with a temperature of 5℃-40℃ and a relative humidity of <65%

Material upgrade: The steel sheet is made of medical-grade 316L stainless steel, which has better corrosion resistance and biocompatibility
