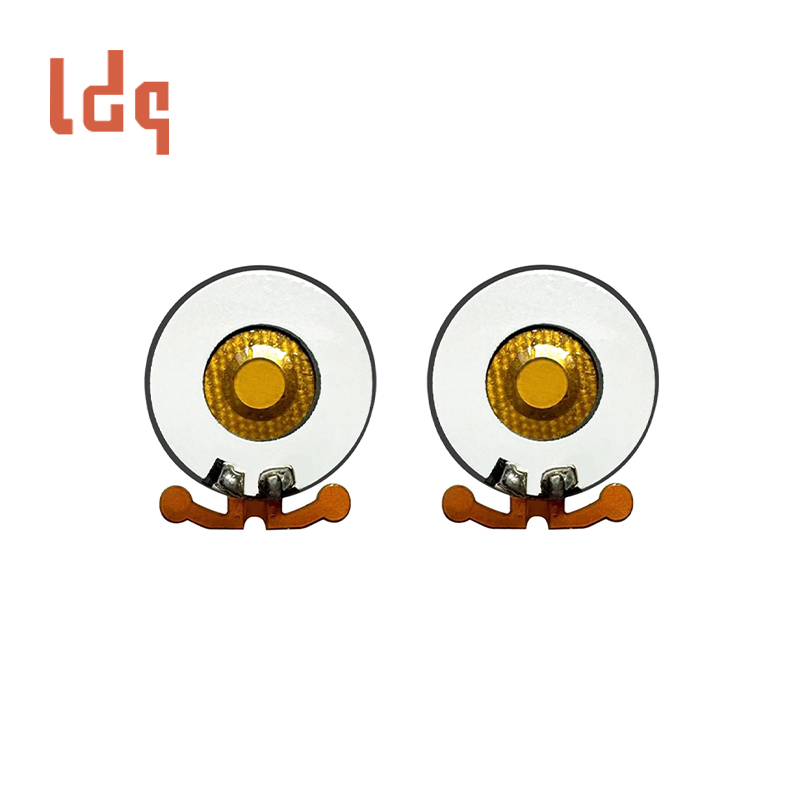

Medical FPC Atomization Tablet is a medical-grade atomization core component based on flexible printed circuit (FPC) technology, designed for modern medical equipment. This product uses 1000 precise micropores and operates at a resonant frequency of 103±5KHz, providing efficient and stable atomization solutions for various medical atomization applications.

The medical nebulizer chip is a piezoelectric ceramic component that converts liquid medication into fine aerosol particles (typically 2.5–5 microns) via high-frequency vibration, enabling targeted delivery to the respiratory tract and lungs for enhanced drug absorption.

Commonly used in household/clinical nebulizers to treat respiratory conditions such as asthma, chronic obstructive pulmonary disease (COPD), and bronchitis. Also applied for throat inflammation, pediatric respiratory infections, and home-based humidification therapy.

Atomizer Plate Performance parameters

Resonance frequency (Fr): 103±5KHz
Operating frequency (F): 108±5KHz
Resonance impedance (Ro): ≤300Ω
Electrostatic capacitance (Co): 3000±20%PF
Maximum operating voltage: <120V
Input power range: 0.6-2W
Service life: ~1000 hours
Operating temperature: +5℃~+50℃
Number of holes: 1000

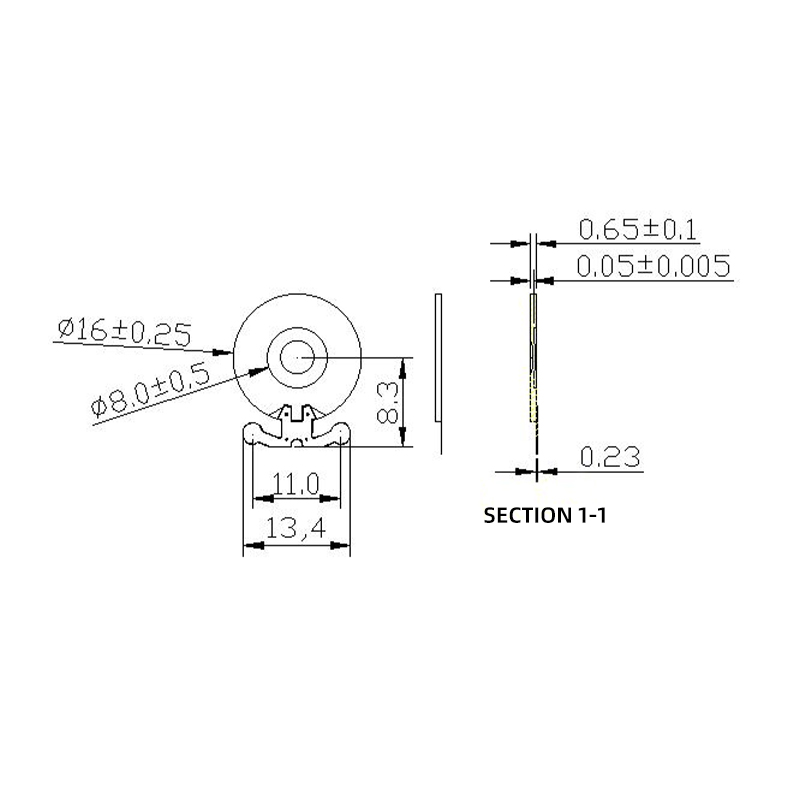

Hole area: Φ3.0mm

Ceramic Atomizer Plate Features

FPC Atomization Tablet Solution uses ultra-thin flexible circuit design
Thickness is only 0.2mm, bending radius can reach 3mm
Perfectly adapt to the space requirements of portable medical devices
1000 precision micropore arrays
Atomized particle size 3-5μm, suitable for respiratory drug delivery
Medical grade materials, passed biocompatibility testing
1000 hours of service life verification

Medical Atomized Plate Industry Applications

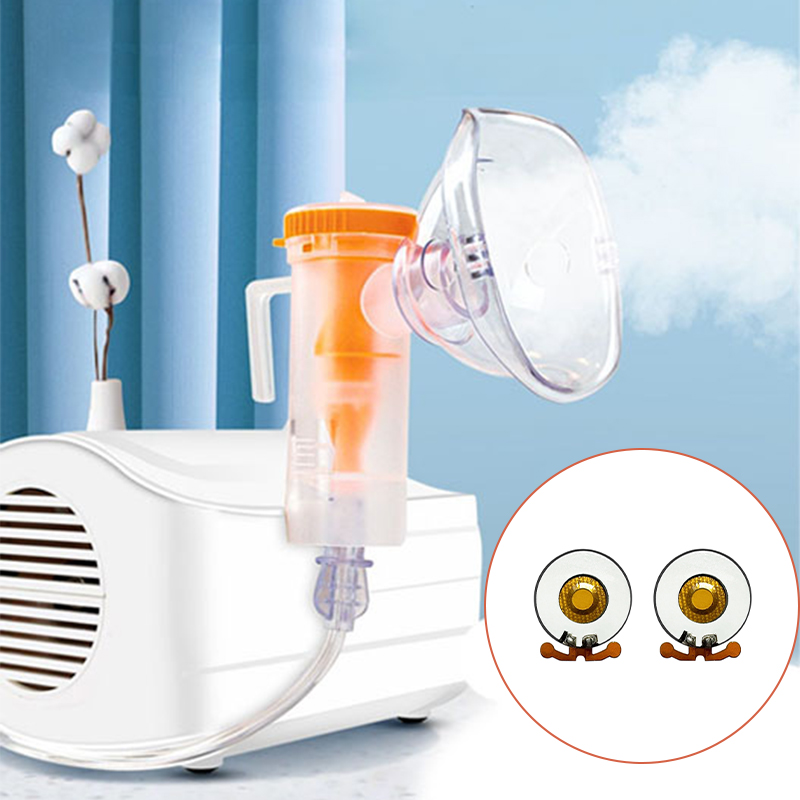

Asthma nebulizer inhaler
COPD treatment equipment
Emergency ventilator nebulizer module
Insulin nebulizer inhalation device
Antibiotic nebulizer treatment device
Vaccine nebulizer inoculation equipment
Burn wound drug delivery system
Oral treatment spray
Nasal drug delivery device
