Product details

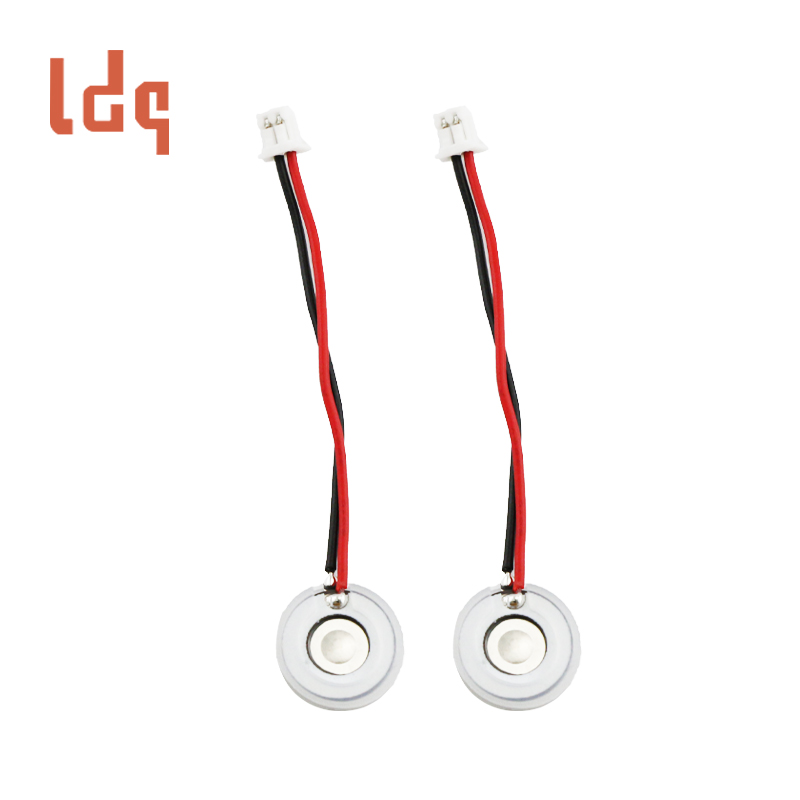

Atomizer Plate For Steam Eye Mask is the core component of the steam eye mask. It uses advanced microporous atomization technology to convert liquid essence or water into 3-8μm delicate and warm steam, providing a SPA-level care experience for the eyes.

The steam eye mask nebulizer chip uses piezoelectric ceramic vibration to convert purified water/herbal liquid into constant warm vapor at 40–60°C (3–5 micron particles). It delivers thermo-therapeutic steam to boost periocular blood circulation, relieving dryness and eye strain with anti-scalding safety and low-power operation.

Atomizer Plate For Eye Moisturizer Product Specifications

Metal sheet: Φ10±0.1mm
Piezoelectric sheet: Φ10±0.2mm
Hole area: Φ2±0.2mm
Hole diameter: 10±1μm
Number of holes: 540 holes
Enameled wire: L=15±3mm, wire diameter 0.3mm
Plastic ring: 11.2±0.5mm
Bare chip thickness: 0.65±0.1mm
Plastic ring thickness: 2.0±0.3mm
Material: 316L stainless steel

Atomizer Plate For Steam Eye Mask Machine

Atomizer Plate For Eye Sprayer Features

Material: 316L medical stainless steel + piezoelectric ceramic composite structure
Dimensional accuracy: Φ10±0.1mm (metal sheet), thickness 0.65±0.1mm
Special process: gold wire welding steel sheet + red wire welding ceramic sheet double guarantee

Eye Humidifier Atomizer Plate Industry Applications

Dry eye auxiliary treatment equipment
Postoperative eye moisturizing care equipment
Medical-grade atomization drug delivery system
High-end SPA eye care equipment
Home steam eye mask
Portable eye massage equipment
Travel mini eye moisturizer
Office eye spray
Home eye relaxation equipment

Application Scenarios

Designed for eye fatigue, dry eye syndrome, dark circles, and post-screen recovery in household/travel steam eye masks or eye spa devices. Compatible with essential oils for aromatherapy applications.

Usage Instructions

Add ≤5ml room-temperature purified water to the tank, wear the mask for 10–15 minutes. After use, power off and air-dry the chip upside down; clean the diaphragm weekly with 70% alcohol cotton swabs. Never use acidic/oily liquids or compress the lens.
