Product details

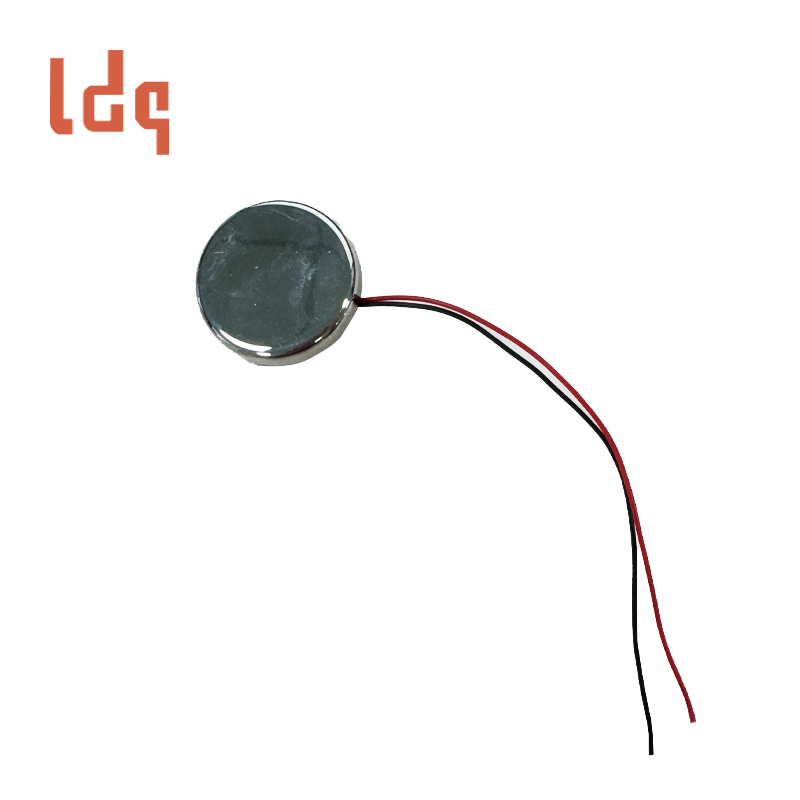

Stainless Steel Flat Convex Atomizing Transducer is a core driving component specially developed for high-end beauty equipment. It is made of military-grade piezoelectric ceramic materials and is made through precision processing technology to ensure that every vibration is accurate and stable. We are well aware of the stringent requirements of beauty equipment on core components, so this product passed a 2000-hour uninterrupted aging test during the research and development stage to ensure that it can maintain excellent performance in various usage environments.

Beauty instrument transducer Product Specifications

Metal seat diameter: Φ30±0.1mm
Piezoelectric ceramic diameter: Φ18±0.3mm
Positioning hole: Φ2.5mm
Fixed hole: M2.5*3
Wire specification: 1571#28 red and black wire, length 80±5mm
Metal seat thickness: 4.5±0.1mm
Overall thickness: 5±0.3mm

Piezoceramic Transducer Features

The surface of the ceramic plate adopts plasma polishing technology, with a roughness of <0.1μm
Special hydrophobic coating treatment, contact angle>110°, to avoid medium residue
Mirror polishing of the metal seat (Ra0.05) to reduce energy loss
Automatically adjust the resonant frequency (±0.1MHz accuracy) to ensure the best working state under different skin types
Built-in temperature compensation algorithm, continuous working temperature fluctuation <±1℃

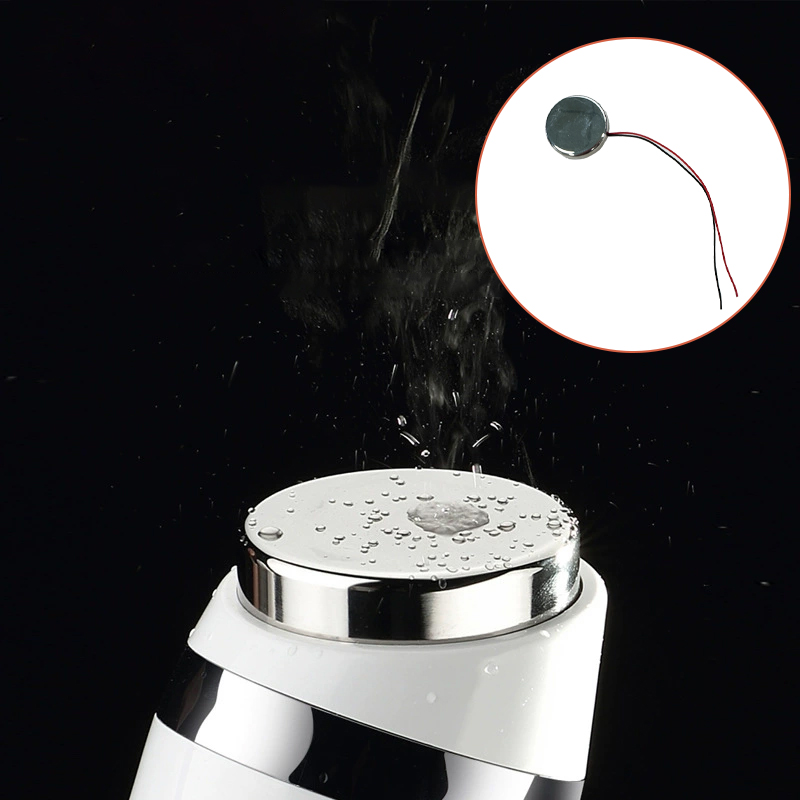

Stainless Steel Flat Convex Atomizing Transducer Industry Applications

Microcurrent-ultrasound synergistic beauty instrument
Freezing ultrasound composite beauty equipment
Customized beauty instrument OEM solution
Ultrasound drug penetration therapy instrument
Medical and aesthetic post-repair special module
Ultrasound-assisted acupuncture treatment equipment
