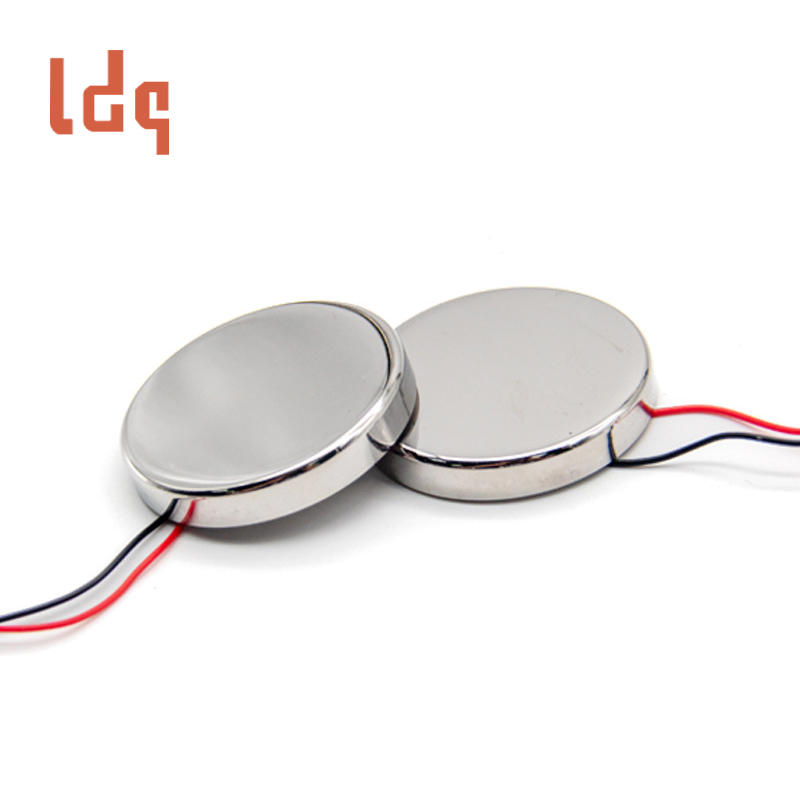

Ultrasonic Transducer For Beauty

2 month ago

6 0 

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

3 month

Product details

Beauty Equipment Ultrasonic Transducer adopts multi-layer piezoelectric ceramic composite technology, and uses precision polarization technology to make the ceramic plate generate stable ultrasonic vibration at a specific frequency. The golden size design of 18mm diameter of the ceramic plate ensures sufficient vibration area and the concentration of energy output. The unique stepped amplitude amplification structure can efficiently transmit micron-level vibration to the atomization surface, realizing uniform atomization of the liquid medium.

Beauty Instrument Transducer Product Specifications

Metal seat diameter: Φ30±0.1mm
Piezoelectric ceramic diameter: Φ18±0.3mm
Positioning hole: Φ2.5mm
Fixed hole: M2.5*3
Wire specification: 1571#28 red and black wire, length 80±5mm
Metal seat thickness: 4.5±0.1mm
Overall thickness: 5±0.3mm

Ultrasonic Transducer for Beauty Devices

Piezoceramic Transducer Features

Precision ceramic technology: using high-quality piezoelectric ceramics (Φ18±0.3mm) and SUS304 stainless steel base (Φ30±0.1mm) to ensure stable and efficient ultrasonic vibration performance
Excellent performance parameters: resonant frequency 1MHz±0.3, impedance ≤300Ω, capacitance 1200PF±15%, meeting the requirements of professional beauty equipment
Durable: design life of about 1000 hours, metal base thickness 4.5±0.1mm, overall thickness 5±0.3mm, solid structure

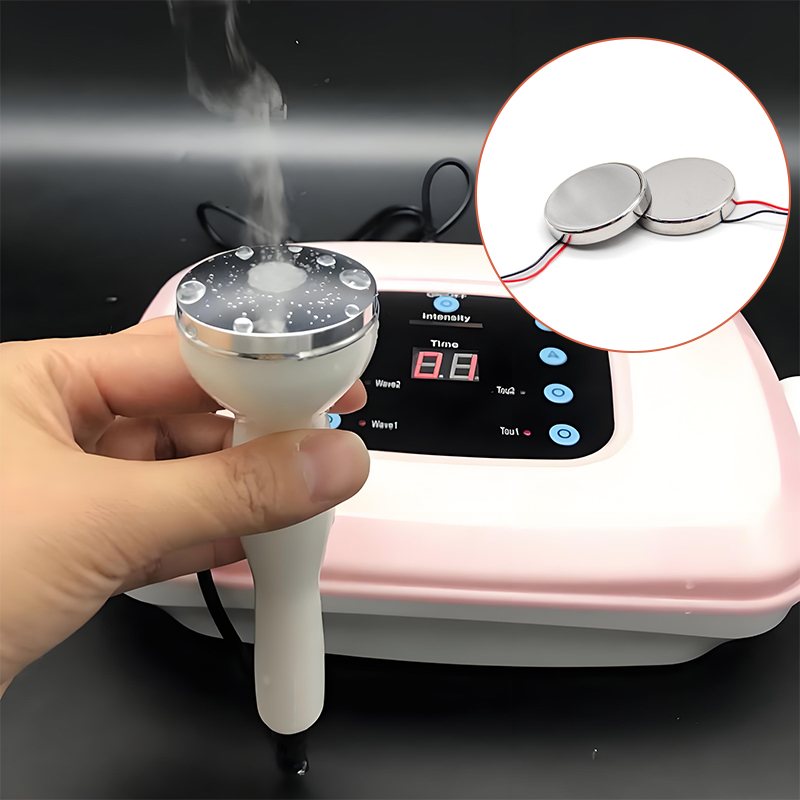

Ultrasonic Beauty Instrument Transducer Industry Applications

When used with ampoule essence, it can atomize nutrients into microparticles with a diameter of about 5μm
Deeply penetrate into the basal layer of the epidermis, increasing the absorption rate by 3-5 times
Especially suitable for the introduction of active ingredients such as VC and hyaluronic acid
Generate high-frequency micro-vibration with special cleaning solution
Can deeply remove oil and cosmetic residues in pores
The vibration frequency can loosen blackhead plugs, and the effect is better when used with a suction head
