Product details

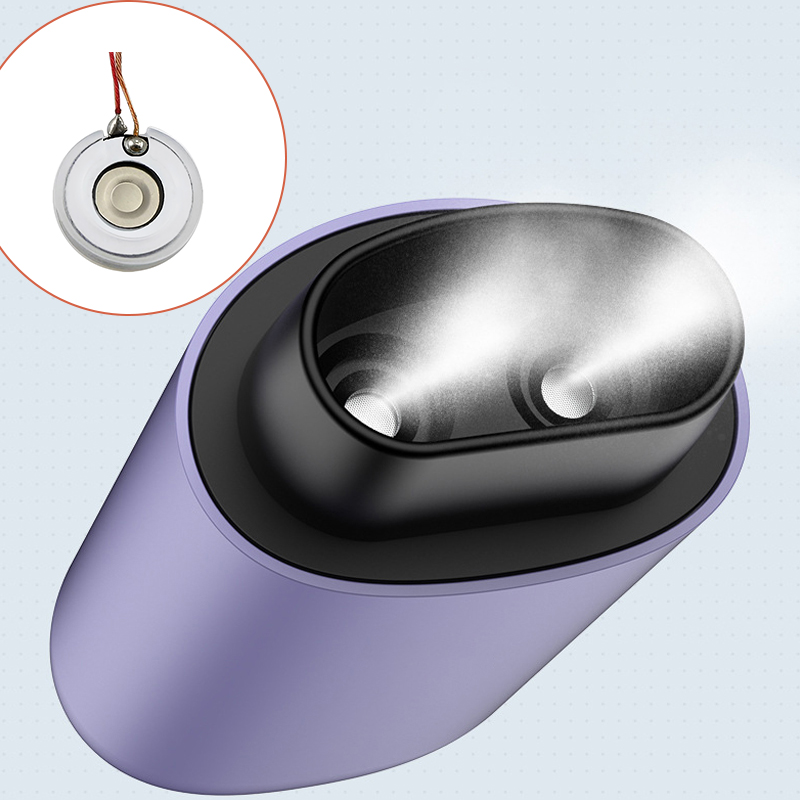

The nebulizer plate of an oral nebulizer is the core component of nebulized inhalation therapy equipment. Through high-frequency vibration, it transforms the medication into inhalable micron-sized aerosol particles that act directly on the respiratory tract. It is a key component ensuring therapeutic efficacy and is compatible with various medical and home oral nebulizers.

The reasons for choosing an oral nebulizer plate are: Precise nebulization: The micron-sized uniform mesh design ensures fine and evenly distributed aerosol particles, high medication utilization, and stable therapeutic effects.

Biosafe and reliable: Utilizing bio-flexible and biocompatible materials, it is odorless and does not react with the medication, protecting the drug's biological activity.

High durability: Corrosion-resistant and anti-aging, it is not easily deformed or broken, with a service life of 3000-5000 hours and easy replacement.

Anti-clogging and easy to clean: High-elasticity materials and a biomimetic structural design ensure high medication throughput, preventing clogging. The surface is easy to wipe clean of scale and residue.

Safety protection and compatibility: Supports functions such as dry-burn protection and overcurrent protection, eliminating the risk of damage under no-load conditions and providing greater peace of mind.

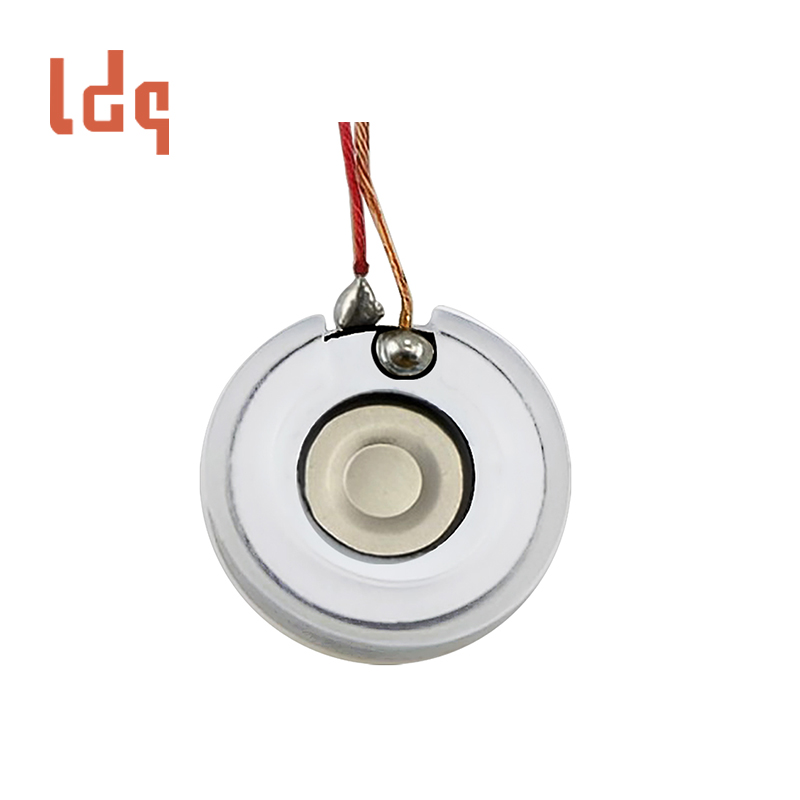

Oral Atomizer Atomizing Plate Product Specifications

Metal sheet: Φ10±0.1
Piezoelectric sheet: Φ10±0.2
Hole area: Φ2±0.2
Hole diameter: 10±1um
Number of holes: 540 holes
Enameled wire gold-red: L=15±3 Wire diameter 0.3
Plastic ring: 11.2±0.5
Bare chip thickness: 0.65±0.1
Plastic ring thickness: 2.0±0.3

Atomizer Plate Features

Working voltage up to 90Vp-p
Capacitance 1300±20%PF
Resonance impedance ≤500Ω
Service life up to more than 1000 hours
Fine and uniform atomization particles, ensuring full atomization of drugs or care solutions
Resonance frequency 155±10KHz, high atomization efficiency

Electronic Oral Sprayer Atomizing Plate Industry Applications

Treatment of respiratory diseases: commonly used to treat asthma and chronic obstructive pulmonary disease
Treatment of nasal diseases: can be used to treat nasal diseases such as rhinitis and sinusitis.
Drug inhalation therapy: For some drugs that need to be administered through the respiratory tract, such as certain antibiotics and antiviral drugs, oral and nasal spray nebulizers can be used as an effective route of administration.
Nasal care: In daily life, oral and nasal spray nebulizers can be used for nasal cleaning and care.

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply
