Product details

J-Tron focuses on the design and production of Micro Gear Pump, Mini Solenoid Valve, and Liquid Control Component. Team up with J-Tron. We Make Things Flow!

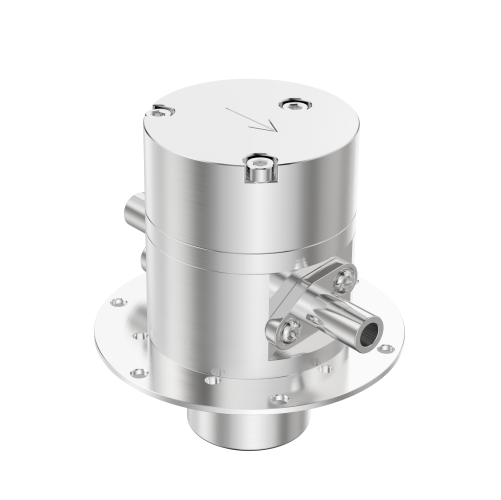

PRODUCT DISCRIPTION: Medical Gear Pump

Imagine a gear pump that not only moves fluids but does so with the precision, safety, and quiet operation required for medical diagnostics, dialysis, and laboratory work. That’s exactly what J-Tron’s GPM series offers— a specialized solution designed from the ground up to thrive in these demanding settings.

What makes the GPM series stand out? For starters, it resists corrosion, ensuring longevity even when exposed to the diverse fluids encountered in medical and lab settings. It delivers fluids with precise dispense，eliminating the inaccuracies that could invalidate test results or compromise patient care. Its flow remains steady and free of pulses, a necessity for protecting delicate biological samples or maintaining consistent treatment rates in dialysis. Plus, it operates quietly and has passed biocompatibility tests, meeting the strict standards for safety in medical applications.

Technical specifications further highlight its capabilities: the pump can handle a maximum inlet leak tight of -1.0Bar and a maximum pressure differential of 10Bar, making it adaptable to various system requirements. Importantly, it achieves these feats while effectively preventing cavitation— a common problem that can cause flow instability. This cavitation control, combined with its pulse-free design, ensures reliable fluid delivery. And with noise levels as low as 33 decibels, the GPM series fits seamlessly into quiet environments where patient comfort and concentration are priorities.

SPECIFICATION: Medical Gear Pump

Technical Parameter
Portfolio	GPM1600	GPM3500	GPM5800
Flow Rate	1.6L at 5400RPM	3.5L at 5400RPM	6L at 5500RPM
Displacement	0.33ml/Rev	0.64ml/Rev	1.09ml/Rev
Suction	2M	2M	2M
Max Differential Pressure	20Bar	8Bar	7Bar
Revolution Range	100~5400RPM	100~5400RPM	500~5500RPM
Viscosity Range	0.5~1500cps	0.5~1500cps	0.5~1500cps
Connection	NPT1/8	NPT1/8	NPT1/8
Material
Pump Body	SS316	SS316	SS316
Gear	PEEK	PEEK	PEEK
Shaft	SS316 or Ceramic	SS316 or Ceramic	SS316 or Ceramic
Magnets	Rare Earth	Rare Earth	Rare Earth
Brushless Motor
Voltage	24V DC	24V DC	24V DC
Drive Control	0~5V DC & PWM 0-100%	0~5V DC & PWM 0-100%	0~5V DC & PWM 0-100%
Power Consumption	40W/70W	40W/70W	40W/70W
