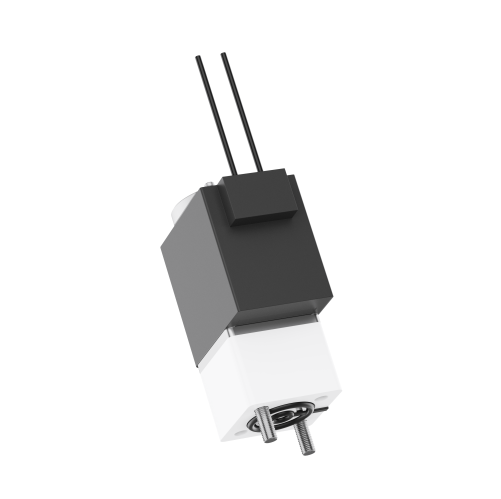

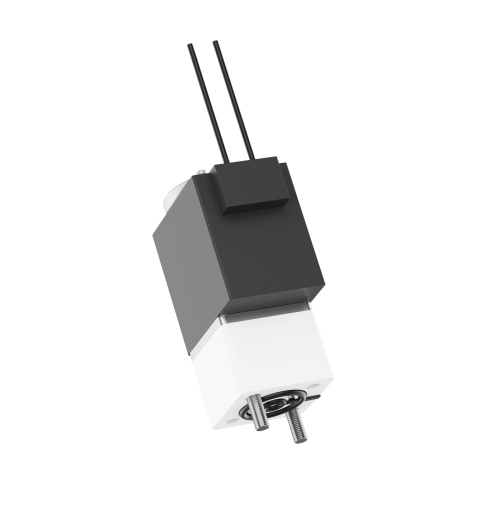

Solenoid Valve with Lead Wire

Established in 2015, J-Tron Technologies Zhuhai Co., Ltd. engages in the design, research and development, and manufacturing of Micro Gear Pump, Mini Solenoid Valve, and precision Liquid Control Component. We further extend our services to bespoke solutions customized to your structural, parametric, and performance requirements.

PRODUCT DISCRIPTION: Mini DC Solenoid Valve

The AR23W150F solenoid valve is constructed with a POM (Polyoxymethylene) valve body, FFKM (Perfluoroelastomer) or EPDM (Ethylene Propylene Diene Monomer) gaskets, and EPDM O-rings—three high-performance materials carefully selected to deliver exceptional performance across a range of critical metrics. When it comes to withstanding extreme temperatures, this solenoid valve excels in both high and low-temperature environments, ensuring reliable operation even when exposed to fluctuating thermal conditions that might compromise the functionality of standard valves. It also demonstrates strong resistance to acids and alkalis, making it suitable for use in chemical processing, industrial cleaning, and other applications where corrosive substances are present. Additionally, the valve boasts excellent wear resistance, which significantly extends its service life by minimizing damage from friction and regular use, while its outstanding stability ensures consistent performance over long periods without unexpected breakdowns or performance drops. The POM valve body further enhances the valve’s utility with inherent self-lubricating properties, reducing internal friction and wear to maintain smooth operation. Compatibility is another key strength of the AR23W150F: it works seamlessly with a wide variety of fluids, including water-based solutions, oils, solvents, and even some aggressive chemical mixtures. This versatility means it can be integrated into diverse industrial systems, from manufacturing equipment to fluid handling setups. Most importantly, the valve is designed to provide a steady, pure flow of either fluids or gases to your equipment for extended durations, preventing contamination and ensuring that your machinery operates at peak efficiency without interruptions caused by inconsistent fluid or gas supply.

SPECIFICATION: Mini DC Solenoid Valve

Technical Parameter		Material
Portfolio	AR23W150F	Body material	POM
Valve Type	Direct, 3 Ports, NC	Bobbing Gasket	EPDM/ FFKM
Orifice Diameter	1.3mm	Valve Bushing Seal Gasket	EPDM
Operating Pressure Range	-0.8~4Bar
Response Time	30ms	Electrical Parameter
Media Temperature Range	0~60°C	Voltage	24V DC Max
Ambient temperature range	0~60°C	Resistance	150ohm
Leak Rate	Bubble Tight at 6Bar	Power Consumption	3.8W
Cycles by Lifetime	7,000,000	Insulation	1000VAC
Coil Connection	Lead Wire
