Product details

J-Tron focuses on the design and production of Micro Gear Pump, Mini Solenoid Valve, and Liquid Control Component. Team up with J-Tron. We Make Things Flow!

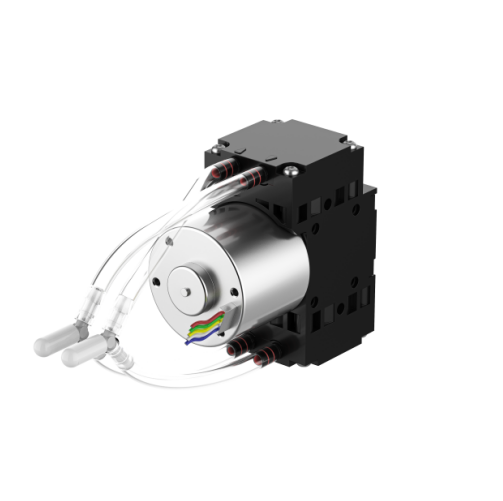

PRODUCT DISCRIPTION: Brushless Micro Diaphragm Air Pump Double Head

J-Tron's Brushless Micro Diaphragm Air Pump Double Head model AQ8500 is designed in accordance with the design principles of positive displacement pumps. It follows J-Tron's minimalism design style, bosting an elegant and sophisticated appearance. Equipped with a high-performance brushless motor and customized high-quality EPDM from Germany diaphragm, the AQ8500 delivers stable and reliable peformance. It requires no daily maintenance and features an extended service life.

KEY FEATURES

*Maintenance-free

*Strong corrosion resistance

*Excellent reliability & stability

*No noise

*Contamination free transfer

*High performance

*Low pulsation

*Brushless motor

MAIN APPLICATION

*Analytical instrument

*Emission monitoring

*Fuel cells

*Gas analytics

*Inkjet printing

*Lab equipment

*Medical equipment

*Security and defense

*Vacuum technology

*Agriculture

*Automotive

*Cleaning and disinfection

*Climate technology

*Food & Beverage

*Semi-conductors

SPECIFICATION: Brushless Micro Diaphragm Air Pump Double Head

Technical Parameter
Portfolio	AQ8500
Max Air Flow Rate	12L/min at 5000RPM
Rated Air Flow Rate	9L/min at 3500RPM
Revolution Range	0~5000RPM
Connection	TubeΦ6Φ4
Material
Pump Body	PPS+PA6
Brushless Motor
Voltage	24V DC
Drive Control	0~5V DC
Power Consumption	12W
