Gear Pump with Brushless Motor

2 month ago

2 0 

5 month

Product details

ABOUT J-Tron

Founded in 2015, J-Tron Technologies Zhuhai Co.,Ltd focuses on three key areas: designing Micro Gear Pump, Mini Solenoid Valve, and Liquid Control Component. Additionally, the company provides customized solutions to address your specific needs regarding parameters, performance, structure, and more.

The company’s 10,000-plus square meter facility houses design teams, machinery workshops, injection moulding sections, quality measurement laboratories, assembly lines, and a clean room for product testing. When developing pump solutions for customers, J-Tron considers factors such as the intended application, contact media, working environment, and installation dimensions to ensure the solutions are tailored during design, production, and testing.

Boasting several national patents and ISO certification, J-Tron’s team has also independently created advanced manufacturing equipment and testing systems.

Serving a wide range of industries and applications, J-Tron goes beyond being a pump and valve producer. It is dedicated to using cross-disciplinary knowledge to help you find the most technically viable solutions that align with your personal requirements and budget. Feel free to reach out for technical support.

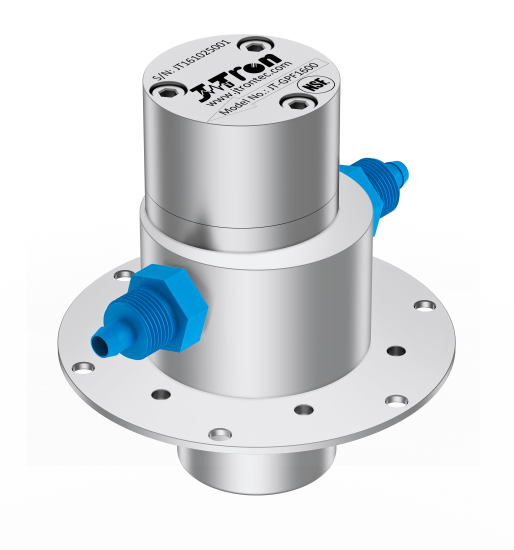

SPECIFICATION: Stainless Steel 316 Positive Displacement Pump

Technical Parameter
Portfolio	GPI1600 GPI3500 GPI5800
Flow Rate	1.6L at 5400RPM 3.5L at 5400RPM 6L at 5500RPM
Displacement	0.33ml/Rev 0.64ml/Rev 1.09ml/Rev
Suction	2Meter
Max Differential Pressure	20Bar 8Bar 7Bar
Revolution Range	100~5400RPM 100~5400RPM 500~5500RPM
Viscosity Range	0.5~1500cps
Connection	NPT1/8
Material
Pump Body	SS316
Gear	PEEK
Shaft	SS316
Magnets	Rare Earth
Brushless Motor
Voltage	24V DC
Drive Control	0~5V DC & PWM 0-100%
Power Consumption	40W/70W

KEY FEATURES

*Lifespan ＞20000 hours

*Stable and continuous flow without pulses

*Low power consumption

*Corrosion resistance

*High temperature resistance

*Abrasive resistance

*3% repeat flow rate accuracy

*Low noise-Min 33 dB

APPLICATIONS

*Printing

*Medical equipment

*Envirnonment monitoring device

*Industrial equipment

*Cooling system

*Emission control
*Food & Beverage
