Solenoid Valve with Flat Tab

5 month ago

9 0 

8 month

Product details

As a global leader in motion and control technologies, J-Tron is more than a supplier—it’s a partner dedicated to advancing your business and driving global progress. Our product portfolio spans from core components to fully integrated solutions: Micro Gear Pump, Mini Solenoid Valve, Liquid Control Component, and highly sophisticated automation system. Each innovation plays a critical role in powering life-saving medical devices, as well as scientific instruments that accelerate drug discovery and enable accurate pathogen detection.

Beyond supporting critical industries, our technologies deliver tangible business value: they help reduce your time to market, getting your products from concept to customers faster, while lowering your overall cost of ownership—minimizing long-term operational expenses.

When you partner with J-Tron, you’re not just accessing cutting-edge motion and control solutions—you’re unlocking the potential to move nearly anything. After all, our mission says it best: We Make Energy Flow.

PRODUCT DISCRIPTION: 24V DC Solenoid Valve

The AR22T150EF solenoid valve features a POM valve body, FFKM gaskets, and EPDM O-rings. It delivers outstanding performance in withstanding high and low temperatures, resisting acids and alkalis, enduring wear, maintaining stability, and providing self-lubrication. Compatible with a variety of fluids, it can consistently supply stable and pure fluid or gas to your equipment for long-term operation.

SPECIFICATION: 24V DC Solenoid Valve

Technical Parameter
Portfolio	AR22T150EF
Valve Type	Direct, 2 ports, NC
Orifice Diameter	1.3mm
Operating Pressure Range	-0.8~4Bar
Response Time	30ms
Media Temperature Range	0~60°C
Ambient Temperature Range	0~60°C
Leak Rate	Bubble tight at 6 bar
Cycles by Lifetime	7,000,000
Coil Connection	Flat tabs
Material
Body Material	POM
Bobbin Gasket	FFKM
Valve Bobbin Seal Gasket	EPDM
Electrical Parameter
Voltage	24V DC Max
Resistance	150ohm
Power Consumption	3.8W
Insulation	1000VAC

Similar Video Recommendation

< >

PEEK Gears and SS316L Shaft

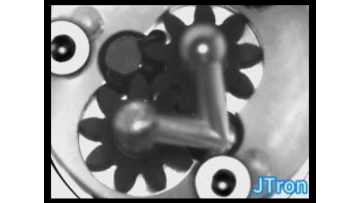

Demostration of the Operation of Gear Pumps
