J-Tron focuses on the design and production of Micro Gear Pump, Mini Solenoid Valve, and Liquid Control Component. Just share your technical specifications, operating conditions, and assembly dimensions with us. Our expert team will then craft customized solutions and product designs that align perfectly with your requirements.

PRODUCT DISCRIPTION: High Quality DC Solenoid Valves

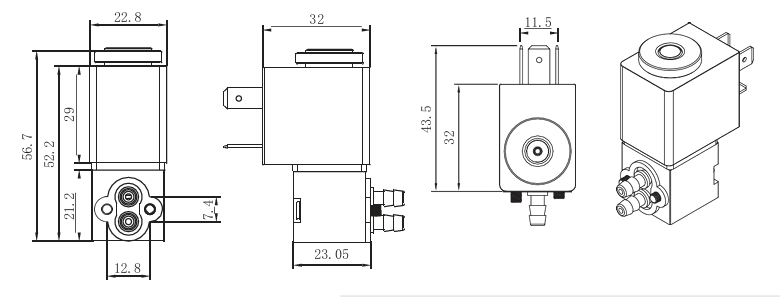

J-Tron's High Quality DC Solenoid Valve model AR22T150FP1.8 is a 24V DC direct-acting, NC valve. It features an orifice diameter of 1.3mm, an operating pressure range of -0.8~4bar, and a response time of 30ms. As such, the AR22T150FP1.8 boasts a small size and a simple, compact design, making it ideal for high-precision dispense situations.

The following form displays the details and key parameter for AR22T150FP1.8. If you want more information, please feel free to contact us!

SPECIFICATION: High Quality DC Solenoid Valves

Technical Parameter
Portfolio	AR22T150FP1.8
Valve Type	Direct, 2 Ports, Normally Closed
Orifice Diameter	1.3mm
Operating Pressure Range	-0.8~4Bar
Response Time	30ms
Media Temperature Range	0~60°C
Ambient temperature range	0~60°C
Leak Rate	Bubble Tight at 6Bar
Cycles by Lifetime	7,000,000
Coil Connection	Flat Tabs
Material
Body material	POM
Bobbing Gasket	FFKM
Valve Bushing Seal Gasket	PTFE
Electrical Parameter
Voltage	24V DC Max
Resistance	150ohm
Power Consumption	3.8W
Insulation	1000VAC
