J-Tron focuses on the design and production of Micro Gear Pump, Mini Solenoid Valve, and Liquid Control Component. Team up with J-Tron. We Make Things Flow!

Version 2: The Engineering Excellence of J-Tron’s GPT Series Gear Pumps

In industrial settings where equipment faces relentless stress—from heavy mechanical loads to contact with abrasive, particle-rich media—performance and durability are not just preferences but requirements. J-Tron’s GPT Series gear pumps are engineered to excel in these exact conditions, starting with their foundational material: tungsten steel. This high-performance alloy brings together a rare combination of traits that set the pumps apart: exceptional hardness to resist deformation under pressure, superior wear resistance to withstand constant friction, impressive tolerance for extreme temperatures (critical in high-heat industrial processes), and robust corrosion resistance to stand up to harsh chemicals. Together, these properties make the GPT Series uniquely capable of thriving where conventional pumps would fail, whether in environments with heavy operational loads or those handling media laced with grit or particulate matter.

To further enhance their resilience, the GPT Series undergoes an advanced surface treatment: a Titanium Nitride (TiN) coating applied using Physical Vapor Deposition (PVD) technology. This thin yet durable layer acts as a protective barrier, reducing friction, minimizing wear from repeated use, and boosting corrosion resistance—qualities that extend the pumps’ service life even in the most punishing conditions. It’s this combination of premium base material and advanced coating that makes the GPT Series a top choice for industries with uncompromising standards. Among these are pharmaceutical manufacturing, where equipment must resist aggressive cleaning agents and maintain precision; petroleum operations, which involve contact with corrosive hydrocarbons; chemical processing plants, handling caustic substances; energy production facilities, operating under high temperatures and pressures; and military applications, where reliability in unpredictable environments is non-negotiable.

What truly validates the GPT Series’ durability is its performance under rigorous testing. The pumps have been subjected to continuous operation exceeding 20,000 hours—a span equivalent to more than two years of nonstop use in industrial settings. Throughout this extensive trial, engineers observed no measurable wear on any components, no signs of degradation from heat or friction, and no loss of performance. This track record isn’t just a testament to the quality of materials and craftsmanship; it’s a promise to industries that rely on equipment to function flawlessly, even when pushed to their limits. For operations where downtime is costly and failure is not an option, the GPT Series delivers the reliability and longevity needed to keep critical processes running smoothly.

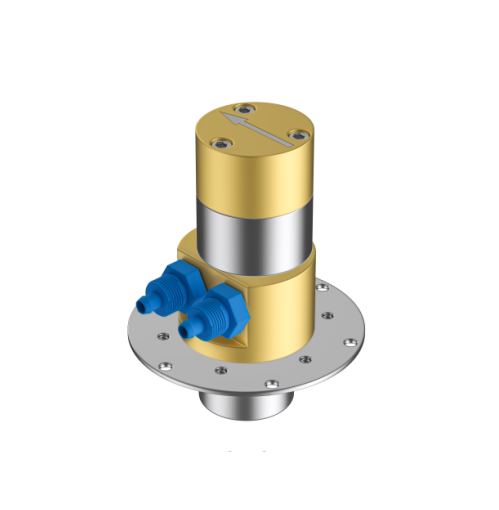

SPECIFICATION: Wear-Resisting Micro Gear Pump

Technical Parameter
Portfolio	GPT3500
Flow Rate	3.5L at 5500RPM
Displacement	0.63ml/Rev
Suction	2M
Max Differential Pressure	8Bar
Revolution Range	500~5500RPM
Viscosity Range	0.5~1500cps
Connection	NPT1/8
Material
Pump Body	TiN Coated SS316
Gear	Tungsten Carbide
Shaft	Ceramic
Magnets	Rare Earth
Brushless Motor
Voltage	24V DC
Drive Control	0~5V DC & PWM 0-100%
Power Consumption	70W
