Product details

When you collaborate with the global leader in motion and control technologies, you can expect to drive both your business and the world forward. Ranging from Micro Gear Pump, Mini Solenoid Valve, and Liquid Control Component to highly integrated automation systems, our innovations play a vital role in the medical industry, automation sector, printing field, cooling systems, and scientific development. What's more, we are crucial for reducing time to market and cutting your total cost of ownership. So team up with J-Tron and We Make Energy Flow.

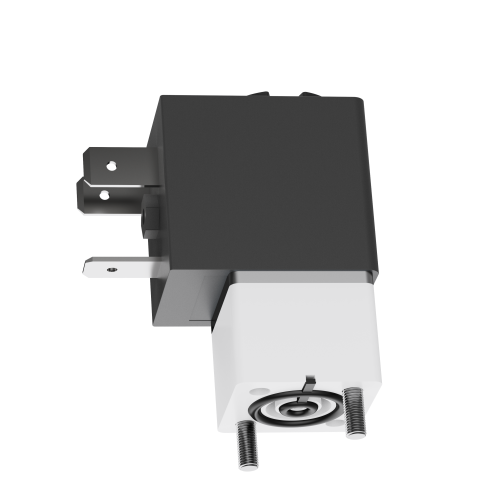

PRODUCT DISCRIPTION: 2-Way Micro Solenoid Valve

J-Tron's 2-Way Micro Solenoid Valve--AR22T150FP1.1 is 24V DC direct-acting valve type, normally closed. Its orifice diameter is 1.1mm. The operating pressure range is -0.8~4bar. Its response time is 30ms. The method for the coil connection is flab tabs. Thereby, AR22T150FP1.1 is characterized with small size, simple and compact design.

Model AR22T150FP1.1 is appliable for both liquid and gas. It is assembled with POM valve body, FFKM bobbing gasket, and PTFE O-ring. These crticial materials ensure AR22T150FP1.1 an outstanding performance under negative pressure. It is typically used in high-precision despense applications, such as beverage process, HVAC system, automative manufacturing, water treatment, firefighting and safety systems, medical equipment and critical markets.

SPECIFICATION: 2-Way Micro Solenoid Valve

Technical Parameter
Portfolio	AR22T150FP1.1
Valve Type	Direct, 2 Ports, Normally Closed
Orifice Diameter	1.1mm
Operating Pressure Range	-0.8~4Bar
Response Time	30ms
Media Temperature Range	0~60°C
Ambient temperature range	0~60°C
Leak Rate	Bubble Tight at 6Bar
Cycles by Lifetime	7,000,000
Coil Connection	Flat Tabs
Material
Body material	POM
Bobbing Gasket	FFKM
Valve Bushing Seal Gasket	PTFE
Electrical Parameter
Voltage	24V DC Max
Resistance	150ohm
Power Consumption	3.8W
Insulation	1000VAC
