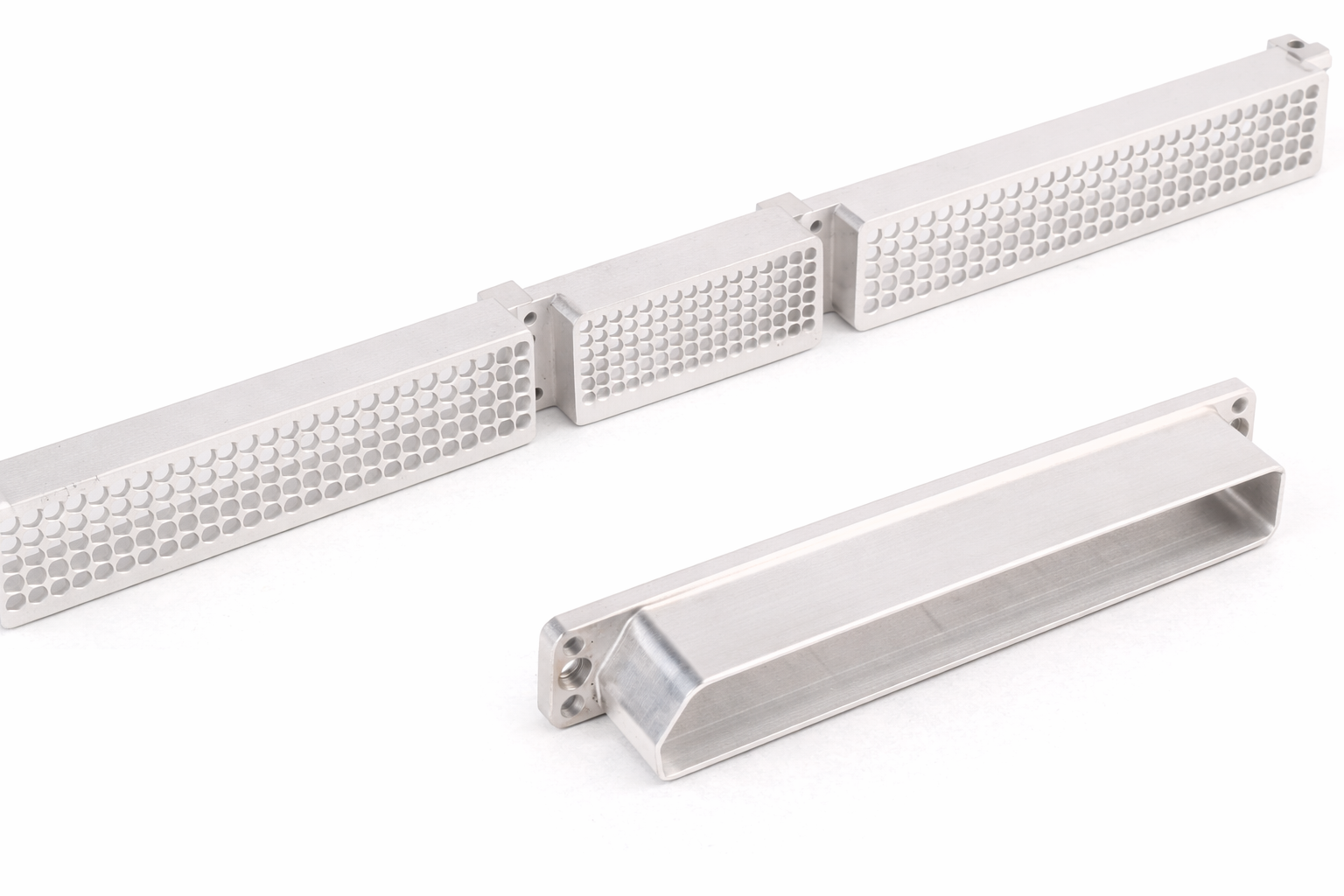

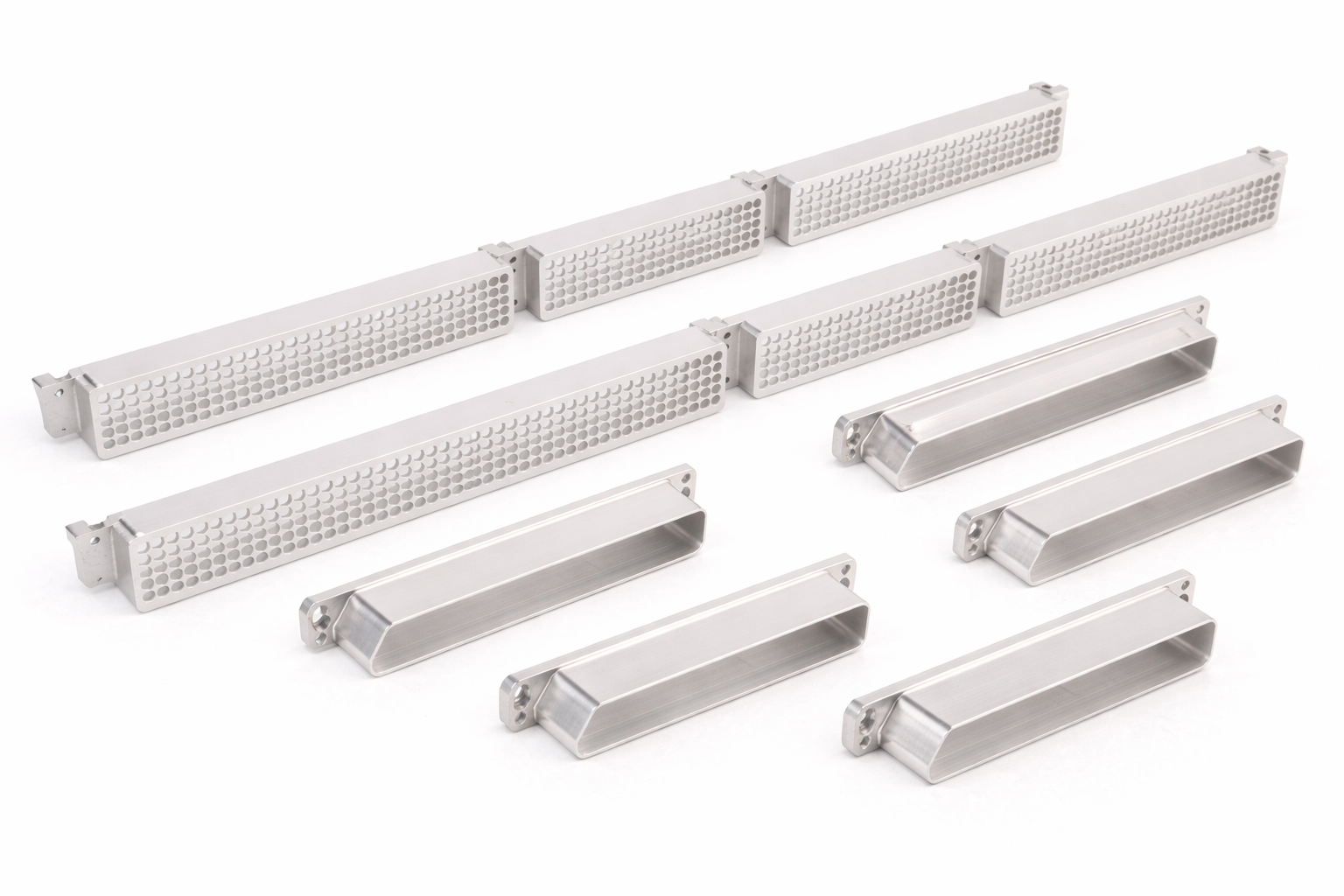

This product is a precision linear structural component in optical fiber communication systems. It is formed by aluminum alloy CNC precision machining and undergoes surface treatment processes such as anodizing. It has excellent heat dissipation performance, structural stability, and assembly consistency, and is widely used in high-speed optical communication and industrial communication equipment. The main processing adop as below:

CNC precision machining: Using CNC milling + precision contour machining, Features: Long strip parts with multi-surface machining/Lattice hole / honeycomb hole arrays are formed by program milling/The end structure and assembly interface need to be completed through multiple clampings. And High processing requirements for Stability of tool paths/Dimensional consistency/Prevention of deformation during processing of long workpieces.
Drilling / Milling groove / Finishing process: End mounting holes, positioning holes/Internal structural slot (for airflow, optical paths, or cables)/Refine the edges and corners to ensure safety in assembly and operation.

A stringent quality inspection process is implemented during the production of such precision structural components for fiber optic communication. All critical dimensions and assembly datum surfaces are subject to full or sampling inspection using a Coordinate Measuring Machine (CMM), with a focus on the straightness, parallelism of elongated structures, position accuracy of hole arrays, and flatness of end mounting surfaces. Meanwhile, digital calipers, plug gauges, and go-no-go gauges are used to recheck assembly hole diameters and interface dimensions, ensuring batch consistency and assembly reliability. In terms of surface quality, inspections are conducted on the film thickness, adhesion, and appearance consistency of the anodized layer to prevent burrs, scratches, or orifice defects from affecting fiber optic connection and heat dissipation performance.

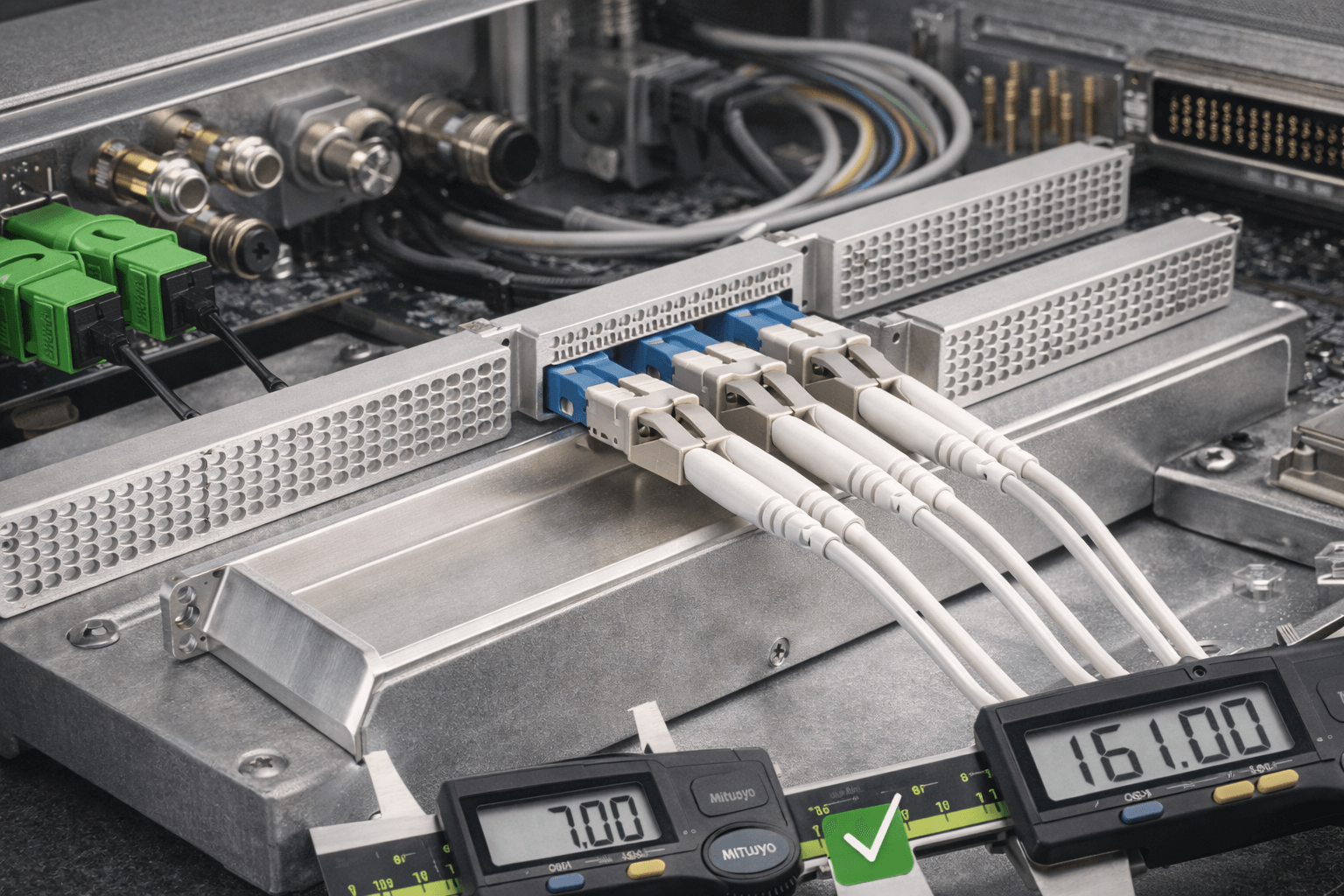

In terms of applications, these products are widely used in high-speed fiber optic communication modules, data center switching equipment, heat dissipation and protection structures for optoelectronic boards, as well as industrial and carrier-grade communication systems. They provide stable structural support, effective heat dissipation, and reliable protection for fiber optic interfaces in high-density wiring and continuous operation environments, making them indispensable precision structural components in modern optoelectronic communication equipment.

More products, pls check links: CNC machining parts, aerospace components, 5 Axis cnc machining, cnc milling parts etc.
