Product details

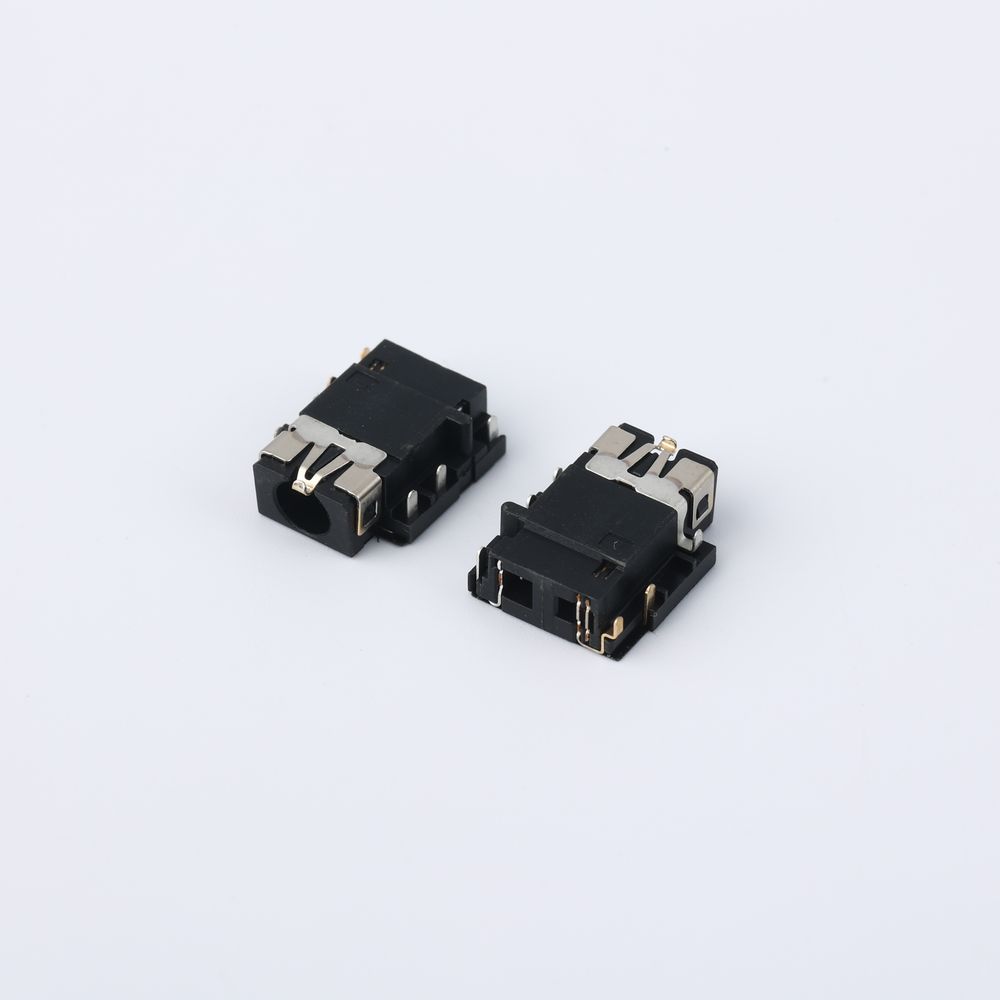

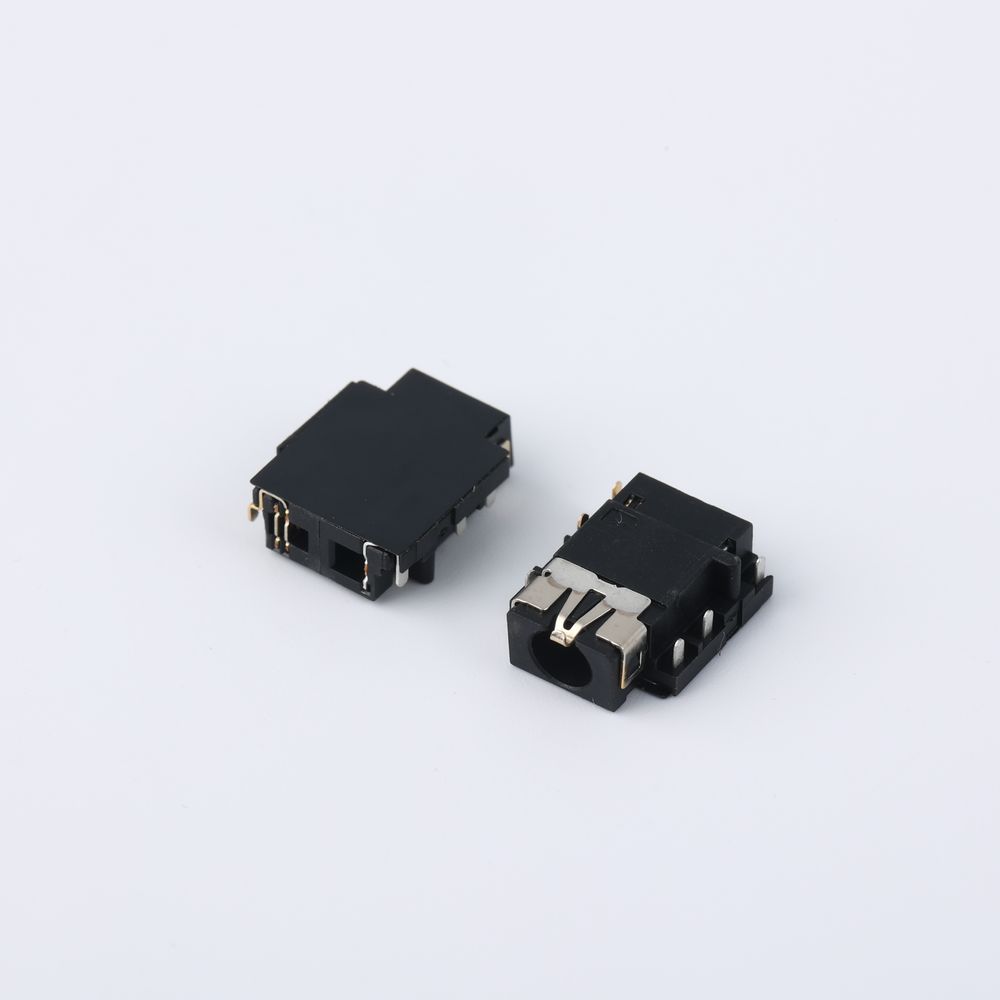

3.5 mm jack connector with three rings and four levels of recessed plate inclined center 0.20. This structure supports stereo output + microphone input + remote control function, and is widely used in smart terminals and professional audio equipment.

Material：

HOUSING:	HIGH TEMP PLASTIC BLACK
SEPARATOR:	HIGH TEMP PLASTIC BLACK
CONTACT-1:	PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN, TIN 50U'' MIN
CONTACT-2:	PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN, TIN 50U'' MIN
CONTACT-3:	PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN, TIN 50U'' MIN
CONTACT-4:	PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN, TIN 50U'' MIN
CONTACT-5:	PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN
CONTACT-6:	PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN
MALAR:	T=0.8mm, BLACK
CURUENT RATING:	0.5AMP
VOLTAGE RATING:	12VAC RMS
CONTACT RESISTANCE:	50mΩ MAX.(initial), 100mΩ MIN (after humidity test)
INSULATION RESISTANCE:	100mΩ MIN, 500VDC (initial), 100mΩ MIN 500VDC (after humidity test)
DIELECTRIC WITHSTANDING VOLTAGE:	500VAC RMS 50 (60) HZ FOR 1 MINUTE
INSERTION FORCE :	3.0Kgf MAX
WITHDRAWAL FRCE :	0.3Kgf MAX
OPERATING LIFE:	5000 CYCLES MIN
OPERATING TEMPERATURE:	-30℃~+80℃

The 3.5mm phone jack connector should be noted that the CTIA (L-R-GND-MIC) and OMTP (L-R-MIC-GND) standards are incompatible with each other, and mixed use will result in microphone failure or noise. The audio jack connector is used in high-end smartphones, portable recording devices, game consoles, etc., supporting dual functions of headphones and microphones.
