Product details

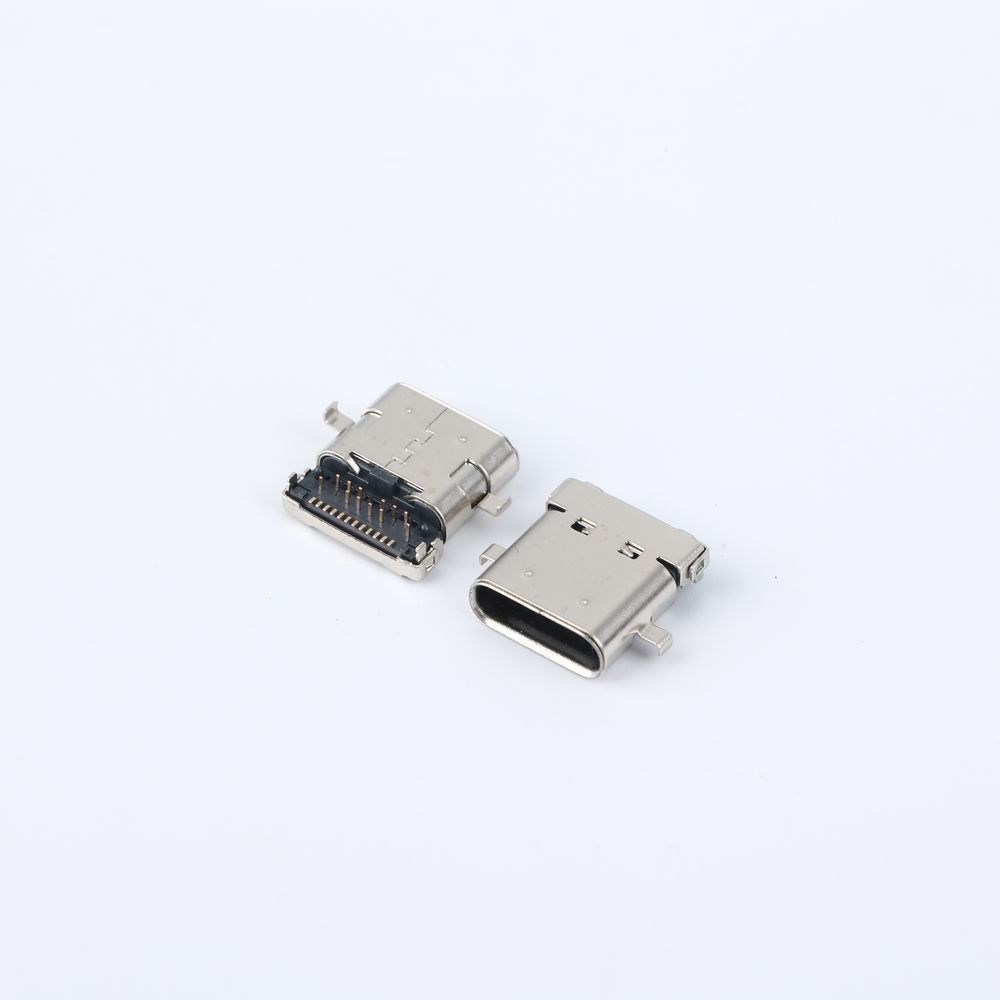

The Type-C connector 24PIN DIP + SMT dual-shell is an industrial-grade connector specifically designed for high-reliability scenarios. Dual-shell design provides mechanical fixation and enhances electromagnetic shielding (EMI), making it suitable for vibration environments. Supports USB 3.2/USB4 data transmission and 100W PD fast charging. You’ll find the usb c connector in laptops, tablets, smartphones, and all kinds of peripherals—basically, it lets everything connect smoothly and do more, without weighing you down or slowing you down. It’s got a bunch of perks—like super-fast, reliable connections and signal transfer; it saves space while packing more features into a smaller area; and it’s built to last.

24PIN usb type c connector

MATERIAL:

MOLDING:	LCP UL94 V-0 NLACK
CONTACT:	COPPER ALLOY
	G/F PLATED GOLD ON CANTACT AREA
	G/F GOLD ON SOLDER AREA
	50u” NICKEL PLATING OVER ALL
OUTER SHELL:	SUS304-H, T=0.20+0.03mm
	50u”NICKEL SOLDER AREA TAIL
INNER SHELL:	SUS304, T=0.2+0.03mm
EMI SHILD:	SUS304, T=0.12+0.03mm
LATCH:	SUS301, T=0.15+0.03mm
MECHANICAL:
INSERTION:	5~20N
EXTRACTION:	8~20N
DURABILITY:	10000 CYCLES
ELECTRICAL:
CURRENT:	5A MAX FOR VBUS, 1.25A FOR GND, 025A FOR OTHER
VOLTAGE:	20VDC MAX
WITHSTANDING VOLTAGE:	100V AC
CONTACT RESISTANCE:	40m MAX
INSULATION RESISTANCE:	100M MIN
TEMPERATURE RANGE:	-40℃ ~ +85℃
