Product details

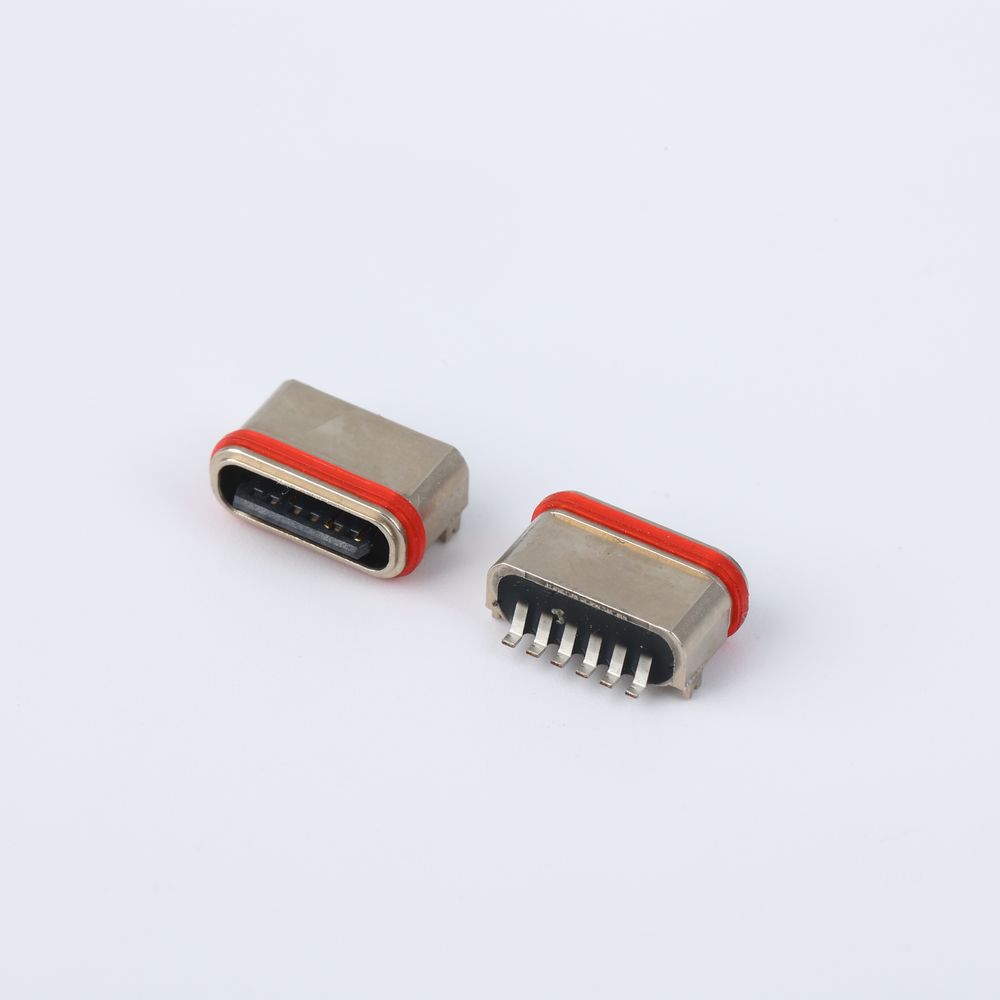

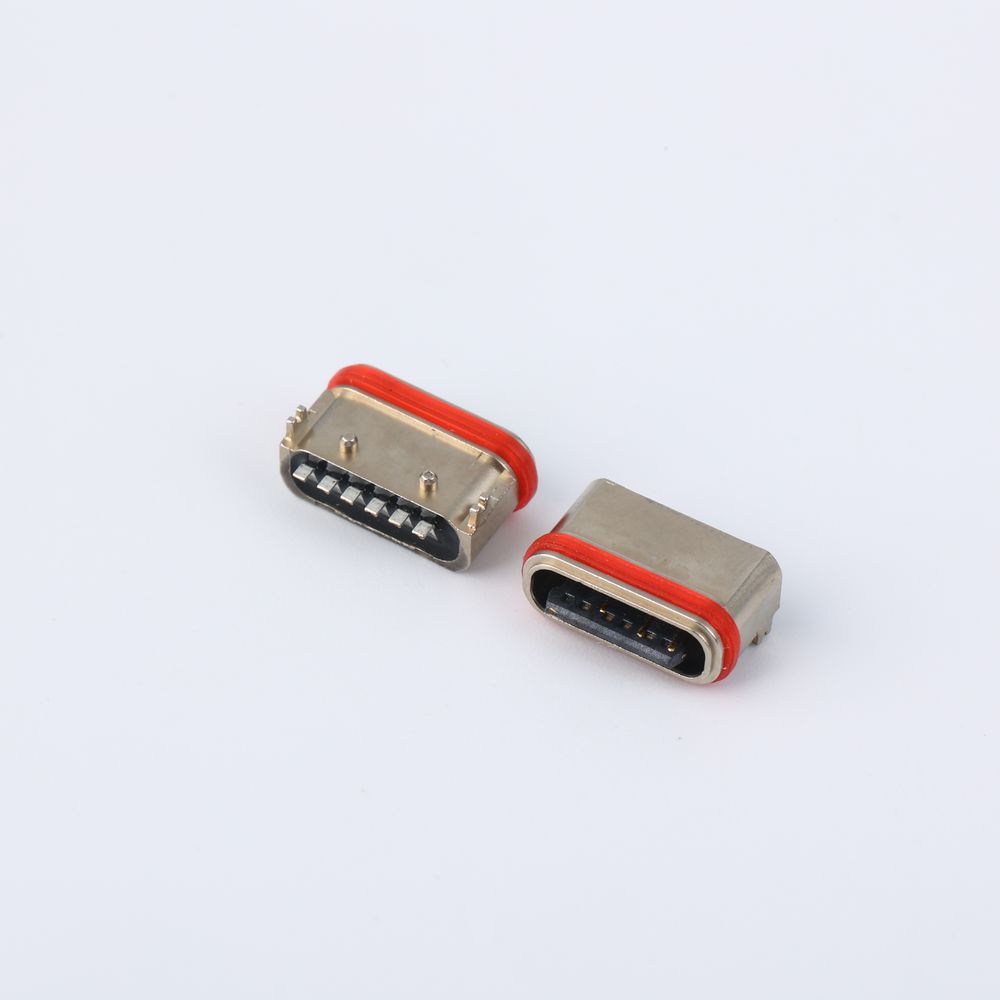

The 6-pin waterproof type c, zinc alloy casing and SMT process interface on the TYPE-C board is mainly used in scenarios where a large current charge is required but data transmission is not necessary, such as wearable devices like electric toothbrushes, beauty devices, and razors. The type c waterproof connector realizes the charging function through 6 pins (GND, VBUS, CC1, CC2), supports IPX7 level waterproof, and is suitable for use in outdoor or humid environments.

6PIN waterproof usb c connector:

MATERIAL SPECIFICATION:

HOUSING:	LCP UL94V-0 BLACK.
CONTACTS:	COPPER ALLOY G/F
SHELL:	METAL ALLOY
MIDDLE PLSTE:	SUS
ELECTRICAL:
CURUENT RATING:
VBUS AND GEN CONTACTS RATED AT 3A MAX
VBUS AND GEN CONTACTS RATED AT 0.5A MAX
0.9Amps MAX FOR A TOTAL OF 5A
INITIAL CONTACT RESISTANCE:	40 MILLIOHMS
DIELECTRIC WITHSTANDING VOLTAGE:	100V AC MIN
MECHANICAL CHARACTERISTICS:
INSERTION FORCE :	5~20N
WITHDRAWAL FRCE :	8~20N (INITIAL), 6~20N (AFTER 10000 CYCLES)
FREQUENCE:	200±50 CYCLES/HOUR, 10000 CYCLES
OPERATING TEMPERATURE:	-40℃~+80℃
