Product details

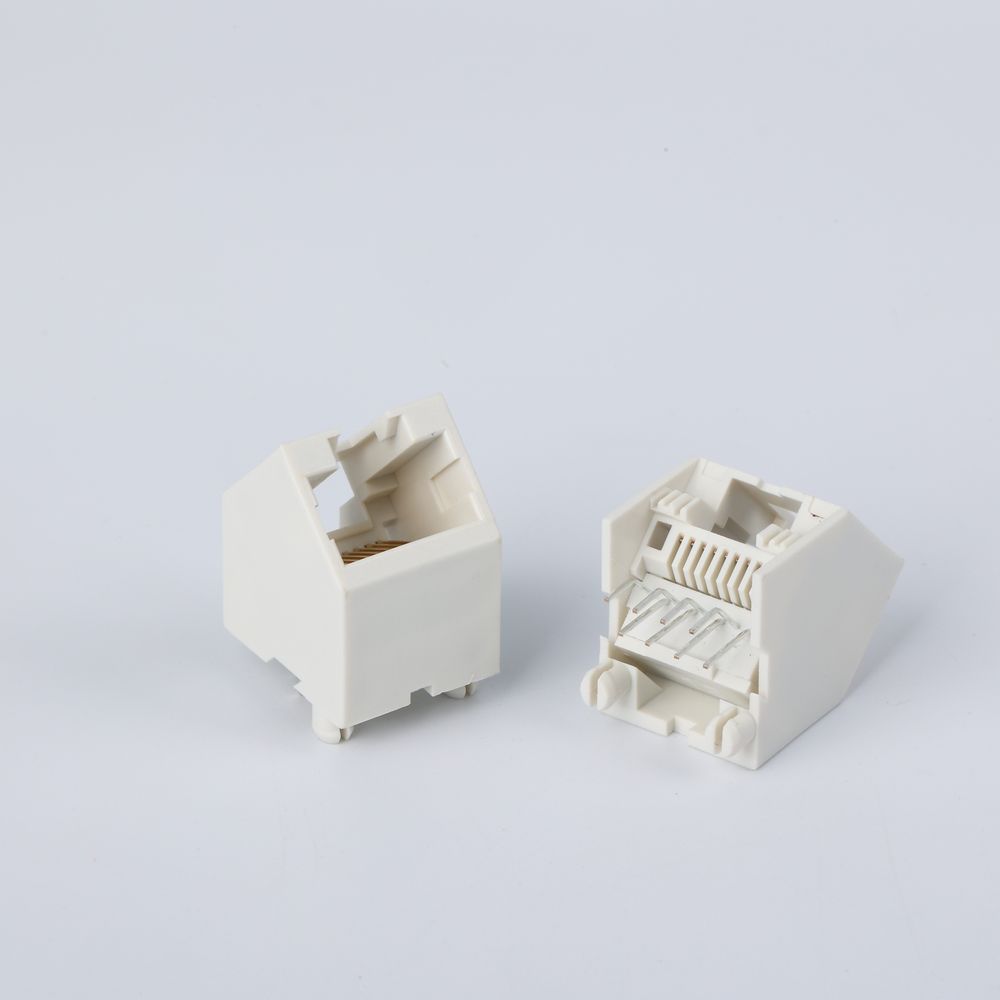

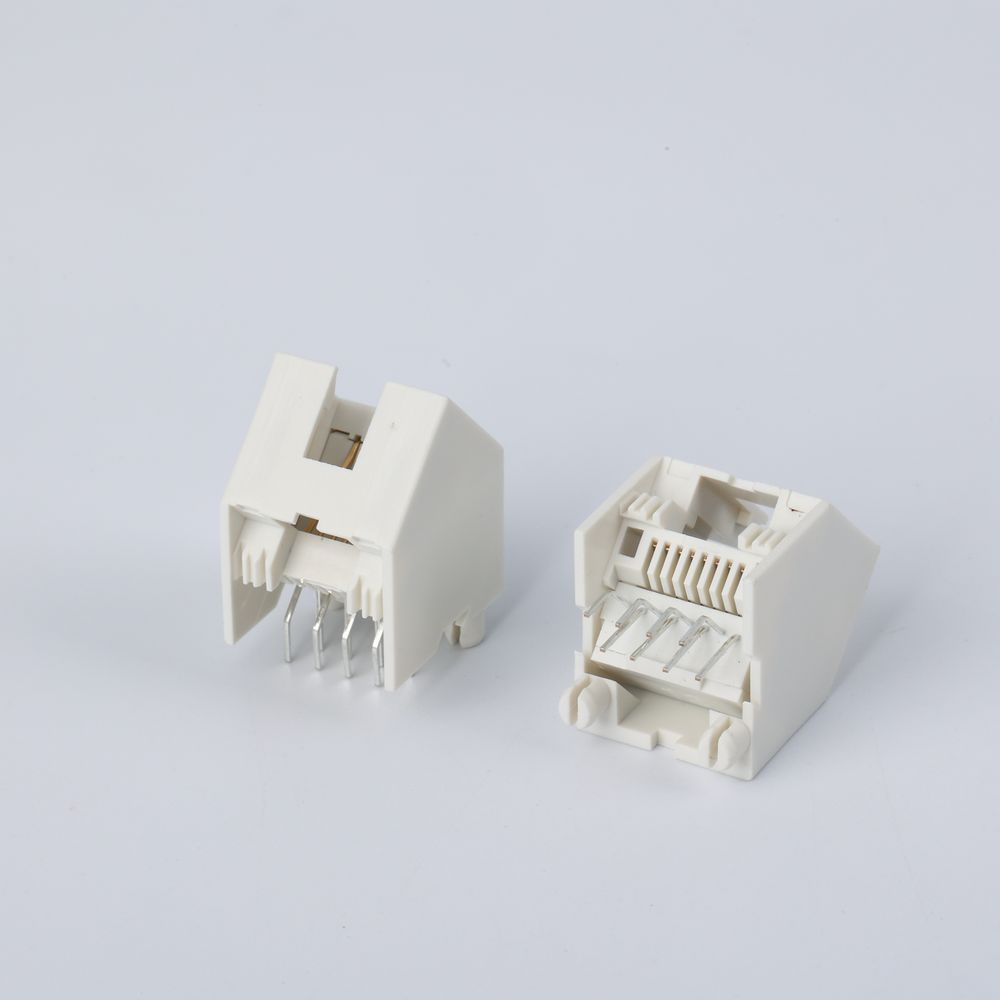

The 45-degree plug-in design and flat-pin structure of the rj 45 can make full use of the space around the PCB, achieving ultra-high density layout. The all-plastic housing and LED-free design significantly reduce materials and manufacturing processes. The flat-pin (SMT) design is compatible with automated surface mount welding, with high production efficiency.

Material description
HOUSING & INSERT:	PBT WHITE UL94V-0
CONTACT:	COPPER ALLOY T=0.35mm, 30U'' MIN NICKEL PATING IN THE WHOLE AREA, 1U'' GOLD PLATING ON THE POINT OF CONTACT, 50U''MIN TIN PLATING IN SOLDER AREA
ELECTRICAL:
CURUENT RATING:	1.5AMP
VOLTAGE RATING:	125VAC RMS
CONTACT RESISTANCE:	20mΩ MAX
INSULATION RESISTANCE:	1000mΩ MIN AT 500VDC
DIELECTRIC STRENGTH:	1000VAC RMS 60HZ 1MIN
OPERATING LIFE:	600 CYCLES MIN
STORAGE TEMPERATURE:	-40℃~+85℃, HUMIDITY ＜70%
OPERATING TEMPERATURE:	-40℃~+85℃

rj45 socket without LED

Usually uses gold-plated terminals to ensure the stability and reliability of signal transmission. Used in Smart meters, substation monitoring terminals, which require stable operation in strong electromagnetic fields. The RJ45 connector all-plastic 45-degree plug-in flat-pin is a "space wizard" for high-density, low-cost fixed deployment, especially suitable for scenarios with extremely limited space, cost sensitivity, and no frequent plugging and unplugging.
