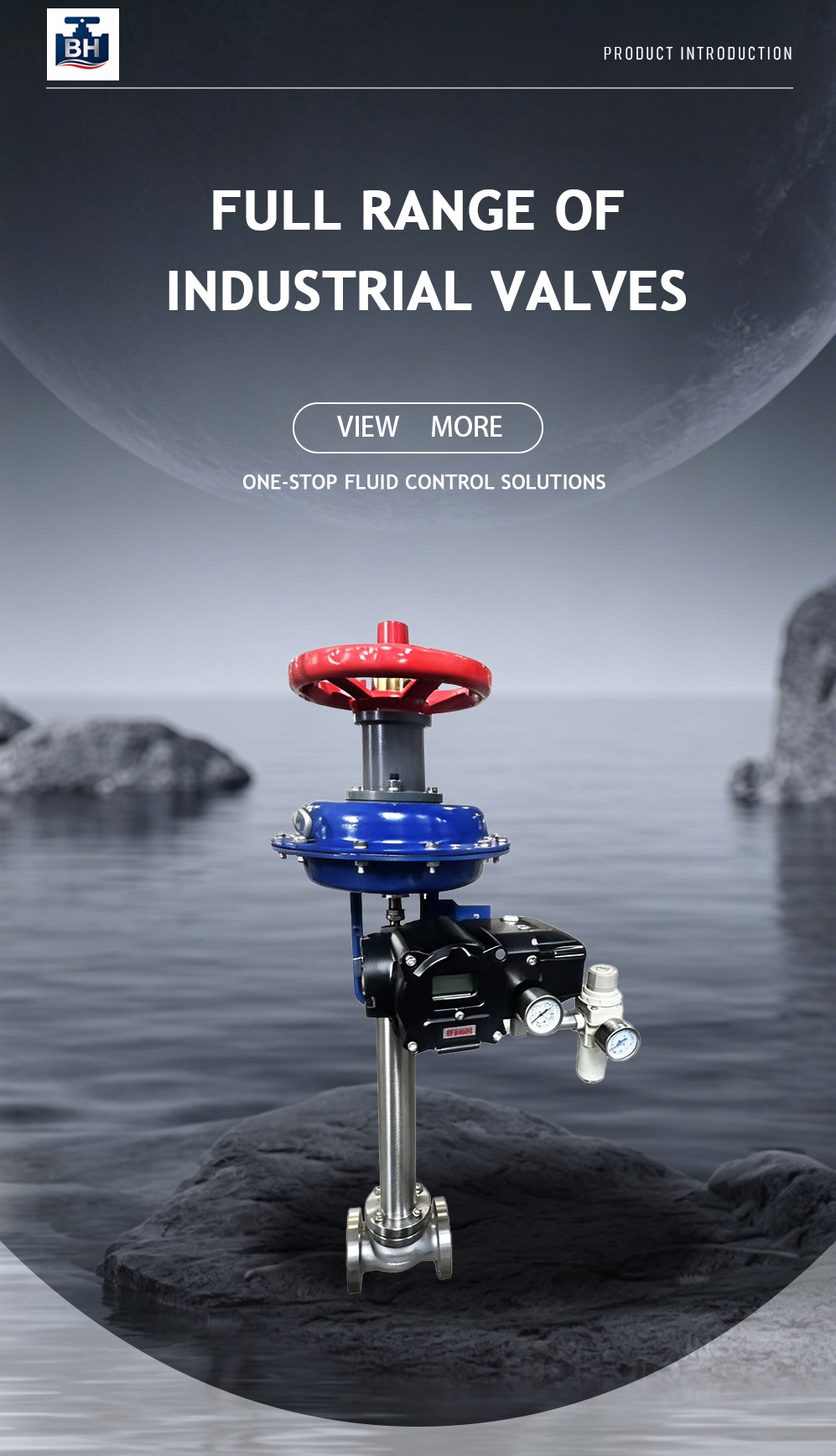

Pneumatic Diaphragm Single Seat Control Valve DN25 – Installation and Stroke Setting

4 week ago

5 0 

Hangzhou Baoheng Valve Manufacturing Co., Ltd.

3 month

Product details

The Pneumatic Diaphragm Single Seat Control Valve DN25 is a small‑bore, high‑precision throttling valve specifically dimensioned for pilot plants, pharmaceutical batch reactors, and biotech fermentation skids. Its 1‑inch (DN25) body offers a Cv range of 4 to 10, making it ideal for low‑to‑medium flow rates where accuracy is paramount. The valve features a guided plug and cage design that provides stable, low‑noise modulation even at low opening percentages. The pneumatic actuator is compact yet delivers sufficient thrust to overcome high differential pressures common in small‑bore services. The body is manufactured from 316L stainless steel with an internal electropolished surface finish to prevent product adhesion and facilitate cleaning‑in‑place (CIP). This valve is often used as a Pressure Control Valve for maintaining reactor jacket pressure and as a Temperature Regulating Valve in autoclave heating/cooling circuits. With the addition of a smart positioner, it becomes an Intelligent Control Valve capable of logging valve stroke and seat wear, enabling condition‑based maintenance. Its flow characteristic – equal percentage or linear – can be selected to match the process dynamics. For flow metering applications, it can act as a Flow Control Valve in a dosing skid, ensuring accurate ingredient addition. The packing system employs a low‑friction PTFE V‑ring set with a spring‑loaded follower, minimizing hysteresis and ensuring long seal life. The valve’s compact footprint allows installation in tight instrument panels or manifold assemblies. All wetted parts are certified to FDA‑compliant materials, and surface roughness is controlled to <0.8 µm Ra. The valve also supports quick‑change trim, allowing size changes without removing the body from the line. Every unit undergoes 100% functional testing with a calibrated positioner to verify linearity, hysteresis, and repeatability. With its sanitary design, precise control, and easy maintenance, this DN25 valve is the preferred choice for high‑value batch processes in the life sciences and fine chemicals sectors.
