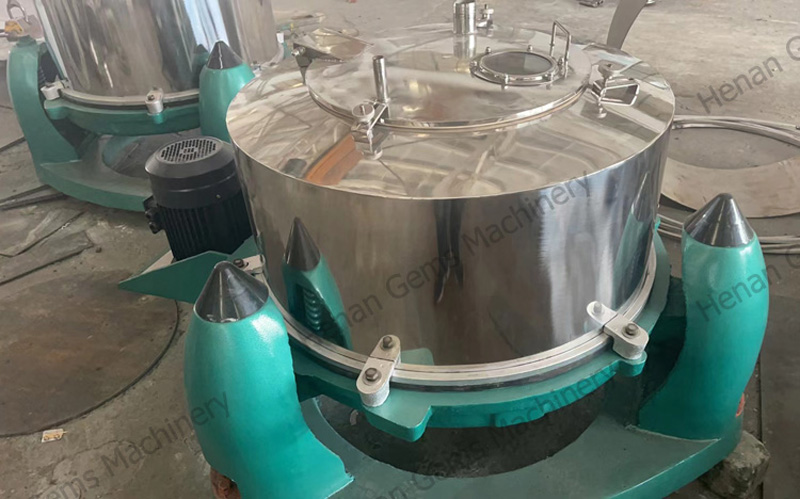

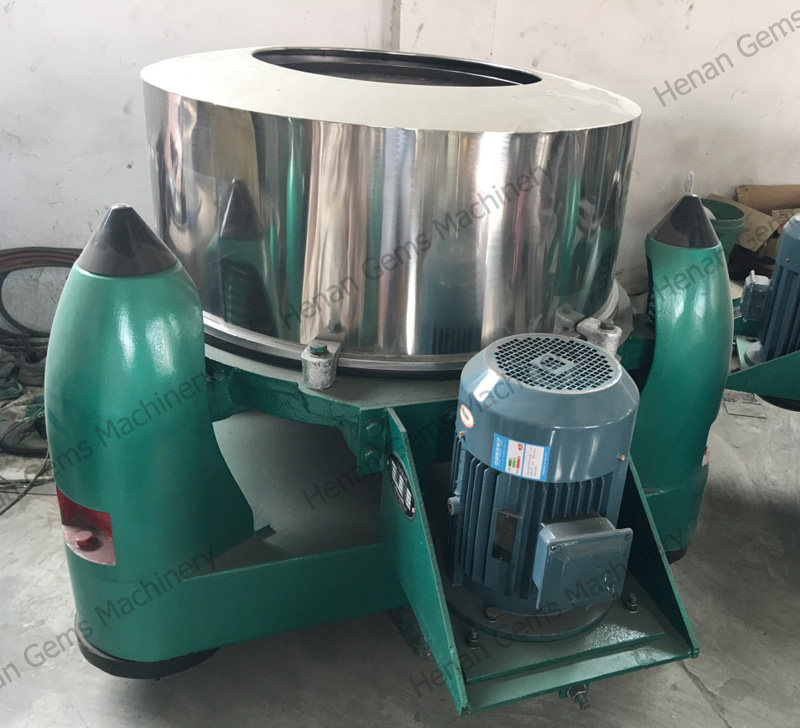

Introduction for Stainless Steel Hemp Fiber Dewater Sand Dewatering Machine:
The hemp fiber dewatering machine can be fed during operation, or when the drum is stopped, and the volume and weight of the material can be controlled when feeding is stopped, otherwise fluid leakage or overload will occur.

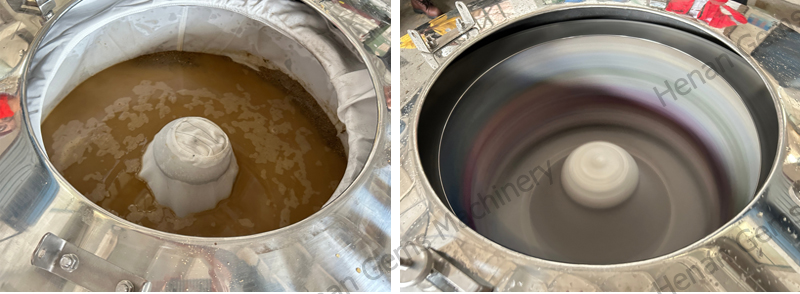

Under the action of centrifugal force, the material tends to the drum wall, the liquid phase passes through the filter hole of the drum wall through the filter medium covering the drum wall, tends to the inner wall of the shell and falls into the chassis, and is discharged through the liquid outlet. The solid phase material remains in the drum and can be fully washed to complete the solid-liquid separation.
After the machine is stopped, open the cover of the shell, and use the hoisting device to take out the filter bag to the unloading place for unloading.
After unloading, remove the liquid blocking plate and After the filter bag is installed in the drum and the liquid blocking plate is locked, the flip cover is closed and locked to start the second working cycle..
Technical Parameters of Sand Dewatering Machine:
Model | Volume | Load Capacity | Rotation | Power | Dimenison | Weight |
GMS-LX300 | 8L | 10kg | 819rpm | 0.75kw | 800*620*500mm | 130kg |
GMS-LX450 | 20L | 25kg | 725rpm | 1.5kw | 980*720*630mm | 200kg |
GMS-LX800 | 98L | 120kg | 1200rpm | 5.5kw | 1740*1380*1000mm | 1300kg |
GMS-LX1000 | 140L | 150kg | 1000rpm | 7.5kw | 1950*1560*1050mm | 1500kg |
GMS-LX1200 | 200L | 200kg | 800rpm | 11kw | 2370*1600*1000mm | 2030kg |


Test for Sand Centrifuge Machine:
