Product details

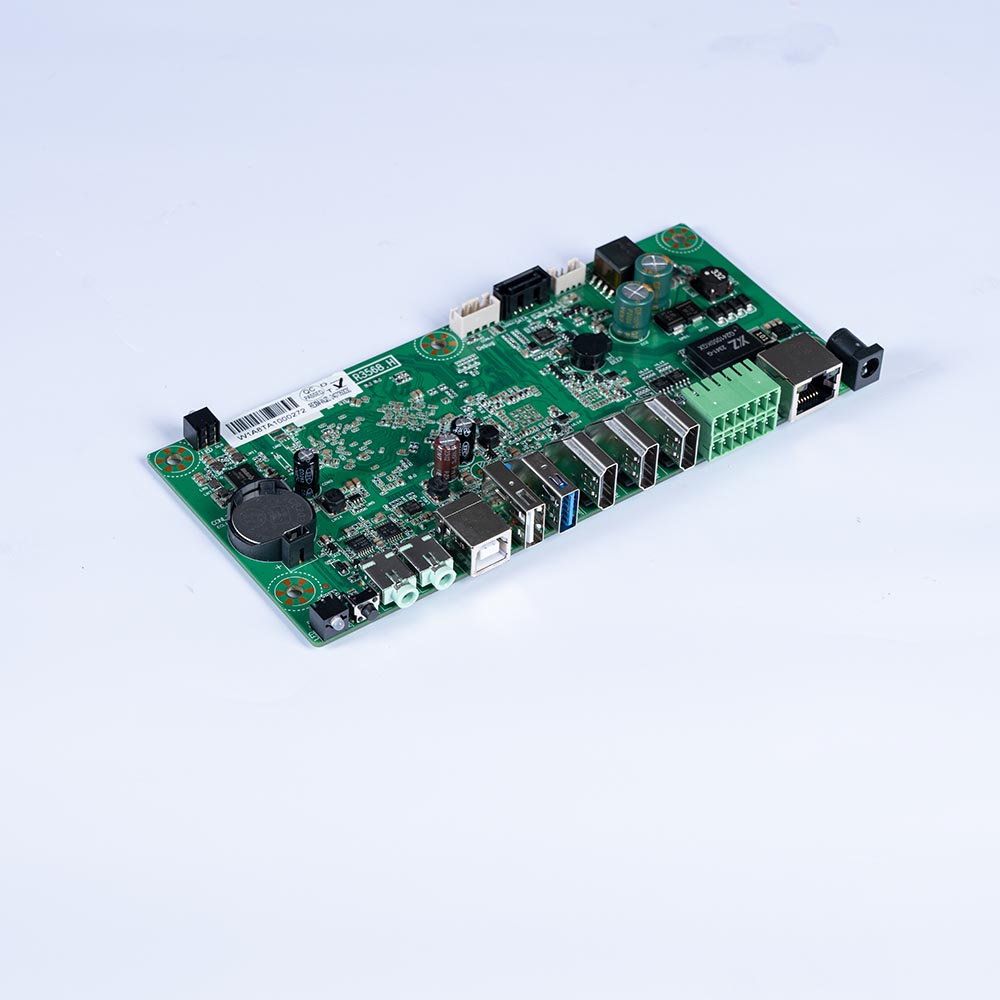

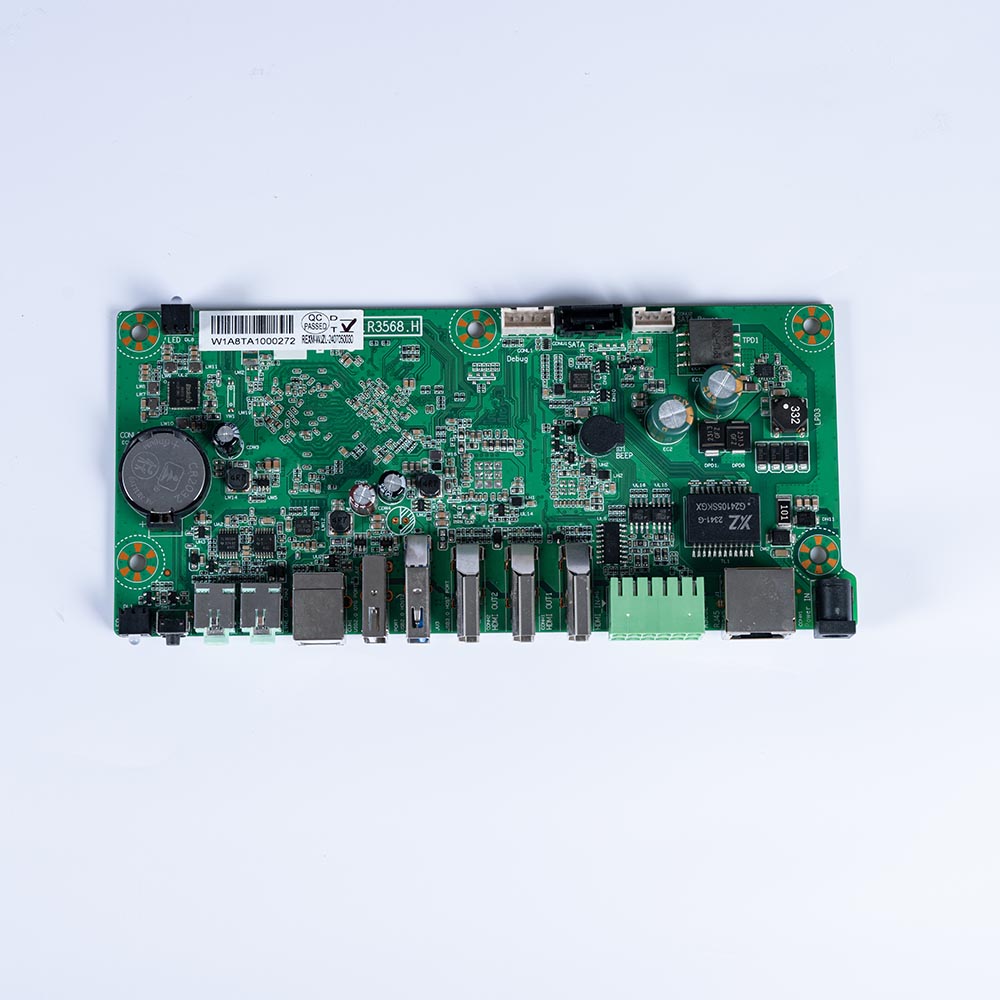

PCB SMT Assembly Programmable chip processing,Prototype Printed Circuit Board

SMT printed circuit board components are directly mounted on the surface of the printed circuit board, and the electrodes are soldered onto the solder pads on the same side of the SMT components. In this way, there are no solder pads around the through holes on the PCB printed circuit board, greatly increasing the wiring density of the printed circuit board.

PCB Assembly

Place of Origin:Guangdong, China

Brand Name:Wtt/Wsd

Copper Thickness:0.5-4OZ / 1 Oz / 2Oz or Custom

Min. Hole Size:T/2mm / 0.2 Mm / 0.15mm or Custom

Min. Line Width:0.15mm / 0.1mm or Custom

Min. Line Spacing:0.15mm / 0.1mm/4mil or Custom

Surface Finishing:HASL,Immersion gold,Flash gold, plated silver, OSP

Board Size:Customized

Processing technology:Electrolytic foil

Insulation thickness:Conventional board

Insulation material:organic resin

Supported Customization:Can be customized

Application:Electronics Device, Medical device, home appliance,Components Sourcing

Product layer number:Double layer

copper thickness:1 oz

Modern-day consumer electronic appliances: As we have mentioned earlier, smartphones and smart devices use multilayer PCBs due to their small form factor and multifunctionality.

Telecommunication industry: Network appliances and transmission devices use multilayer PCBs due to their durability and flexibility to adapt to outdoor and indoor environments.
