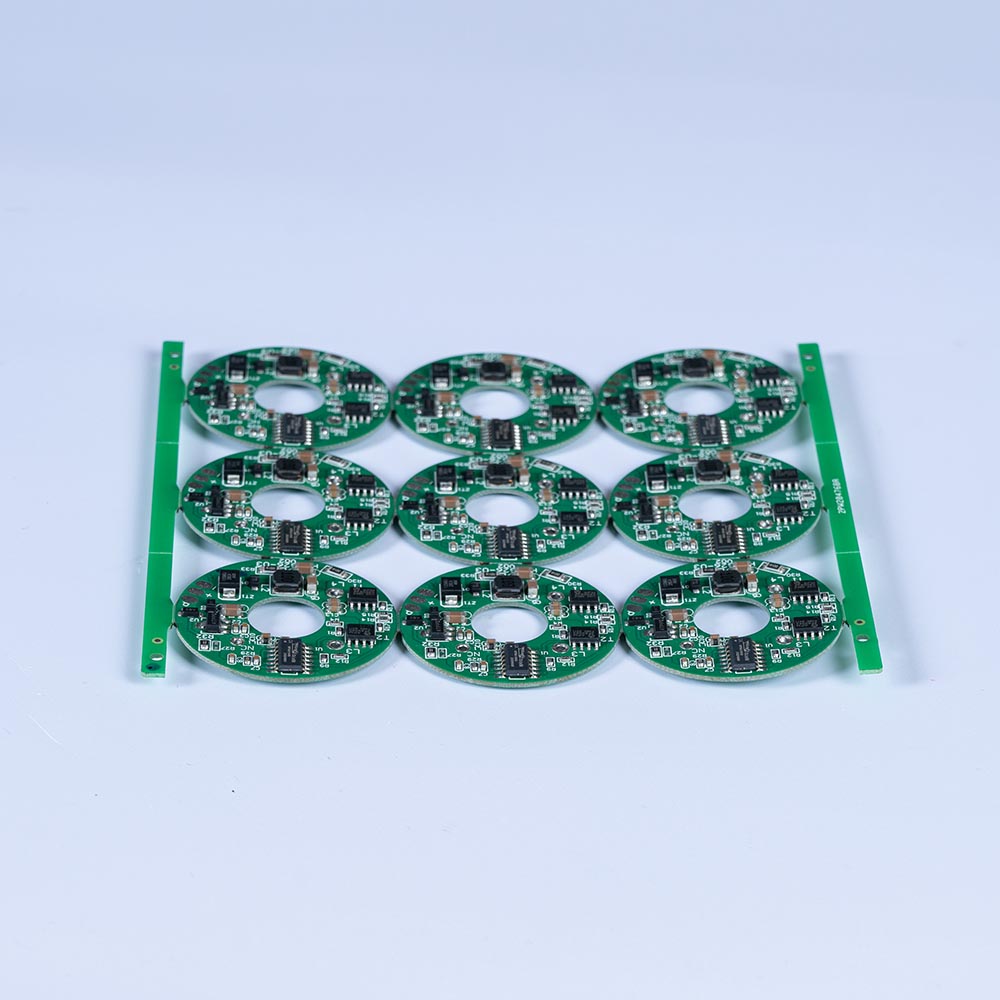

prototyp pcb assembly board for led lights

Creating a prototype PCB assembly (PCBA) board for LED lights involves several key steps and considerations. Below is a comprehensive overview of the process, including design considerations, components, and assembly methods.

Key Design Considerations

Circuit Design:

Schematic: Develop a schematic diagram that includes all necessary components (LEDs, resistors, power supply, etc.).

Current and Voltage Ratings: Ensure that the circuit design accommodates the specifications of the LEDs being used (forward voltage and current).

PCB Layout:

Component Placement: Position components to minimize trace lengths and optimize heat dissipation.

Trace Width: Calculate trace widths based on current requirements to prevent overheating.

Thermal Management: Consider adding thermal pads or vias to dissipate heat, especially for high-power LEDs.

Materials:

PCB Material: Use FR-4 or aluminum PCBs depending on the heat dissipation needs.

Surface Finish: Choose a suitable surface finish (e.g., HASL, ENIG) for solderability.

Power Supply Design:

Voltage Regulation: Decide if you will use a constant current driver or resistors for current limiting.

Input Voltage: Design for the appropriate input voltage based on the power source (AC or DC).

Common Components

LEDs:

Choose the type of LED (e.g., SMD, through-hole) based on the application and design.

Resistors:

Use current-limiting resistors to prevent excessive current through the LEDs.

Capacitors:

Include decoupling capacitors to stabilize power supply voltages.

Connectors:

Use connectors for easy power supply and control integration.

Control Circuitry:

If using RGB or addressable LEDs, include microcontrollers or drivers like the WS2812.
