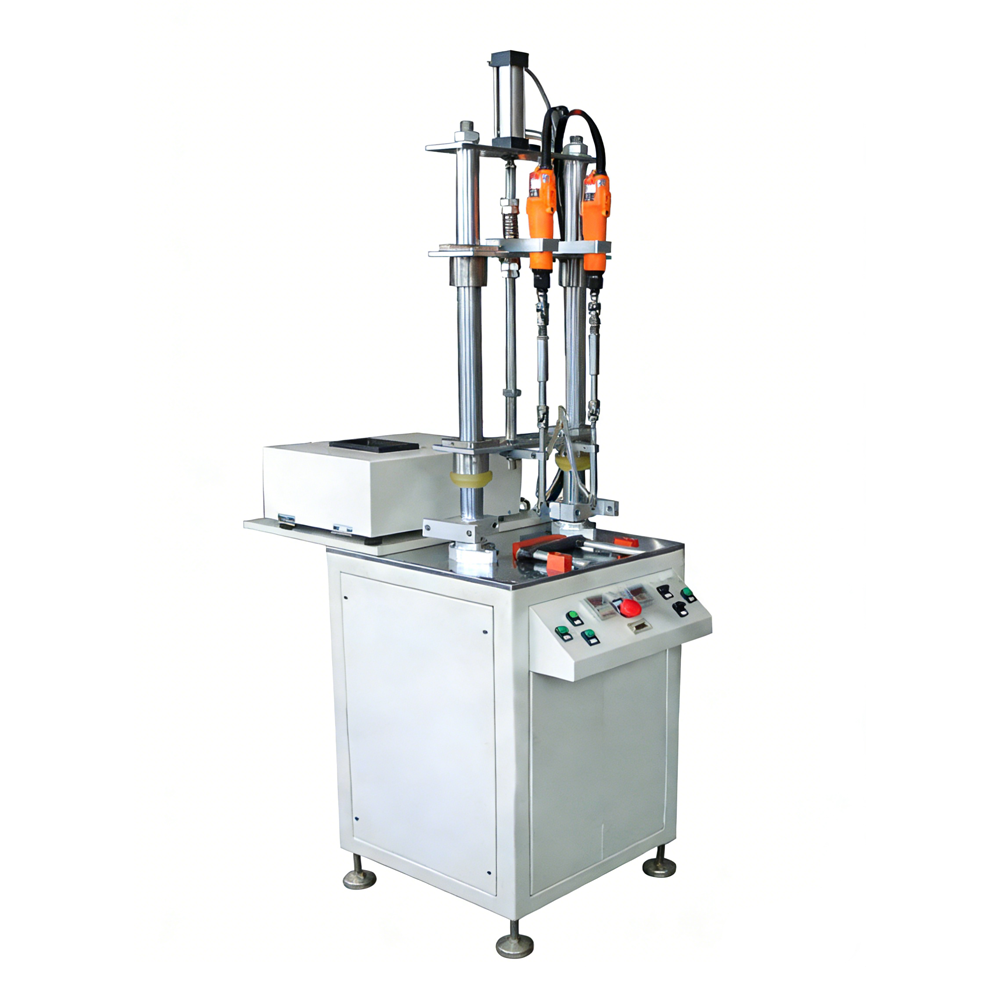

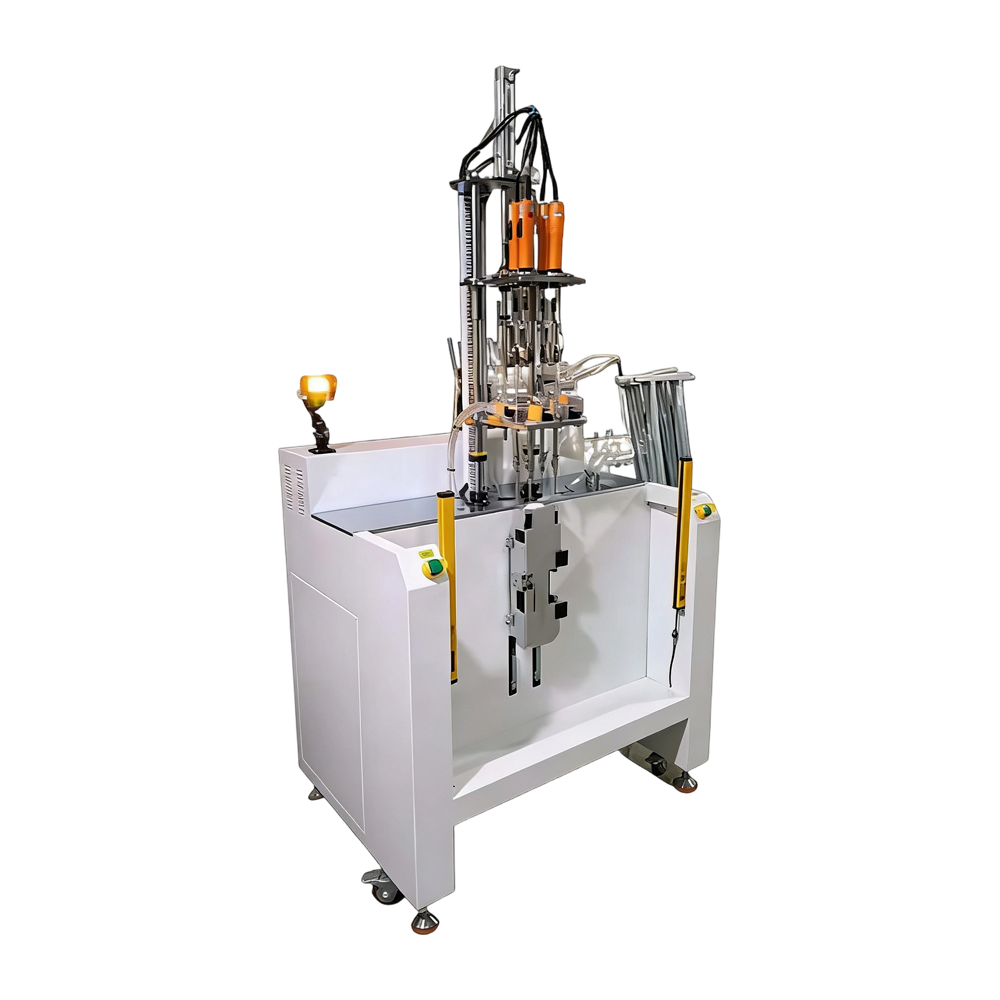

Strong Power multi-spindle screwdriving machine
6 month ago
| Category | Specification |
| Models & Dimensions | Large Version (8-16 drivers): 900×1300×1700 mm, 380 kg |
| Standard Version (4-8 drivers): 700×1200×1700 mm, 320 kg | |
| Compact Version (4-8 drivers): 600×1000×1700 mm, 240 kg | |
| Desktop Version (≤4 drivers): 450×1000×1100 mm, 110 kg | |
| Power & Air Supply | Power: AC 220V/50Hz, 0.5 kW (based on locking 12 screws at once) |
| Air source: >0.5 kg/cm² | |
| Air consumption: 25 m³/h (based on K512 calculation) | |
| Machine Structure | Frame: Steel tabletop, aluminum alloy frame, transparent painted cover |
| Vertical adjustment range: 200 mm | |
| Control System | Microcomputer control |
| LCD display for parameter adjustment | |
| Dual-button safety start | |
| Alarm: flashing light + buzzer | |
| Screw Feeder | Mounted on rear rack (customizable by feed count) |
| Input signal: DC24V pulse (compatible with PLC/host) | |
| Feedback signal: DC24V pulse to host/PLC | |
| Tooling | Screwdriver: Electric/air screwdrivers, torque 2~12 kgf·cm |
| Screw fixture: Customizable based on product/screw size (multiple sets) | |
| Connection: Universal joint drive components (multiple sets) | |
| Machining Range | Working area: 600×500×150 mm (product screw range) |
| Horizontal adjustment: Fine ±25 mm (max ±100 mm with replacement parts) | |
| Vertical adjustment: Fine ±5 mm (max ±15 mm with replacement parts) | |
| Max locking depth: 20 mm (customizable for deeper requirements) | |
| Min screw pitch: 20 mm | |
| Detection & Quality Control | Torque detection: Yes |
| Thread stripping/slippage detection: Yes | |
| Missing screw detection: Yes | |
| Missing feed detection: Yes | |
| Defect handling: Alarm light + buzzer, touchscreen displays defective screw positions |
The overall structure of the automatic screw driving machine is constructed using sheet metal welding and baking paint processes. The mechanical parts are made of high-quality steel and aluminum, and undergo surface treatment to ensure their bright and non-oxidizing surfaces remain even after long-term use. The fastening transmission mechanism uses linear bearings for reciprocating motion, and the guide rails are made of high-quality steel and heat-treated to ensure their hardness and prevent wear and tear that could cause positioning accuracy deviations over time.
The automatic screwdriver machin control system utilizes a PLC + touchscreen interface. All electrical auxiliary components are from high-quality brands, and pneumatic components are from mainstream brands.
