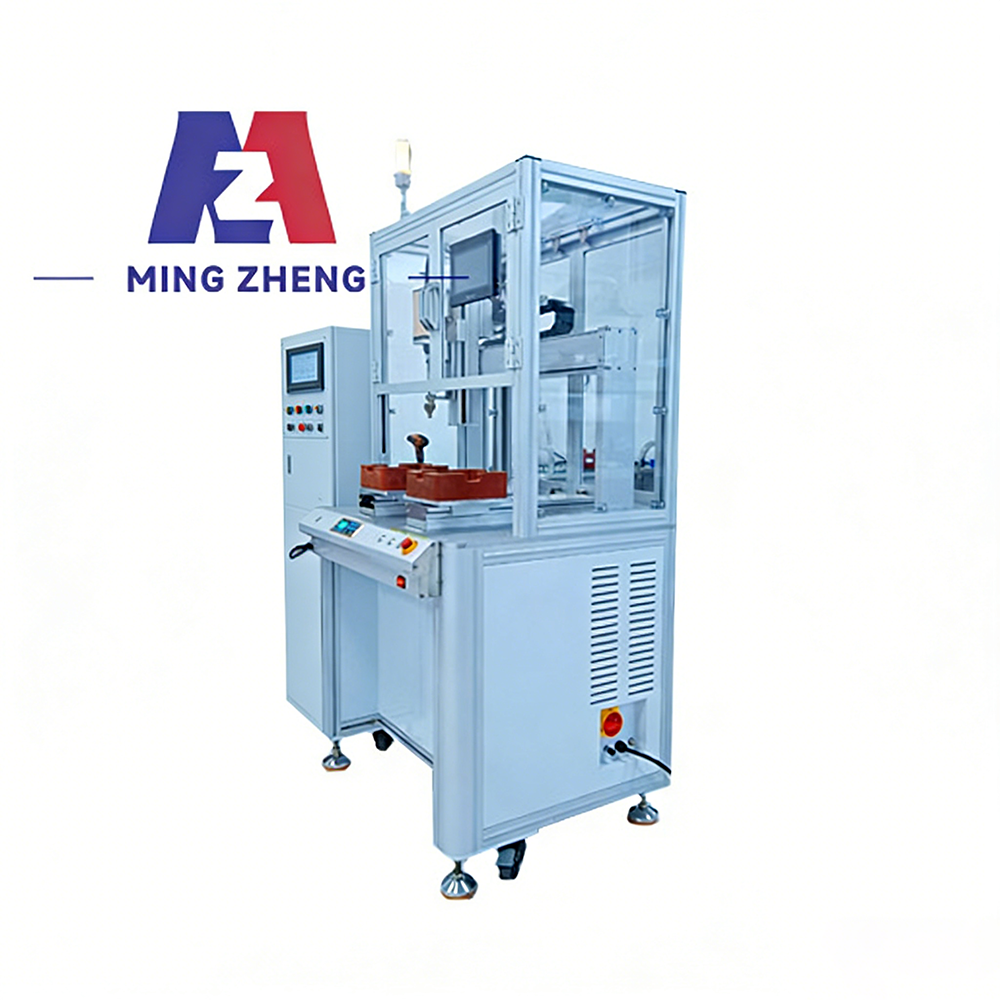

Operate Flexibly Screw Fastening Machine

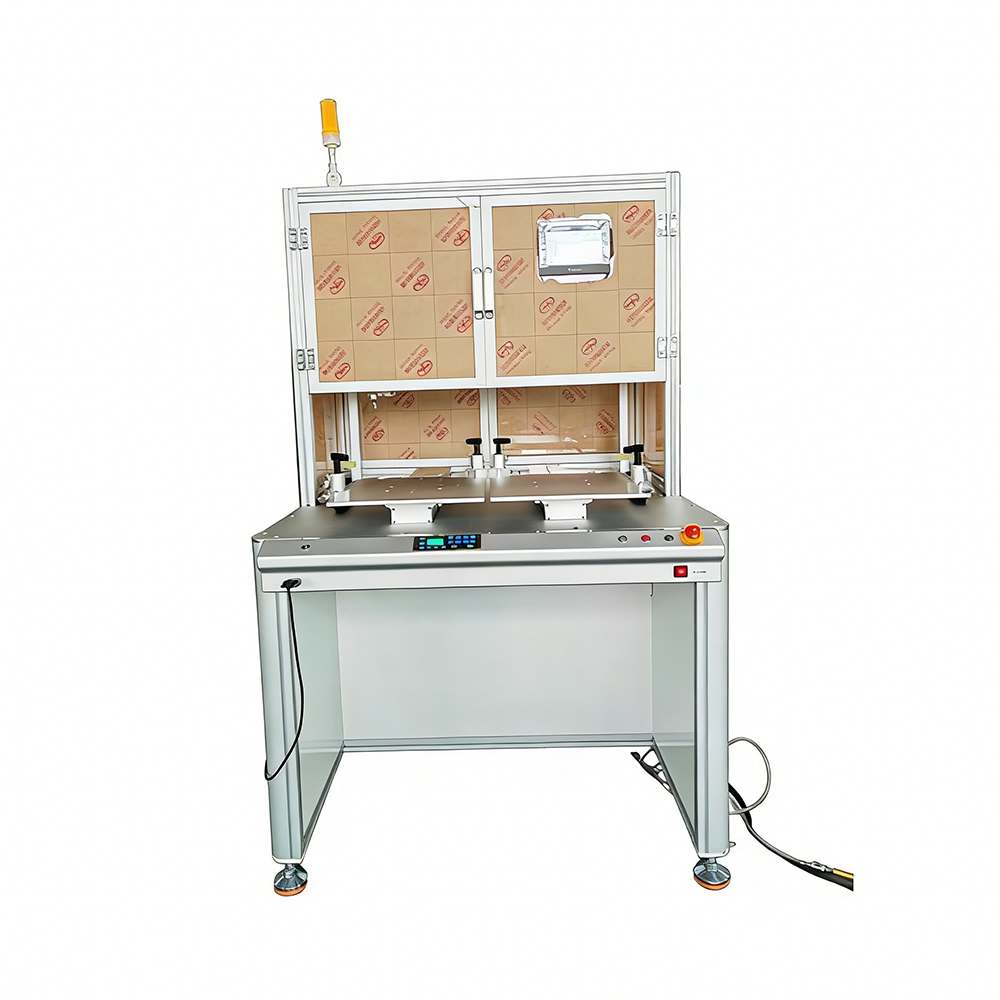

The Operate Flexibly Screw Fastening Machine is built for factories that want faster assembly without making operation complicated. A lot of production workshops still waste time on repeated fixture adjustment, unstable screw feeding, or slow programming. This floor-standing system keeps things simple. Operators can finish teaching and path setup directly by handheld programming, which makes product switching much quicker during daily production.
The Operate Flexibly Screw Fastening Machine is built for factories that want faster assembly without making operation complicated. A lot of production workshops still waste time on repeated fixture adjustment, unstable screw feeding, or slow programming. This floor-standing system keeps things simple. Operators can finish teaching and path setup directly by handheld programming, which makes product switching much quicker during daily production.
| Product Parameters | L331X | L441X | L5331X |
| Model | L331X | L441X | L5331X |
| Axis Travel X/Y1/Y2/Z (mm) | 300/300/100 | 400/400/100 | 500/300/300/100 |
| Max. Workpiece Dimension (mm) | 240 × 280 | 340 × 380 | 140 × 280 |
| Electric Screwdriver | Japan HIOS or custom brushless screwdriver | Japan HIOS or custom brushless screwdriver | Japan HIOS or custom brushless screwdriver |
| Screwdriver Torque Range (N·m) | 0.2~3.5; 0.5~7; 1~10; 2~12; 3~17 optional | 0.2~3.5; 0.5~7; 1~10; 2~12; 3~17 optional | 0.2~3.5; 0.5~7; 1~10; 2~12; 3~17 optional |
| Screwdriver Speed | High: 2000/1000 RPM; Low: 1400/700 RPM, switchable | High: 2000/1000 RPM; Low: 1400/700 RPM, switchable | High: 2000/1000 RPM; Low: 1400/700 RPM, switchable |
| Applicable Screw Size | M1.0 - M5.0 | M1.0 - M5.0 | M1.0 - M5.0 |
| Drive System | Closed-loop motor or servo motor | Closed-loop motor or servo motor | Closed-loop motor or servo motor |
| Moving Speed (mm/s) | X/Z axis: 0~800; Y axis: 0~500 | X/Z axis: 0~800; Y axis: 0~500 | X/Z axis: 0~800; Y axis: 0~500 |
| Transmission System | Timing belt or ball screw | Timing belt or ball screw | Timing belt or ball screw |
| Repeatability (mm/axis) | ±0.02 | ±0.02 | ±0.02 |
| Programming Method | Teach Pendant | Teach Pendant | Teach Pendant |
| Control System | Microcontroller or PLC | Microcontroller or PLC | Microcontroller or PLC |
| System Memory | >100 programs, 1000 points per program | >100 programs, 1000 points per program | >100 programs, 1000 points per program |
| Max. Load (kg) | 10 | 10 | 10 |
| Power Supply | AC 220V 50/60Hz | AC 220V 50/60Hz | AC 220V 50/60Hz |
| External Interface | RS232 | RS232 | RS232 |
| Overall Dimensions (L×W×H, mm) | 620 × 580 × 750 | 720 × 680 × 750 | 770 × 580 × 750 |
| Machine Weight (kg) | 56 | 59 | 89 |

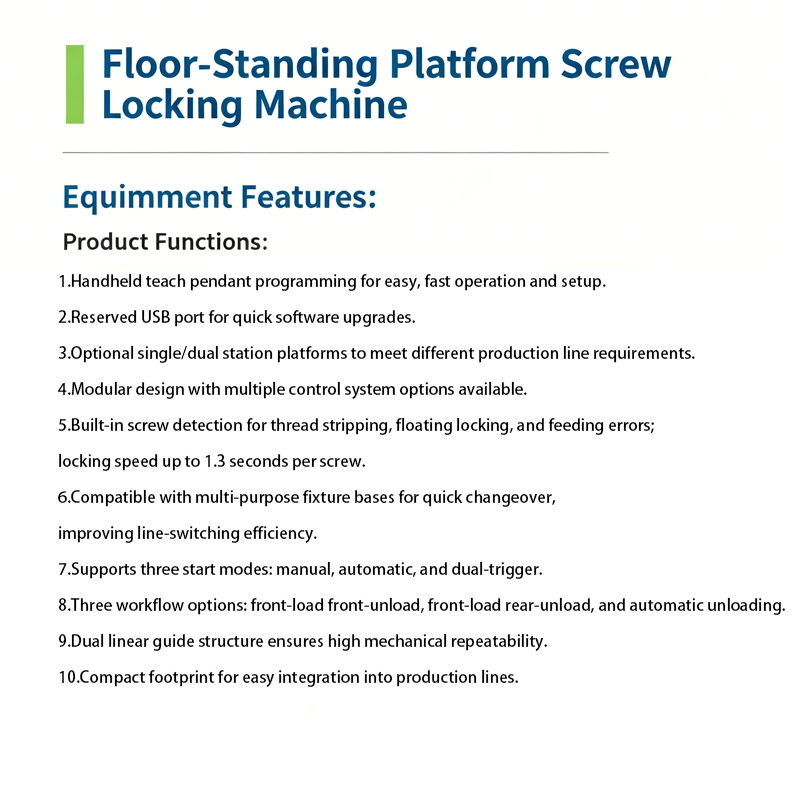

Different from a traditional auto screw machine, this equipment is designed with a modular structure, so customers can choose single-platform or dual-platform configurations according to line capacity. The machine also supports manual start, automatic cycle, and dual-start modes, making it easier to match different production habits and factory layouts.
For manufacturers dealing with frequent product replacement, the quick-change fixture base is especially practical. Workers can replace clamps in a short time instead of stopping the entire line for long adjustments. Combined with the dual guide rail structure, the machine keeps stable repeat positioning even during continuous operation.
This automatic screw locking machine is equipped with intelligent detection functions including floating screw alarm, slip thread warning, and feeding error monitoring. Once abnormal fastening appears, the system immediately gives a reminder to reduce defective products flowing into the next process. Under normal working conditions, locking efficiency can reach around 1.3 seconds per screw, helping improve output without depending heavily on manual labor.
The Mingzheng compact body design is another advantage. Unlike oversized fastening systems that occupy too much workshop space, this model can be integrated directly into an automated production line or connected with conveyor systems smoothly. For factories upgrading from a traditional screw heading machine process, it offers a more flexible automation solution while keeping operation easy for technicians.
