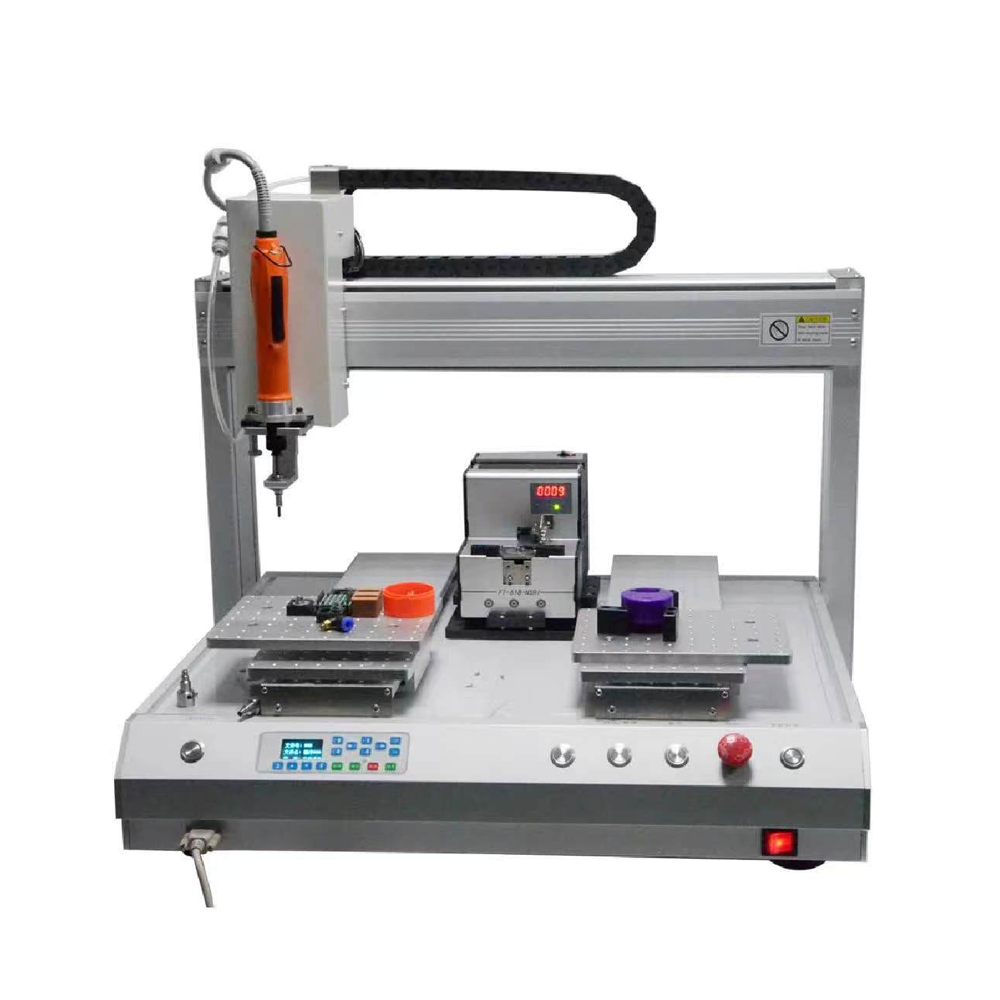

Low Noise desktop automated screwdriving robot

6 month ago

118 0 

Guangdong Mingzheng Equipment Manufacturing Co., Ltd.

8 month

Product details

As a China-based industrial automation manufacturer, we know US and Australian electronics and assembly plants struggle with costly manual screwdriving, inconsistent torque control, and labor shortages. Our desktop automated screwdriving robot solves these issues. This automatic screw locking machine delivers precise, repeatable fastening, fits 110V/220V workshops, and meets US/AU quality standards. We engineer every XYZ automated screw driving machine for local production needs.

Product Parameters	L5331c	L6441C
Model	L5331c	L6441C
Axis Travel X1/Y1/Y2/Z (mm)	500/300/300/100	600/400/400/100
Max. Workpiece Dimension (mm)	240 * 280	340 * 380
Electric Screwdriver	Taiwan Kilews or custom brushless screwdriver	Taiwan Kilews or custom brushless screwdriver
Torque Range (N·m)	0.2~3.5; 0.5~7; 1~10; 2~12; 3~17 optional	0.2~3.5; 0.5~7; 1~10; 2~12; 3~17 optional
Screwdriver Speed	High speed: 2000/1000 RPM; Low speed: 1400/700 RPM, switchable	High speed: 2000/1000 RPM; Low speed: 1400/700 RPM, switchable
Screw Size Range	M1.0-M5.0	M1.0-M5.0
Drive System	Closed-loop motor or servo motor	Closed-loop motor or servo motor
Moving Speed (mm/s)	X/Z axis: 0~800; Y axis: 0~500	X/Z axis: 0~800; Y axis: 0~500
Transmission System	Timing belt or ball screw	Timing belt or ball screw
Repeatability (mm/Axis)	±0.02	±0.02
Programming Method	Teach pendant	Teach pendant
Control System	Microcontroller or PLC	Microcontroller or PLC
System Memory	>100 programs, 1000 points per program	>100 programs, 1000 points per program
Max. Load (kg)	10	10
Power Supply	AC 220V	AC 220V
External Interface	RS232	RS232
Overall Dimensions (L×W×H, mm)	760 × 580 × 750	860 × 680 × 750
Machine Weight (kg)	96	105

US/AU Medical Device & Small Batch Manufacturers

Pain Point: Limited floor space, frequent product changeovers, strict compliance rules.Our Advantage: This automatic bolt tightening machine occupies only 0.48 sqm—perfect for small US/AU cleanrooms. 5-minute recipe switchover supports 10+ daily product runs. XYZ automated screw driving machine meets FDA/CE requirements for medical device assembly.

Equipment Features:

1. Handheld teaching programming, convenient operation, simple and fast programming;

2. Reserved USB interface for quick software upgrades;

3. Single/dual platform options available to adapt to production line requirements;

4. Modular design with multiple system control methods available;

5. Built-in screw stripping, floating lock, and feeding error detection functions, achieving a feeding efficiency of up to 0.8 seconds/screw;

6. Can be equipped with a multi-purpose clamp base for quick clamping and changing, improving line changeover efficiency;

7. Can be equipped with multiple electric screwdrivers for simultaneous multi-head clamping, enhancing production efficiency;

8. Supports manual, automatic, and dual-start modes;

9. Selectable front-load/front-place, front-place/rear-load, and automatic unloading modes;

10. Dual-rail structure for high mechanical repeatability;

11. Compact design for easy integration into production lines;
