Safe And Reliable Desktop Automated Screwdriving Robot
6 month ago
Product details

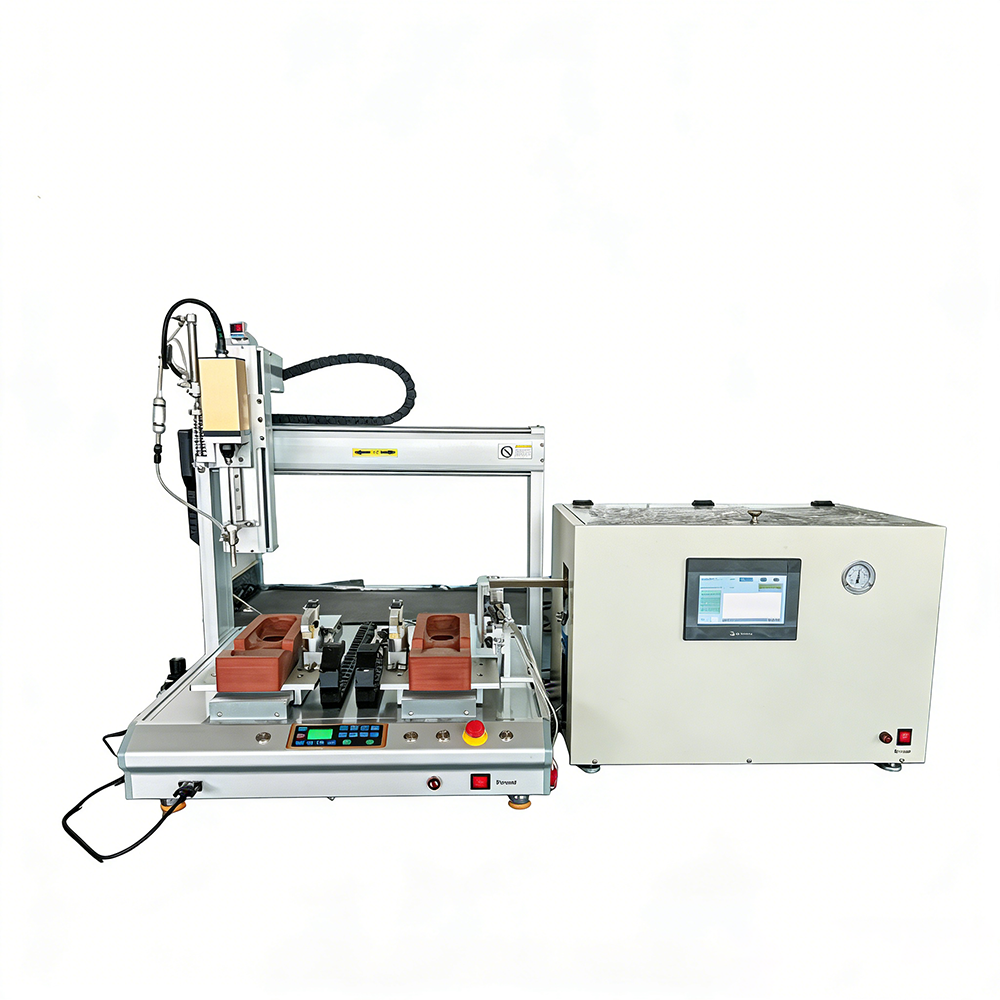

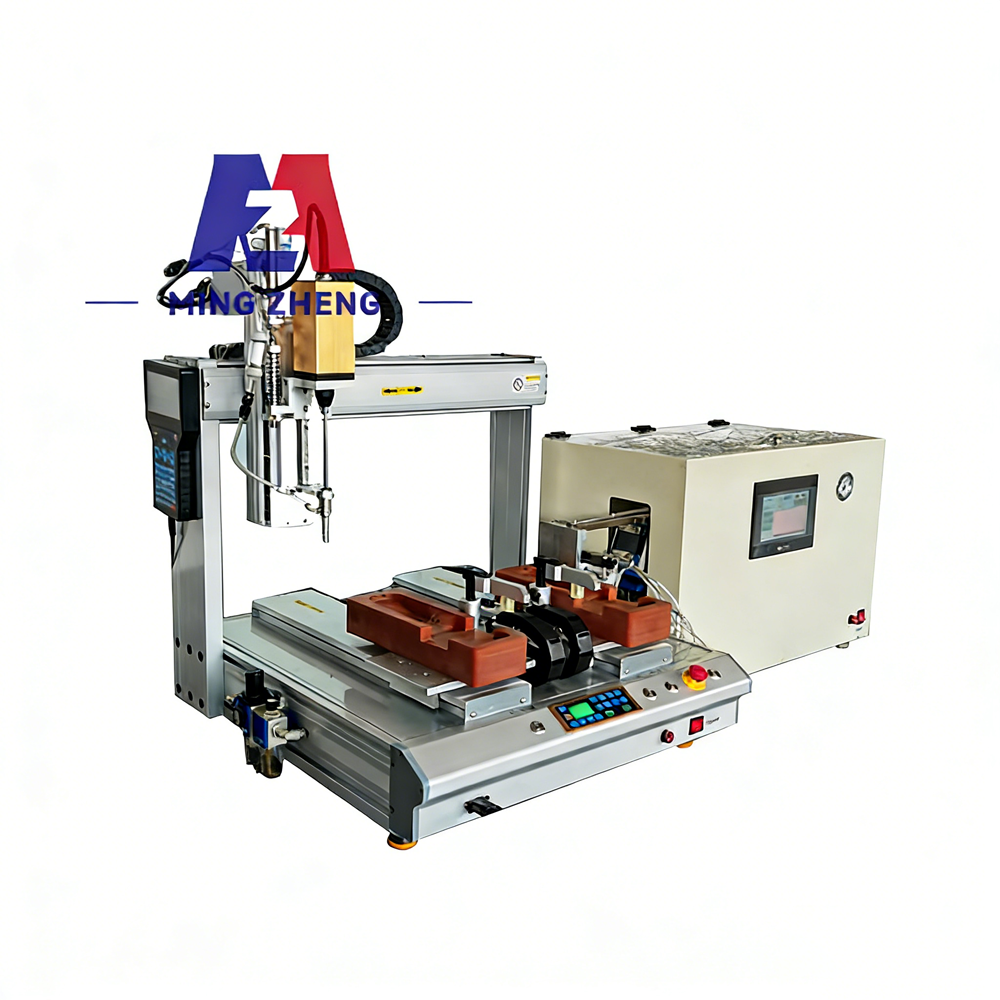

As a professional automation manufacturer, we know Middle Eastern and Canadian manufacturers face challenges with multi-size screw diversity, harsh workshop environments, and high demand for customizable fastening solutions. Our automatic screw fastening machine addresses these pain points. This automatic screw locking machine supports various screw types/materials, offers adjustable torque, and delivers 24/7 stable operation. We tailor every XYZ automated screw driving machine for local industrial needs.
Client: A multinational industrial manufacturer (Dubai, UAE & Toronto, Canada, 2024), producing energy equipment and automotive parts.Unique Challenge: Dubai’s 50°C heat/dust caused frequent equipment breakdowns; Toronto’s -25°C cold affected precision. Mixed screw types led to 6.0% defects and 9-day lead times.Solution: We deployed MZ-SF700 automatic screw fastening machine with Dubai high-temperature/dustproof and Toronto cold-resistant configurations, plus multilingual training.Quantitative Results (Before → After):
| Product Parameters | L5331c | L6441C |
| Model | L5331c | L6441C |
| Axis Travel X1/Y1/Y2/Z (mm) | 500/300/300/100 | 600/400/400/100 |
| Max. Workpiece Dimension (mm) | 240 * 280 | 340 * 380 |
| Electric Screwdriver | Taiwan Kilews or custom brushless screwdriver | Taiwan Kilews or custom brushless screwdriver |
| Torque Range (N·m) | 0.2~3.5; 0.5~7; 1~10; 2~12; 3~17 optional | 0.2~3.5; 0.5~7; 1~10; 2~12; 3~17 optional |
| Screwdriver Speed | High speed: 2000/1000 RPM; Low speed: 1400/700 RPM, switchable | High speed: 2000/1000 RPM; Low speed: 1400/700 RPM, switchable |
| Screw Size Range | M1.0-M5.0 | M1.0-M5.0 |
| Drive System | Closed-loop motor or servo motor | Closed-loop motor or servo motor |
| Moving Speed (mm/s) | X/Z axis: 0~800; Y axis: 0~500 | X/Z axis: 0~800; Y axis: 0~500 |
| Transmission System | Timing belt or ball screw | Timing belt or ball screw |
| Repeatability (mm/Axis) | ±0.02 | ±0.02 |
| Programming Method | Teach pendant | Teach pendant |
| Control System | Microcontroller or PLC | Microcontroller or PLC |
| System Memory | >100 programs, 1000 points per program | >100 programs, 1000 points per program |
| Max. Load (kg) | 10 | 10 |
| Power Supply | AC 220V | AC 220V |
| External Interface | RS232 | RS232 |
| Overall Dimensions (L×W×H, mm) | 760 × 580 × 750 | 860 × 680 × 750 |
| Machine Weight (kg) | 96 | 105 |
Middle East Energy & Heavy Equipment Manufacturers (UAE/Saudi Arabia)
Unique Local Pain Point: Extreme high temperatures (45–55°C), heavy dust from desert environments, and demand for heavy-duty fastening for oil/gas equipment.Our Advantage: Our automatic bolt tightening machine features high-temperature resistant components, operating stably at 55°C. The automatic screw locking machine handles large iron/stainless steel screws, cutting heavy fastening labor by 82%. It reduces dust-related failures by 90%, ideal for desert workshops.
Canadian Automotive & Aerospace Component Factories (Ontario/Quebec)
Unique Local Pain Point: Harsh cold winters (-20–-30°C), strict aerospace precision standards, and mixed small-batch/large-volume orders.Our Advantage: Our XYZ automated screw driving machine uses cold-resistant materials, maintaining ±0.02 mm precision at -30°C. The automatic screw fastening machine supports quick recipe switching for mixed orders, reducing changeover time by 75%. It meets Canadian aerospace torque accuracy requirements.
Client: A multinational industrial manufacturer (Dubai, UAE & Toronto, Canada, 2024), producing energy equipment and automotive parts.Unique Challenge: Dubai’s 50°C heat/dust caused frequent equipment breakdowns; Toronto’s -25°C cold affected precision. Mixed screw types led to 6.0% defects and 9-day lead times.Solution: We deployed MZ-SF700 automatic screw fastening machine with Dubai high-temperature/dustproof and Toronto cold-resistant configurations, plus multilingual training.Quantitative Results (Before → After):
Defect rate: 6.0% → 0.4% (93% reduction)
Equipment downtime: 22% → 2.5% (89% reduction)
Lead time: 9 days → 2.3 days (74% faster)
Monthly output: 17,000 units → 51,000 units (200% increase)
Cross-environment stability: 45% → 99.8% (adapted to ME/CA extreme climates)
Client Feedback: “This XYZ automated screw driving machine works flawlessly in Dubai’s heat and Toronto’s cold. Multi-screw compatibility solved our mixed-production issues. ROI achieved in 7.2 months.”
