Product details
Hot Mirrors are essential components in a wide range of optical systems, one of most notable features of the hot mirror film is it's ablity to selectively reflect infrared radiation while allowing visible light to pass through. this property is especially valuable in applications such as projection systems, where managing heat is essential for maintaining image quality and system longevity
Hot Mirror is a specialized type of dichroic mirror that functions by reflecting long wavelength light while transmitting shorter wavelength.
Dielectric coating on this mirror is composed of multiple layers of material with varying refractive indices, which enhance it's ability to control light, the construction of the mirror ensures minimal absorption and scattering, maintaining high optical efficiency.
Hot mirror film is resistant to environmental factors such as humidity and temperature fluctuations, ensuring long term stability
Applications of dielectric mirror
Widely used in industrial and scientific application
In laser systems:it help direct and manage the engery distribution of the laser beam
In spectroscopic instruments: it aids in separating the desired spectral components from unwanted thermal emissions
In thermal systems: to improve image quality by reducing background noise
Also used in optical filters, projection systems and other high precision optical setups
Specifications
| Substrate | float glass, K9,fused silica optical glass |
| Shape | circular, square,abnormal custom as demand |
| Size | 5-300mm |
| Thickenss | 1-20mm as request |

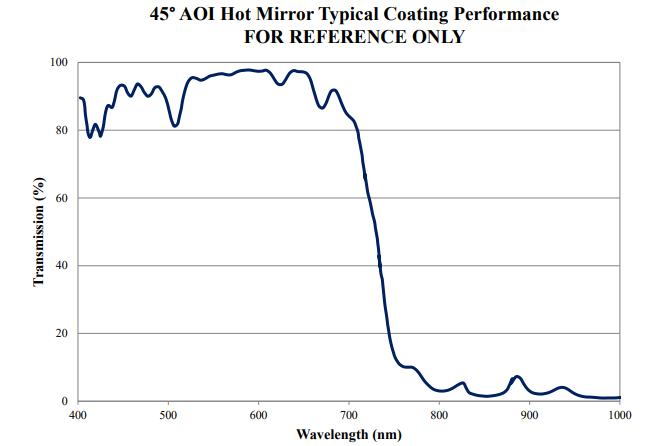

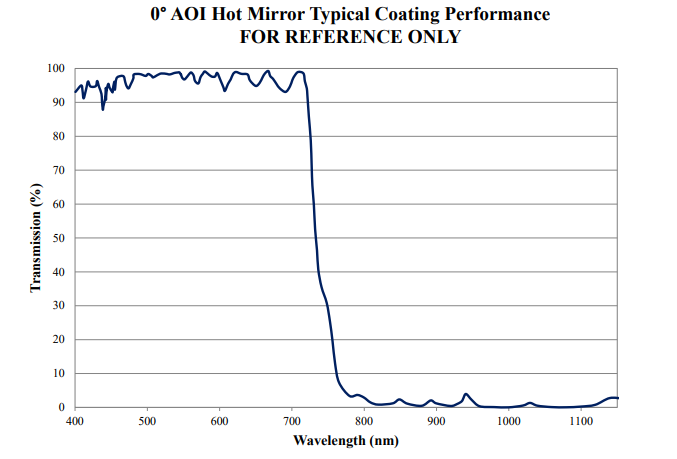

| AOI | 0° or 45° |
| Coating type | Dielectric |
| Coating specs | 0° or 45° hot mirror |
| S/D | 40/20 |
| Reflection | >95% at 750-1100nm |
| Transmission | >95% at 425-675nm |
Our company specializing in processing, production and sales of precision optical components, we specialize in optical component including Sapphire Windows, Spherical Lens, Optical Mirrors Optical Windows, Optical Prisms, Filters and Lasers.
We have a skilled optical engineer team which is expertised in processing optical components for over 10 years and have a completed production line of cutting, milling, grinding, polishing, coating, spray paint, and assembly.
The superior quality of product and our best service enable us to cooperate with more and more customers domestically and overseas.
Our product categories are listed as follows.
1.Laser optics, such as Laser focus lens, laser mirror applicable to laser cutting and engraving machines ect
2.Infrared optics, such as Sapphire Window, CaF2 Window, BaF2 Window, MgF2 Window, ZnS window, Znse window, Silicon window, IRG205, IRG206, IRG207 ect
3.Optical glass components, such as Spherical Lens, achromatic lenses doublet, ball lens, collimator lens, corner cube prism, optical lens, right angle prism ,ATR prism ect
4.Optical Mirrors, Dielectric Mirror, Spherical Concave or Convex Mirror, Off- Axis Parabolic Mirrors coating including Silver, Gold, Aluminum, Cooper, Nickel etc.
Besides, we also specialized in manufacturing large size prism, such as Periscope prism, Beamsplitter(Cube, Plate).
We have advanced coating machines and related equipment such as ultrasonic cleaning devices. our technical team is capable of performing various types of coating processes to meet different demand, including AR coating, HR coating, long pass coating, short pass coating , bandpass coating, anti-laser coating, waterproof coating, metal coating and conductive coating
In order to ensure highest standard quality of optical components, our company equipped with advanced testing equipment like ZYGO three-dimensional optical profilometer, laser interferometer, spectrophotometer UV-3600 and video measuring machines
The survice purpose of our company is the principle based on honesty, attention to quality, the pursuit of excellence, share value, we are willing to become your best suppliers of optical components in China.
