Product details
Single Crystal Silicon Window have highly ordered, with few impurities and excellent optical uniformity structure,primarily applicable to the infrared wavelength 1.2-7um, completely opaque in visible light, mechanical properties is high hardness, resistant to wear, commonly used thermal imaging, infrared spectrometer ,laser transmission etc.
As an observation window, used in vacum chambers or reaction chambers with high temperature resistance and corrosion esistance similar with sapphire window.
Silicon window also as high power laser window:low absorption rate in the infrared band, suitalbe for Co2 Laser,this point Znse window also suitable for this wavelength.
Main Properties
Transmission wavelength mainly 1.2-8um near infrared to mid infrared, 3-5um MWIR standard material
High hardenss and wear resistance, low density with excellent heat conductivity, suitable for military/vehicle equipment with high requirements for weight and wear resistance
Such optical windows often used for infrared temperature measurement, gas analysis, night vision devices, and research grade infrared optical systems.
Silicon window and Znse window are two completely different materials in infrared optics window.the key to the choice lies in the working wavelength and laser power.
Silicon window VS Znse Window
| Dimension | Monocrystalline silicon(Si) | Zinc Selendie (Znse) |
| Passing Band | 1.2-8um | 0.6-16um |
| CO2 laser application | not applicable( 10.6um absorption) | Preferred 10.6um high transparency |
| Refractive index | 3.42 ( high, high reflection loss) | 2.4( moderate) |
| Main advantage | high hardness, low density, and wear resistance | broad spectrum, low absorption, high laser damage threshold |
| Typical scenario | Mid-wave infrared(3-5um) protective window | CO2 laser, thermal imaging lens |

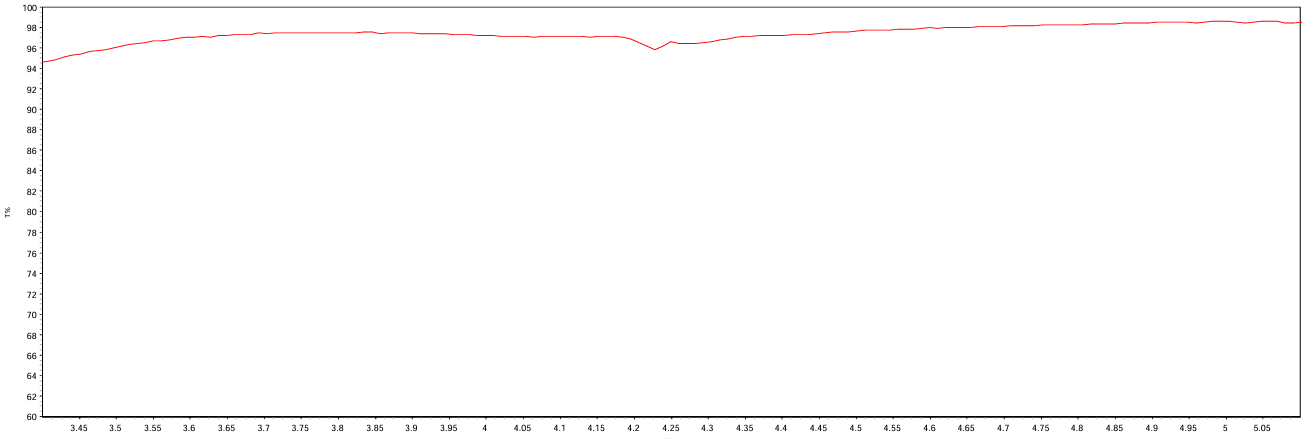

AR coating Silicon with 3-5um

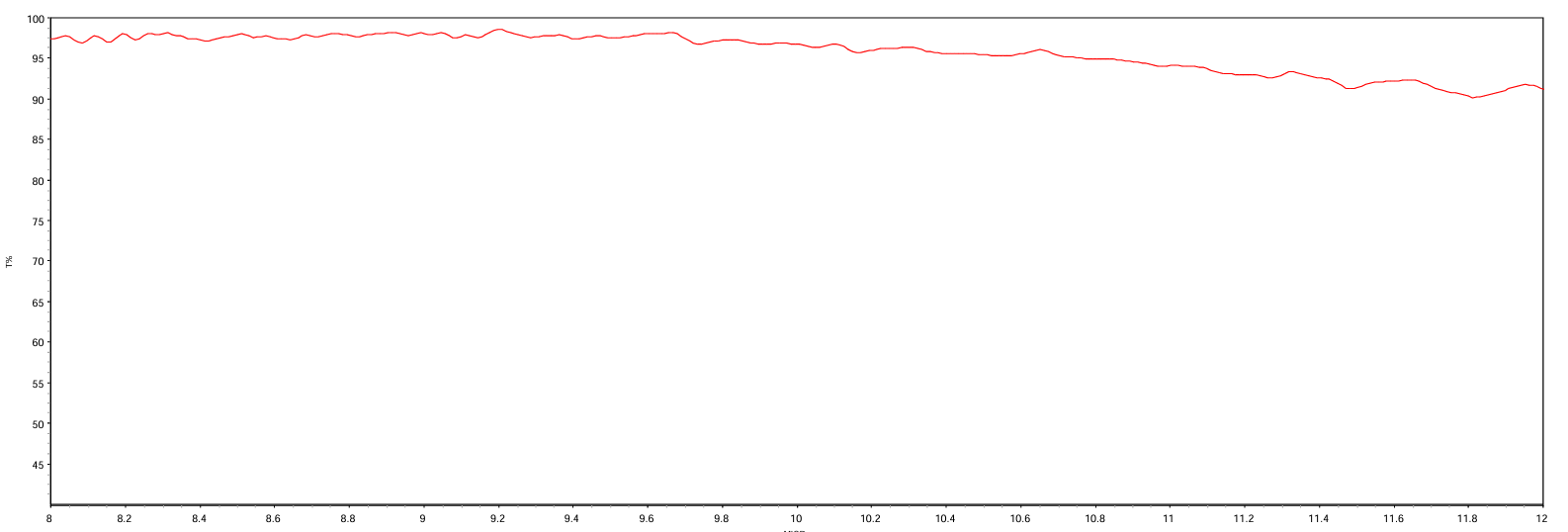

Znse window with 8-12um AR coating
Our company specializing in processing, production and sales of precision optical components, we specialize in optical component including Sapphire Windows, Spherical Lens, Optical Mirrors Optical Windows, Optical Prisms, Filters and Lasers.
We have a skilled optical engineer team which is expertised in processing optical components for over 10 years and have a completed production line of cutting, milling, grinding, polishing, coating, spray paint, and assembly.
The superior quality of product and our best service enable us to cooperate with more and more customers domestically and overseas.
Our product categories are listed as follows.
1.Laser optics, such as Laser focus lens, laser mirror applicable to laser cutting and engraving machines ect
2.Infrared optics, such as Sapphire Window, CaF2 Window, BaF2 Window, MgF2 Window, ZnS window, Znse window, Silicon window, IRG205, IRG206, IRG207 ect
3.Optical glass components, such as Spherical Lens, achromatic lenses doublet, ball lens, collimator lens, corner cube prism, optical lens, right angle prism ,ATR prism ect
4.Optical Mirrors, Dielectric Mirror, Spherical Concave or Convex Mirror, Off- Axis Parabolic Mirrors coating including Silver, Gold, Aluminum, Cooper, Nickel etc.
Besides, we also specialized in manufacturing large size prism, such as Periscope prism, Beamsplitter(Cube, Plate).
We have advanced coating machines and related equipment such as ultrasonic cleaning devices. our technical team is capable of performing various types of coating processes to meet different demand, including AR coating, HR coating, long pass coating, short pass coating , bandpass coating, anti-laser coating, waterproof coating, metal coating and conductive coating
In order to ensure highest standard quality of optical components, our company equipped with advanced testing equipment like ZYGO three-dimensional optical profilometer, laser interferometer, spectrophotometer UV-3600 and video measuring machines
The survice purpose of our company is the principle based on honesty, attention to quality, the pursuit of excellence, share value, we are willing to become your best suppliers of optical components in China.
