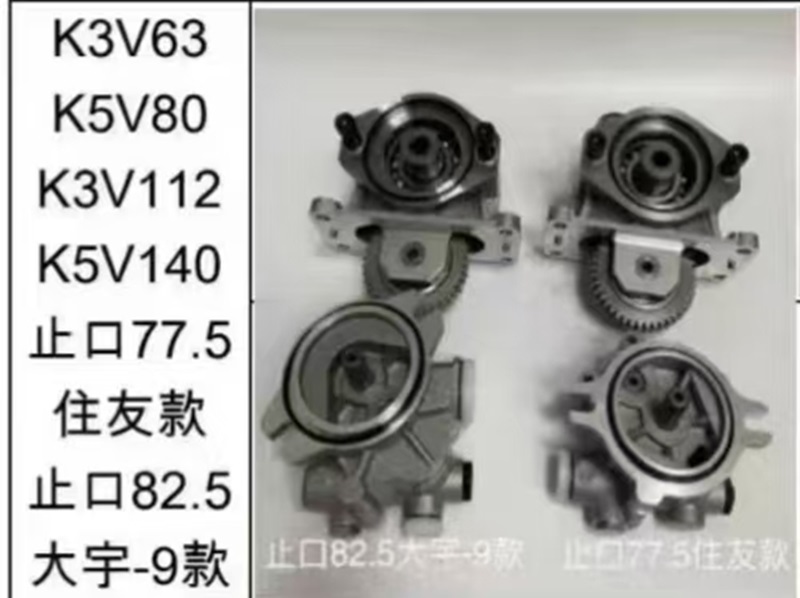

Wheel Excavator Series PTO Gearbox Assembly

3 day ago

0 0 

3 year

Product details

Wheel Excavator Series PTO Gearbox Assembly: Technical Overview

ThePTO (Power Take-Off) Gearbox Assemblyis a critical component in wheel excavators, enabling the transfer of engine power to auxiliary hydraulic systems or mechanical attachments. Below is a structured breakdown of its key aspects:

------

1. Core Functionality

• Purpose: Transmits rotational power from the excavator’s engine/transmission to auxiliary equipment (e.g., hydraulic pumps, winches, breakers, augers).

• Role in Wheel Excavators:

• Unlike tracked excavators, wheel excavators require compact, high-efficiency PTO systems due to space constraints and mobility demands.

• The PTO gearbox allows simultaneous operation of the main excavator functions (e.g., boom, bucket) and auxiliary tools.

------

2. Key Technical Specifications

【表格】

Component Description & Specs

Input Power Typically 50–300 kW (depending on excavator size, e.g., 15–30 tons).

Gear Ratios 1:1, 1.5:1, or custom ratios to match auxiliary equipment torque requirements.

Mounting Type Flange-mounted (SAE or ISO standards) or direct-drive to transmission output shaft.

Output Shaft Splined or keyed shaft with a torque capacity of 5,000–15,000 Nm (varies by model).

Lubrication Forced-feed or splash lubrication with oil coolers for high-duty cycles.

Sealing Double-lip seals or labyrinth seals to prevent dust/water ingress (IP67+ rated).

Weight 50–200 kg (depending on power rating and construction).

------

3. Design Features for Wheel Excavators

• Compactness:

• Shorter axial length compared to tracked excavator PTOs to fit wheel excavator chassis.

• Example: A 20-ton wheel excavator PTO may be 30% shorter than a similar tracked unit.

• Vibration Resistance:

• Reinforced housing and damped bearings to withstand road-travel vibrations (unlike stationary tracked machines).

• Thermal Management:

• Integrated oil coolers or heat exchangers to handle high-temperature operation (e.g., continuous use of hydraulic breakers).

------

4. Common Applications

【表格】

Auxiliary Equipment PTO Requirement Example Use Case

Hydraulic Pump High-speed, low-torque (1:1 ratio) Running a rock drill attachment.

Winch Medium-speed, medium-torque (1.5:1 ratio) Towing operations or material handling.

Rotary Cutter Low-speed, high-torque (2:1 ratio) Land clearing or road maintenance.

Concrete Mixer Continuous-duty, variable-speed (via clutch) On-site mixing for construction projects.

------

5. Maintenance & Reliability

• Critical Checks:

• Oil level/quality (every 250 hours).

• Shaft runout and coupling alignment (annually).

• Seal integrity (replace if leaks occur).

• Failure Modes:

• Overheating: Caused by blocked coolers or contaminated oil.

• Gear Wear: Due to misalignment or excessive torque spikes.

• Seal Failure: Common in dusty environments (e.g., mining sites).

• Lifespan: 5,000–10,000 hours with proper maintenance (similar to final drives in wheel excavators).
