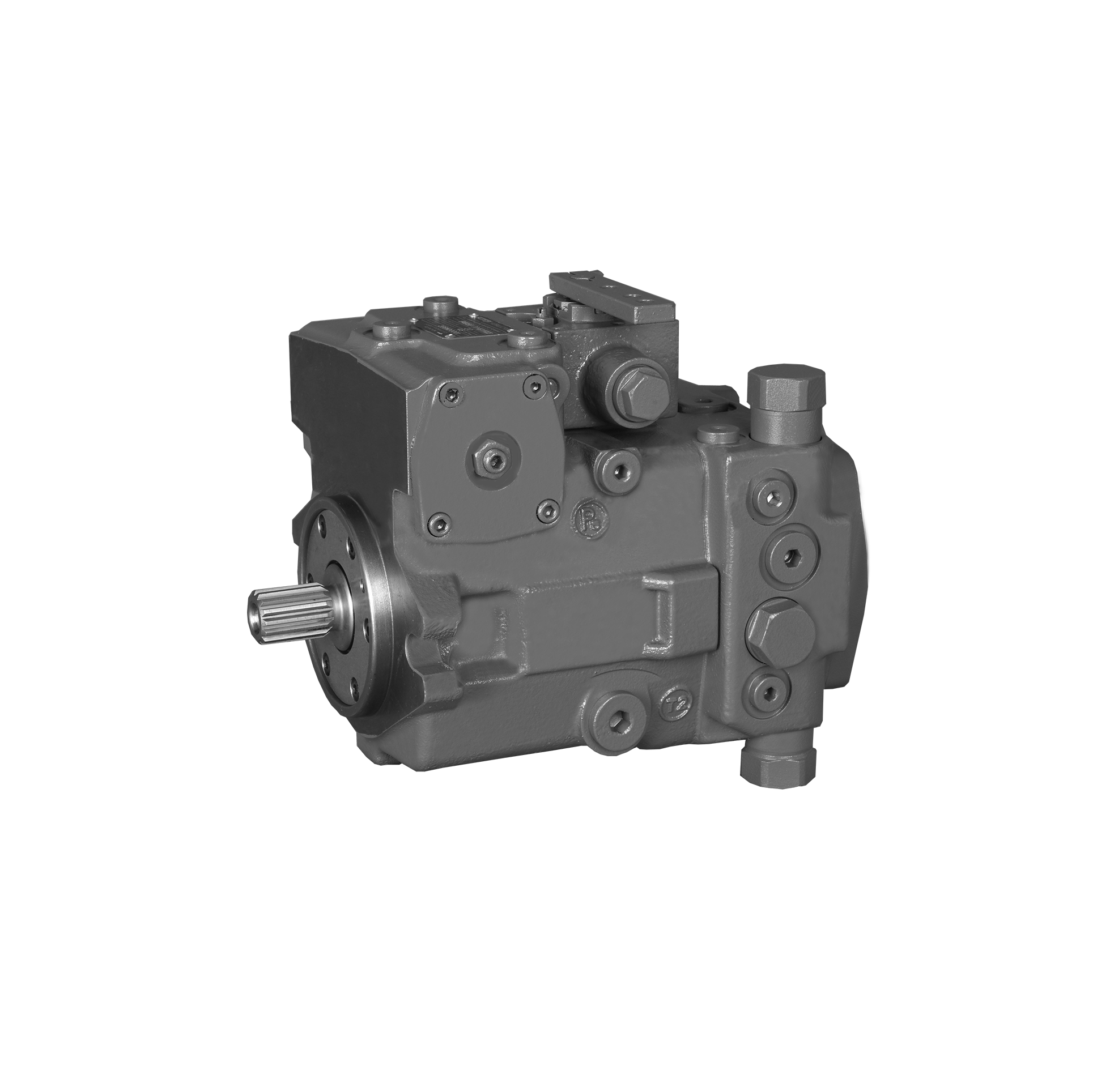

A4VTG Series Variable Displacement Piston Pump

3 week ago

0 0 

3 year

Product details

I. Product Overview

TheA4VTG Series Variable Displacement Axial Piston Pumpis a swashplate-designed pump primarily used in closed-loop hydrostatic transmission systems. It is widely applied in mobile concrete mixers, tractors, construction machinery, metallurgical equipment, mining machinery, marine vessels, forging presses, and other industrial sectors.

------

II. Core Features

1. Flow Adjustment

• Flow rate is proportional to drive speed and displacement.

• Smooth flow increase from zero to maximum via swashplate angle adjustment.

• Seamless flow direction reversal when the swashplate passes through the neutral position.

2. Pressure Protection

• Two pressure relief valves are installed at the high-pressure port to prevent overload in hydrostatic systems (pump and motor).

• The high-pressure relief valve doubles as a charge pressure valve.

3. Integrated Charge Pump

• Serves as both a feed pump and control pressure source.

• Maximum charge pressure is limited by a built-in charge pressure relief valve.

4. Control Options

• HW: Hydraulic proportional control with mechanical servo and rear lever (hexagonal shaft).

• EP: Electric proportional control with emergency manual override and spring return.

------

III. Technical Specifications

• Model Examples: A4VTG71, A4VTG90

• Displacement:

• A4VTG71: 71 cm³/rev

• A4VTG90: 90 cm³/rev

• Pressure Ratings:

• Rated Pressure: 5,800 psi (400 bar)

• Maximum Pressure: 6,500 psi (450 bar)

• Speed Ratings:

• Maximum Continuous Speed:

• A4VTG71: 3,300 rpm

• A4VTG90: 3,050 rpm

• Maximum Limited Speed:

• A4VTG71: 3,600 rpm

• A4VTG90: 3,300 rpm

• Intermittent Maximum Speed:

• A4VTG71: 4,100 rpm

• A4VTG90: 3,800 rpm

• Minimum Speed: 500 rpm

• Flow Rates:

• Continuous Flow (Max Displacement):

• A4VTG71: 234 l/min

• A4VTG90: 275 l/min

• Power Ratings:

• Continuous Power (400 bar):

• A4VTG71: 156 kW

• A4VTG90: 183 kW

• Torque Ratings:

• At Max Displacement (400 bar):

• A4VTG71: 451 Nm

• A4VTG90: 572 Nm

• At 100 bar:

• A4VTG71: 112.8 Nm

• A4VTG90: 143 Nm

• Physical Dimensions:

• Packaging Size: 40.00 cm × 50.00 cm × 60.00 cm

• Gross Weight: 45.00 kg (A4VTG71), 8,000.00 kg (bulk)

------

IV. Applications

1. Mobile Concrete Mixers

• Drives the mixing drum with precise flow and direction control.

2. Construction & Engineering Machinery

• Suitable for hydraulic systems requiring variable displacement and high pressure.

3. Other Industries

• Metallurgy, mining, marine vessels, forging presses, and hydrostatic transmission systems.

------

V. Advantages

• Energy Efficiency: Matches flow to load demands, reducing energy waste.

• Precision Control: Supports hydraulic and electric proportional control for complex operating conditions.

• High Reliability: Integrated pressure protection and charge functions extend system lifespan.

• Versatility: Designed for closed-loop systems, supporting high-pressure and variable-speed applications.
