Product details

160mm Plastic PVC CPVC Pipe Making Machine

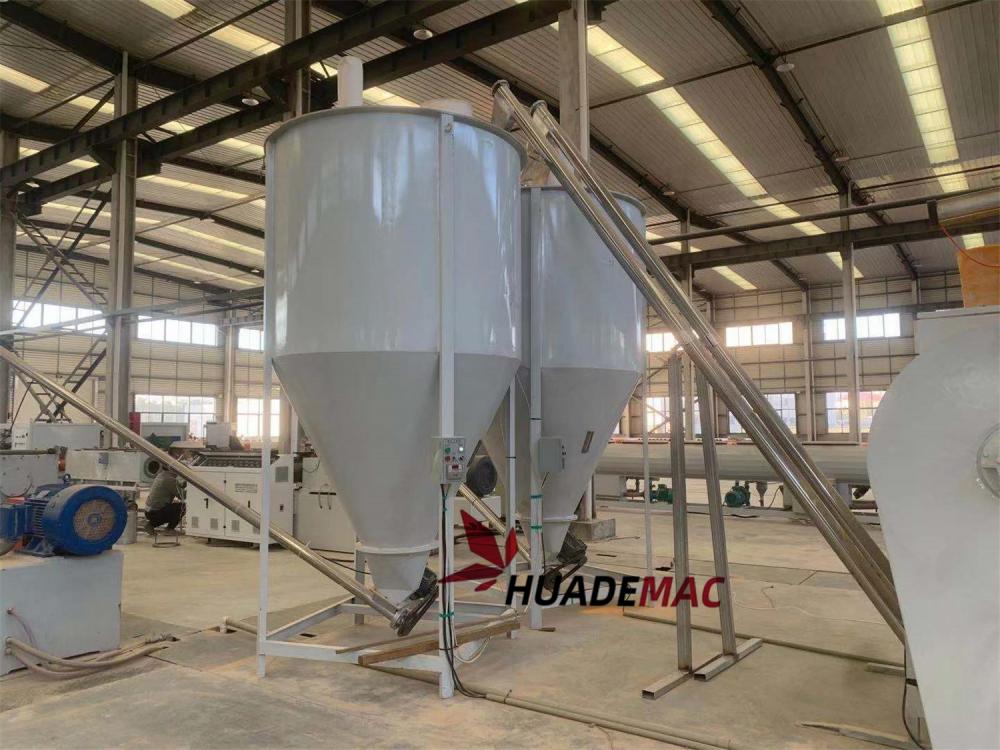

Feeder	• To feed material into extruder

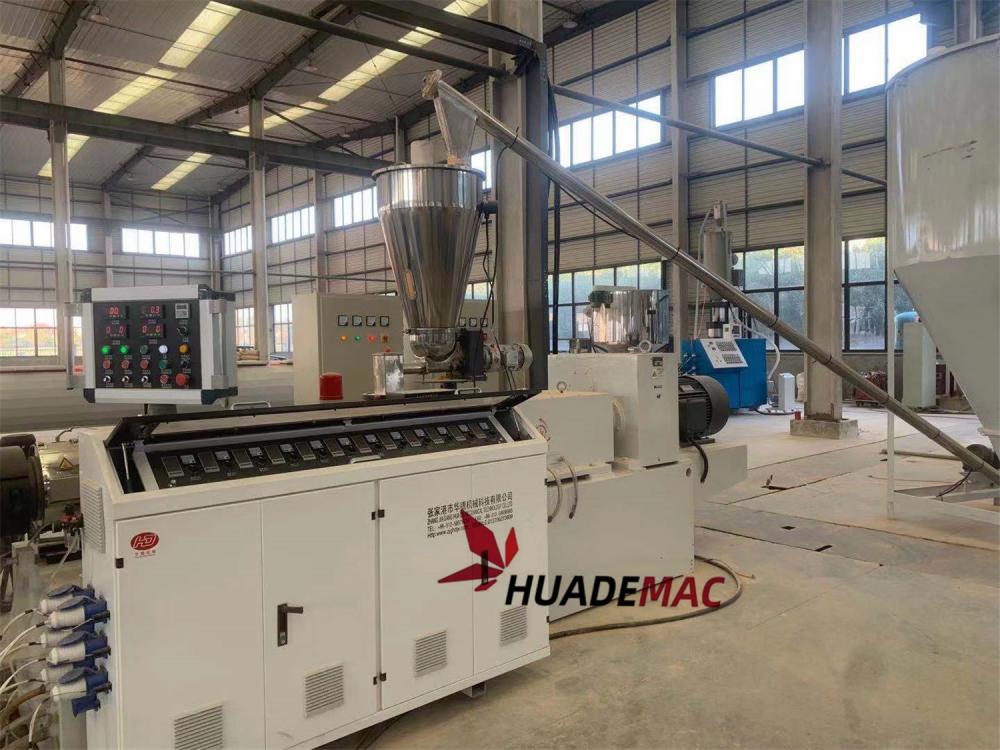

Extruder	• World famous brand electrical component such as Siemens, Schneider, ABB etc •High torque gearbox with adopts NSK/SKF bearing; •Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 40Cr material •Complete set include extrusion die head, Slotting & water ring type calibration sleeve • Apply to PVC single,dual,Four cavity extrusion.
Vacuum calibration tank	• Include full set of vacuum and water pump • length 9000mm

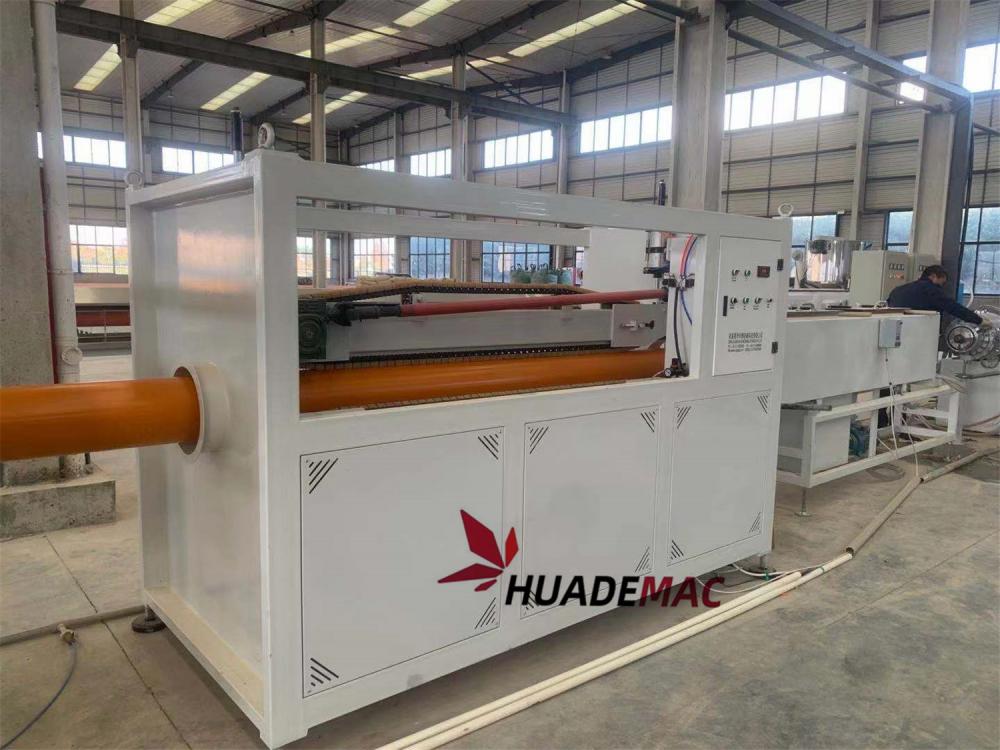

Haul off	• Upper and lower caterpillar is driven separately by the frequency inverter

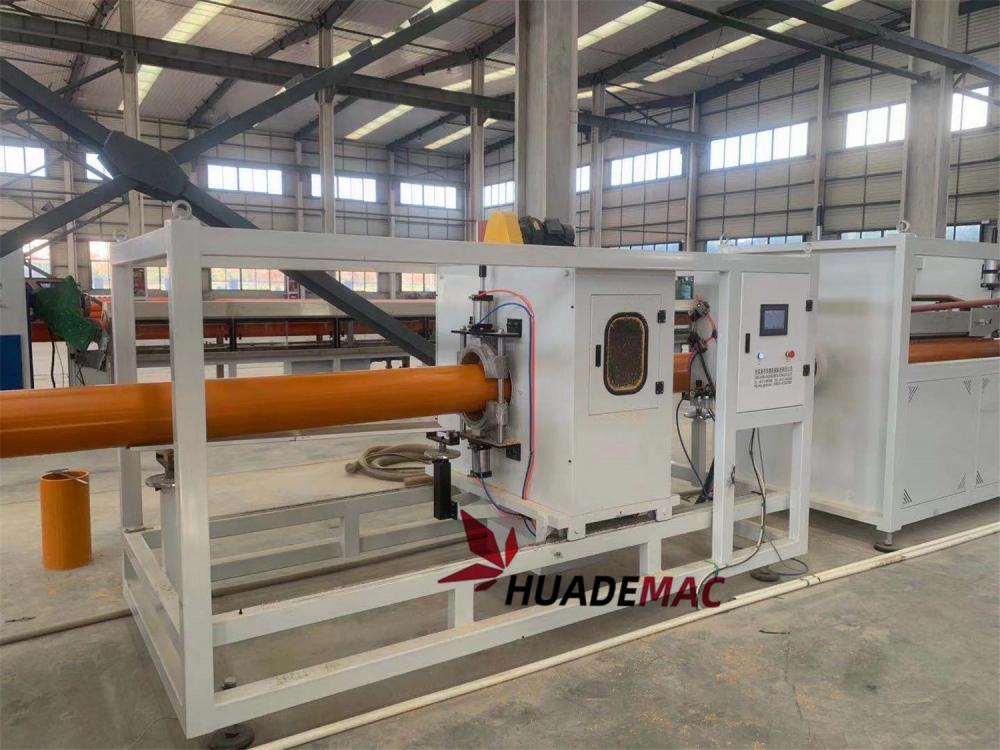

Planetary Saw Cutter	• Planetary saw cutter:enter knife by hydraulic drive • Cutting saw: steel alloy, specific for cutting U-PVC pipe. • Equipped cast aluminum compacted block for accurate cutting • Synchronous control

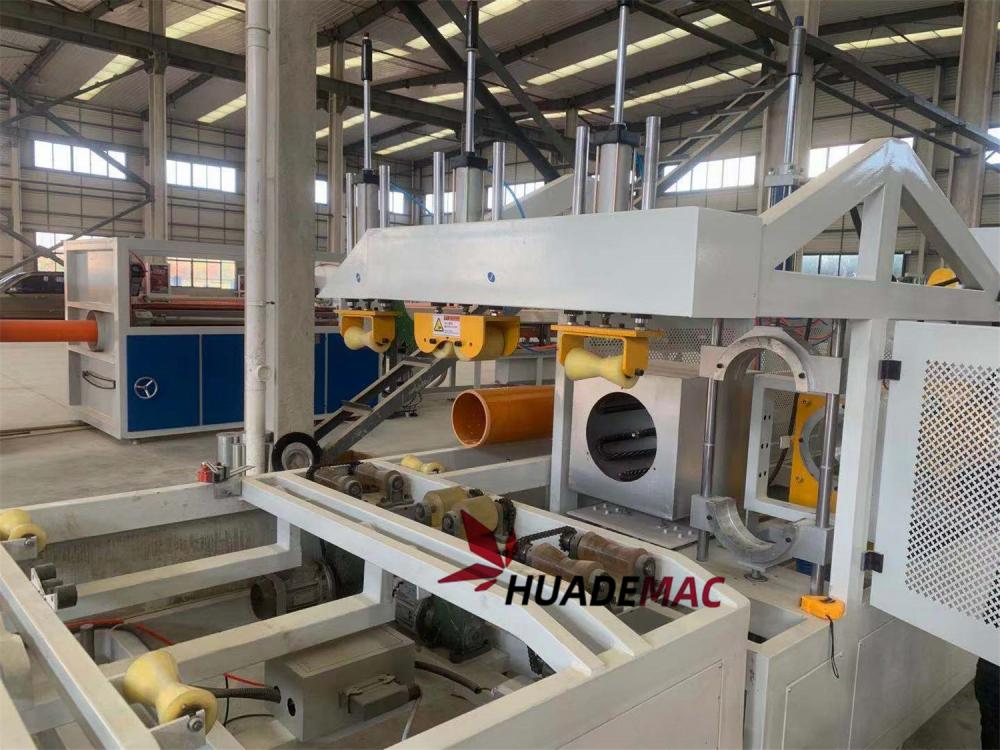

Belling machine	• Blow type: internal air blow and external mould compacted calibration, make U, R and Z type sockets; • Siemens PLC controlling:Automation& Remote Function: for centralized Controlling
Tipping table	•Stainless steel 304 as touching material •Discharge driving by air cylinder

It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.

Saw cutter and planetary cutter for choice
Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
Conical twin screw extruder and parallel twin screw extruder for choice
Double-strand and four-strand for choice for small pipes.

Processing flow of 160mm Plastic PVC CPVC Pipe Making Machine:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator

→ vacuum forming machine → haul off machine → cutting machine → discharging rack

Application

160mm Plastic PVC CPVC Pipe Making Machine photos

2 1

5 2

Final Products

Packaging

Exhibition
