PVC 50-200 pipe making machinery
3 year ago

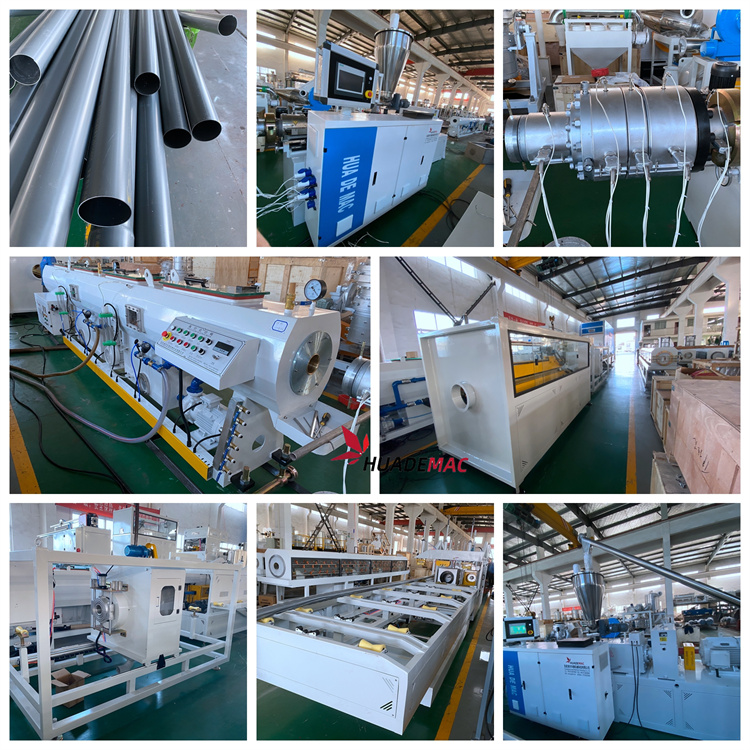

PVC plumbing pipe extrusion line
Diameter Range (mm): 63 75 90 110 140 160 200
Main Extruder Motor Power: 37kw
Total length: 38m
Capacity: 200-250kg/h
wall thickness:by request
SJ65/132 Extruder
• Capacity: 200-250kgs/h
• Motor power: 37kW
• Material of screw & Barrel: 38CrMoAl & Bimetallic
Die-head
• 40Cr material
• Size :50 63 75 90 110 160 200mm
•Complete set include extrusion die
head, Slotting & water ring type calibration sleeve
Vacuum Sizing Box
• 4kw water pump and 4kw vacuum pump
• length 6000mm
Haul-off Machine
• Upper and lower caterpillar is driven separately by the frequency inverter
•High friction fact and anti-wear out silicon rubber Pads
• Metering counter device
Planetary Cutter
• Planetary saw cutter enter knife by hydraulic drive
• Cutting saw: steel alloy, specific for cutting U-PVC pipe.
• Equipped cast aluminum compacted block for accurate cutting
• Synchronous control
